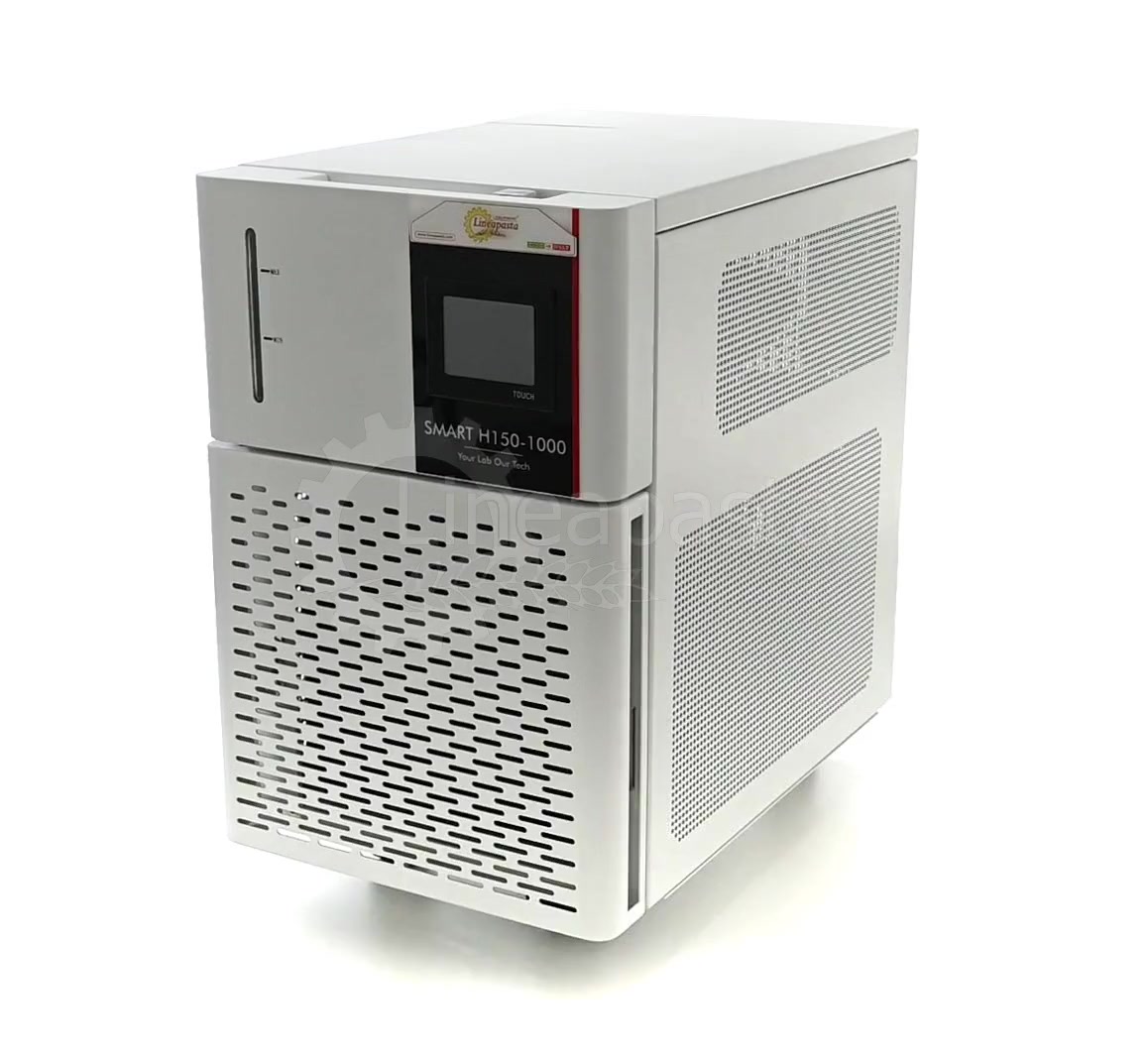

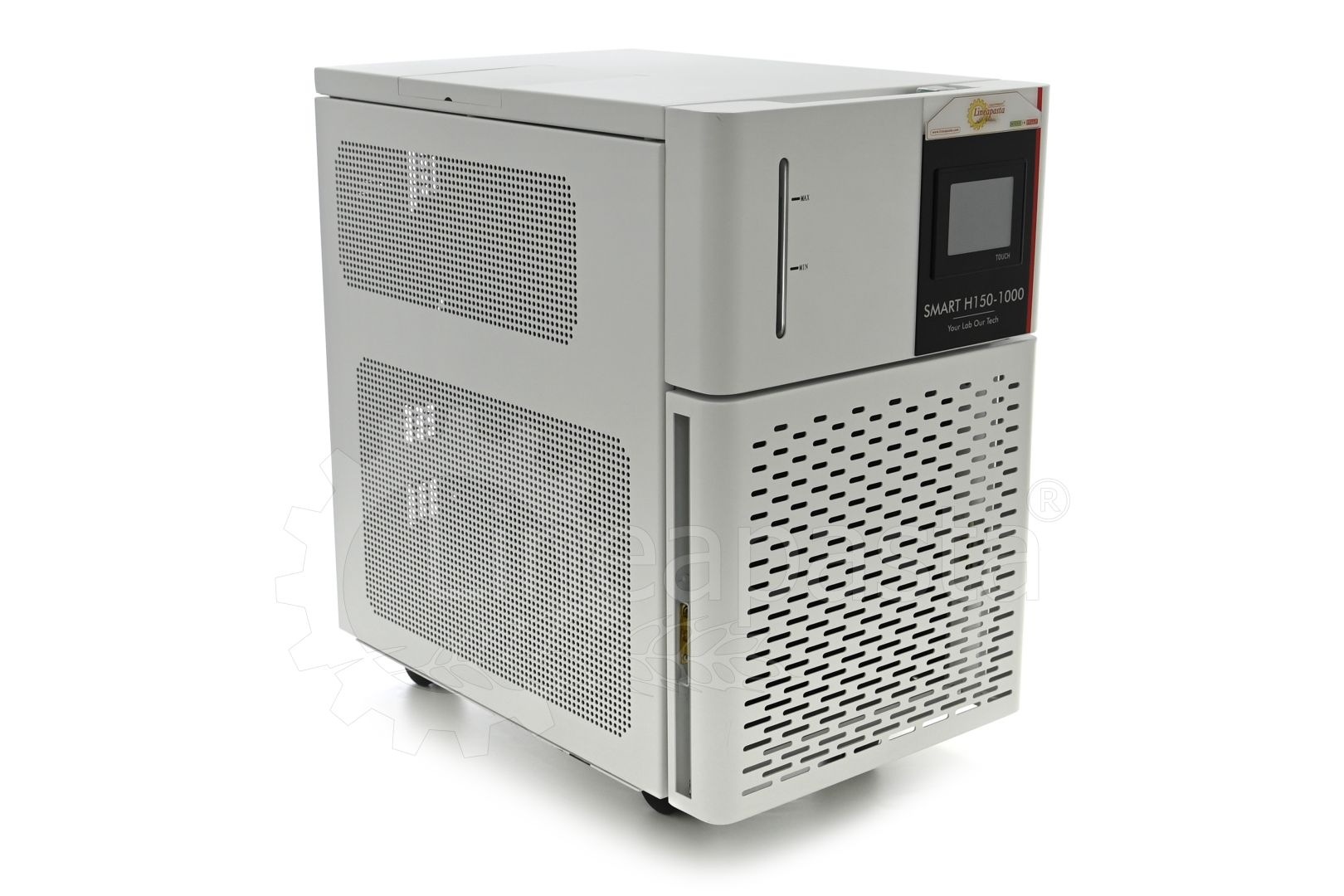

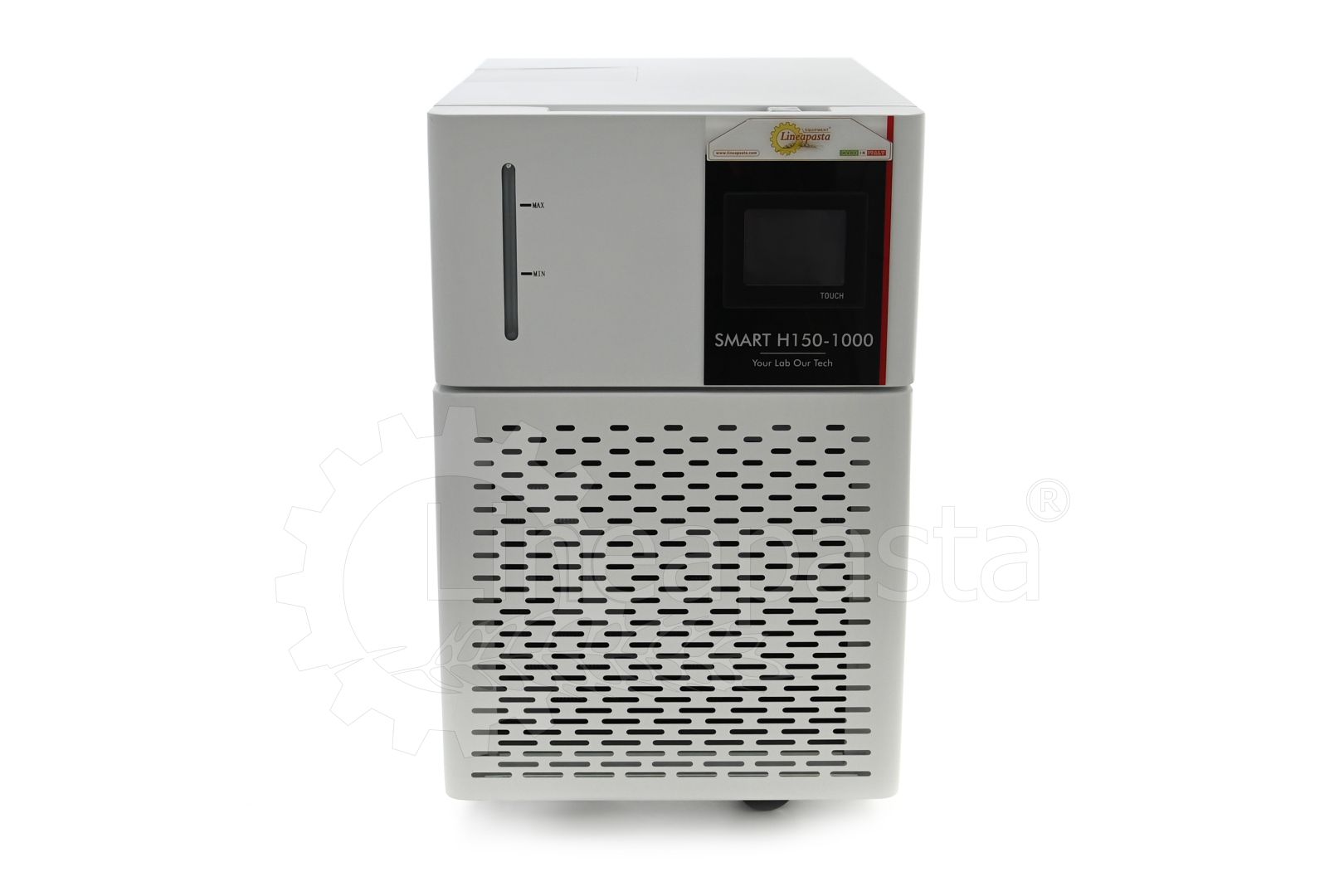

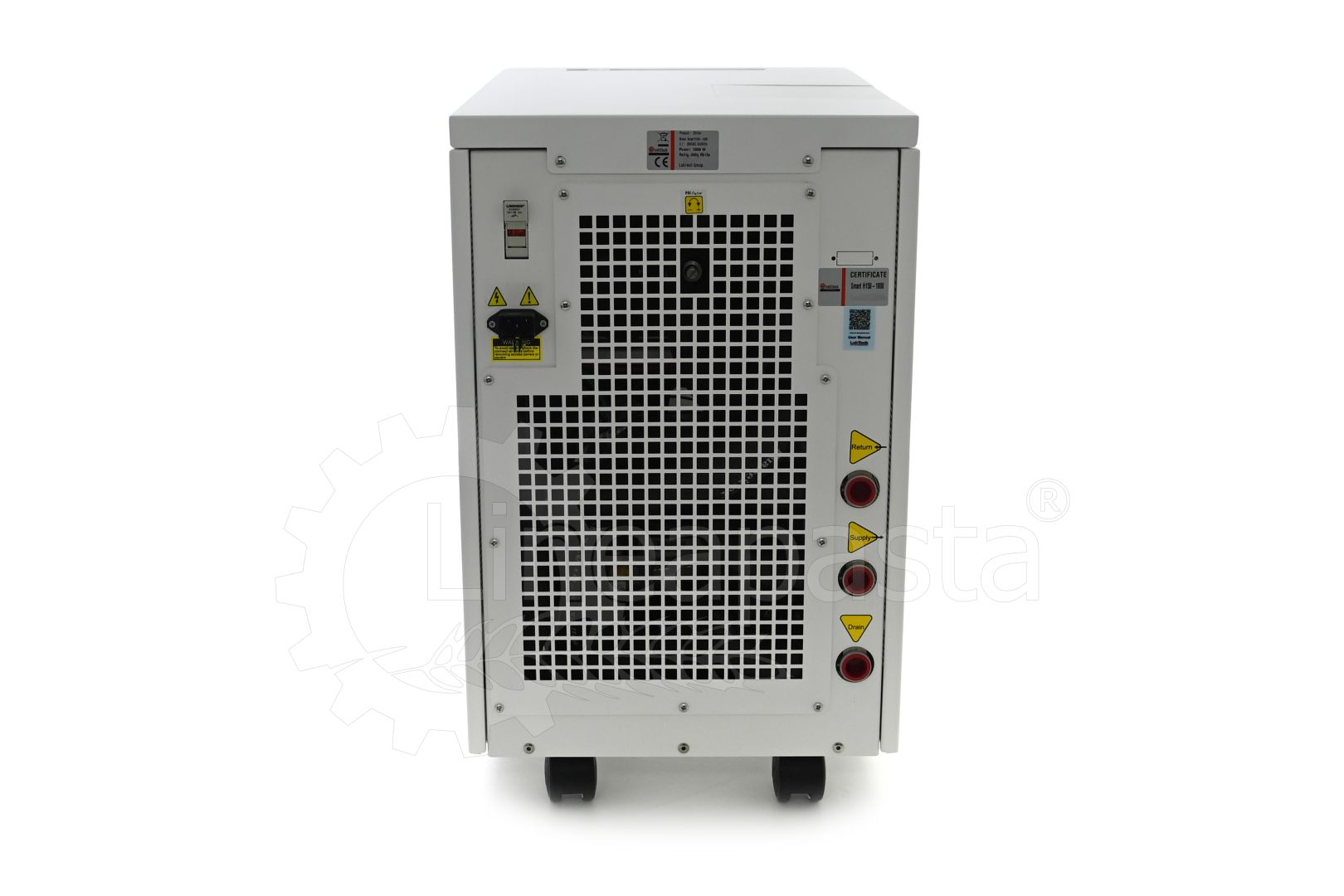

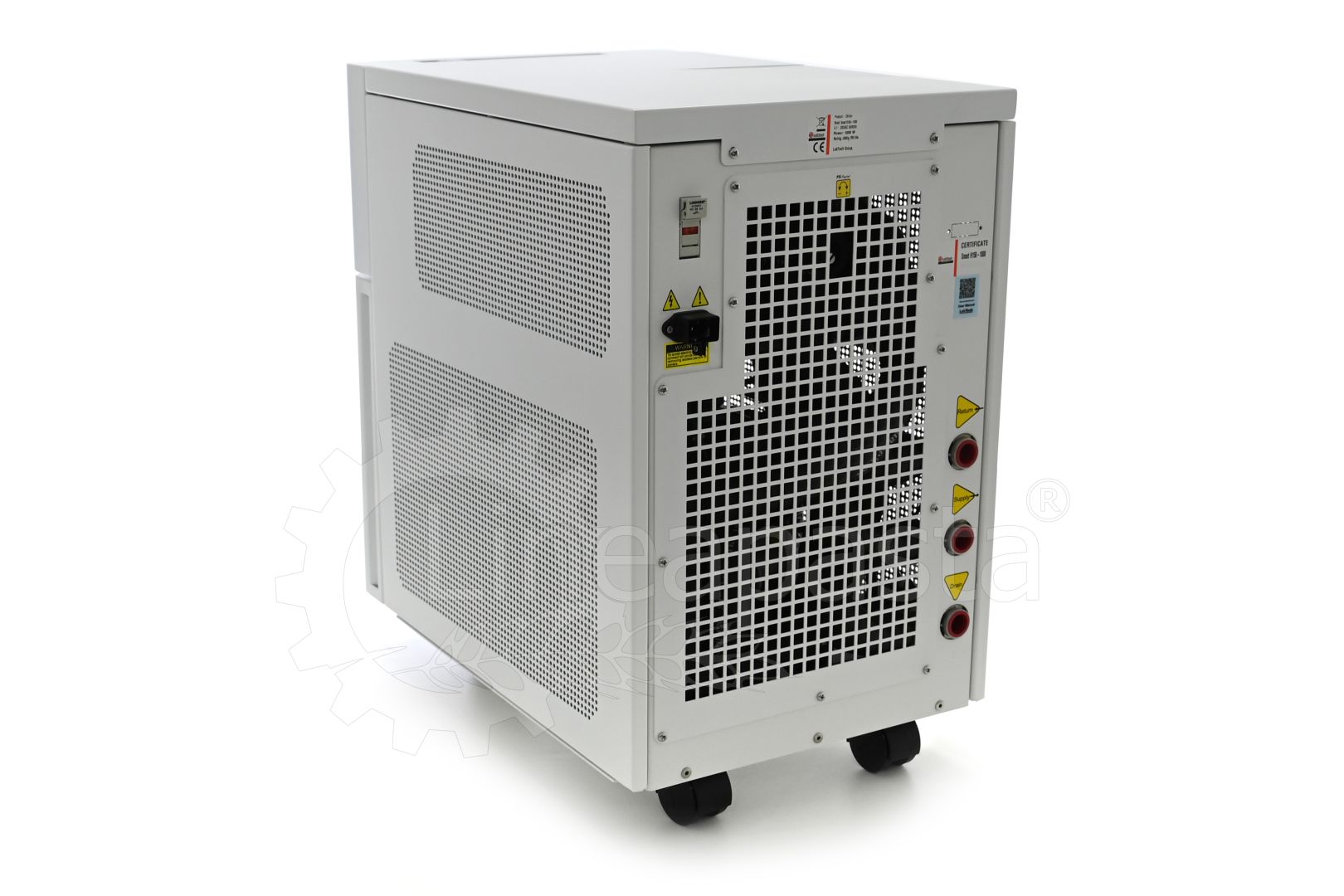

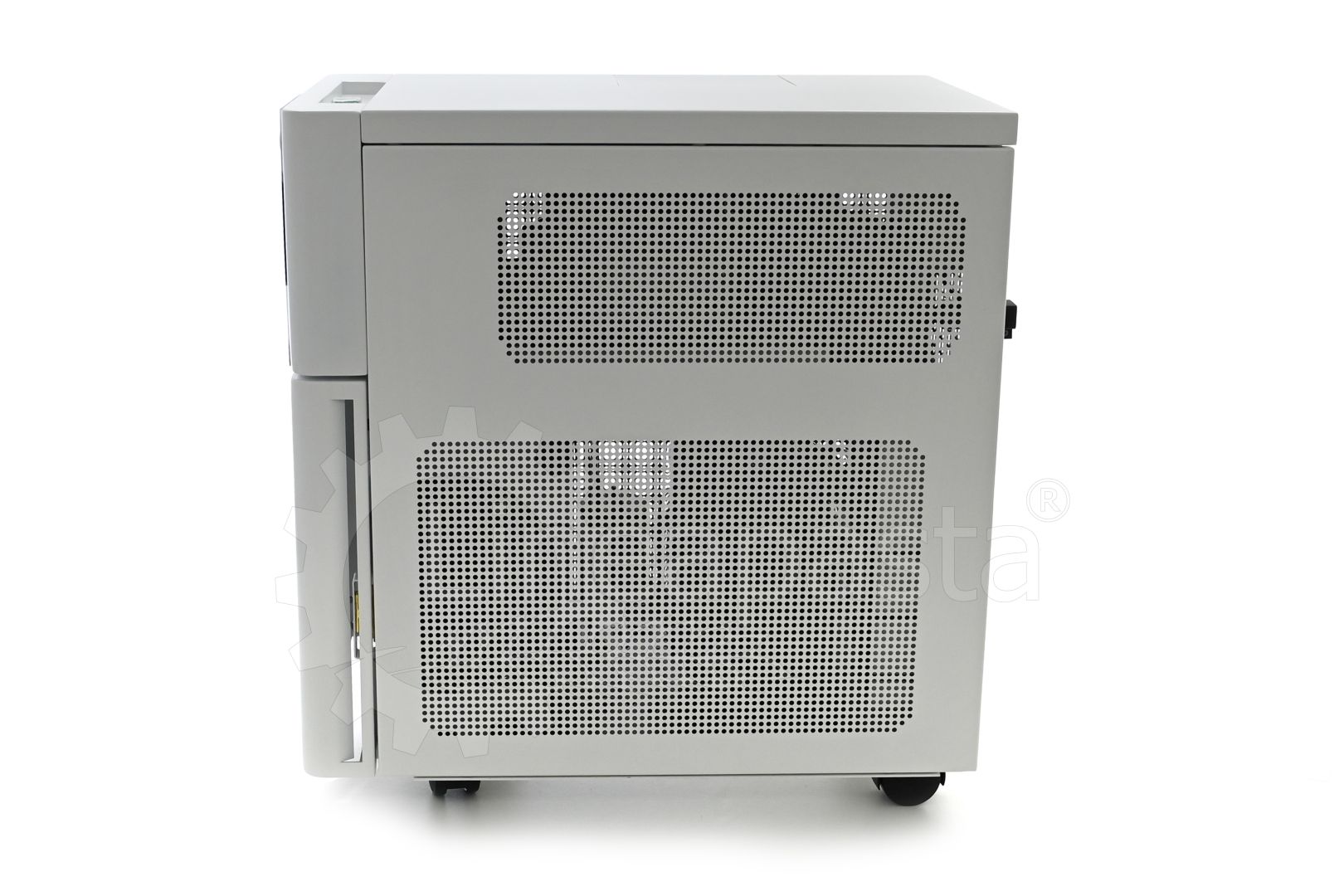

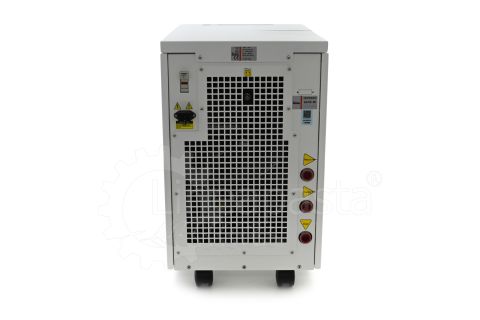

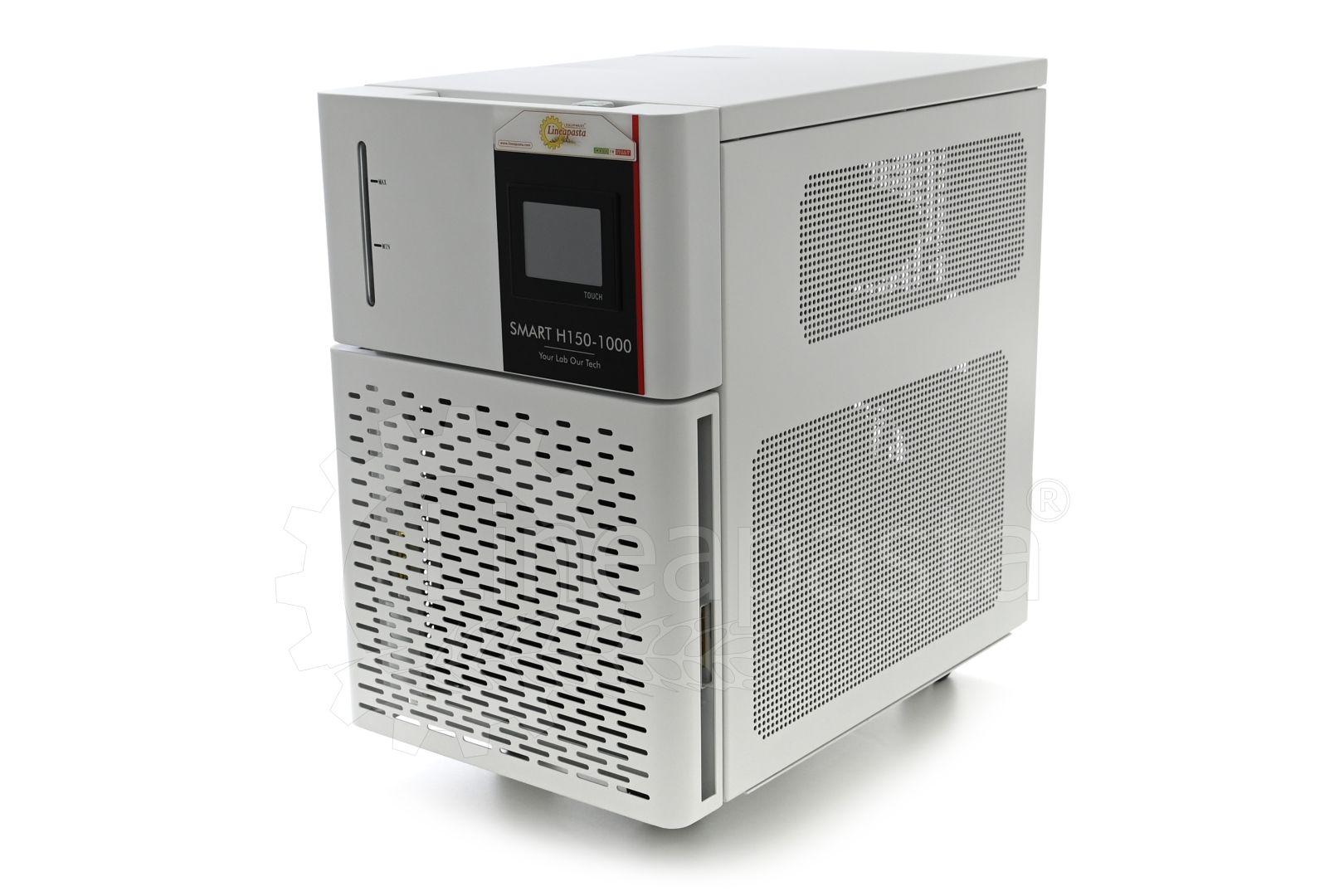

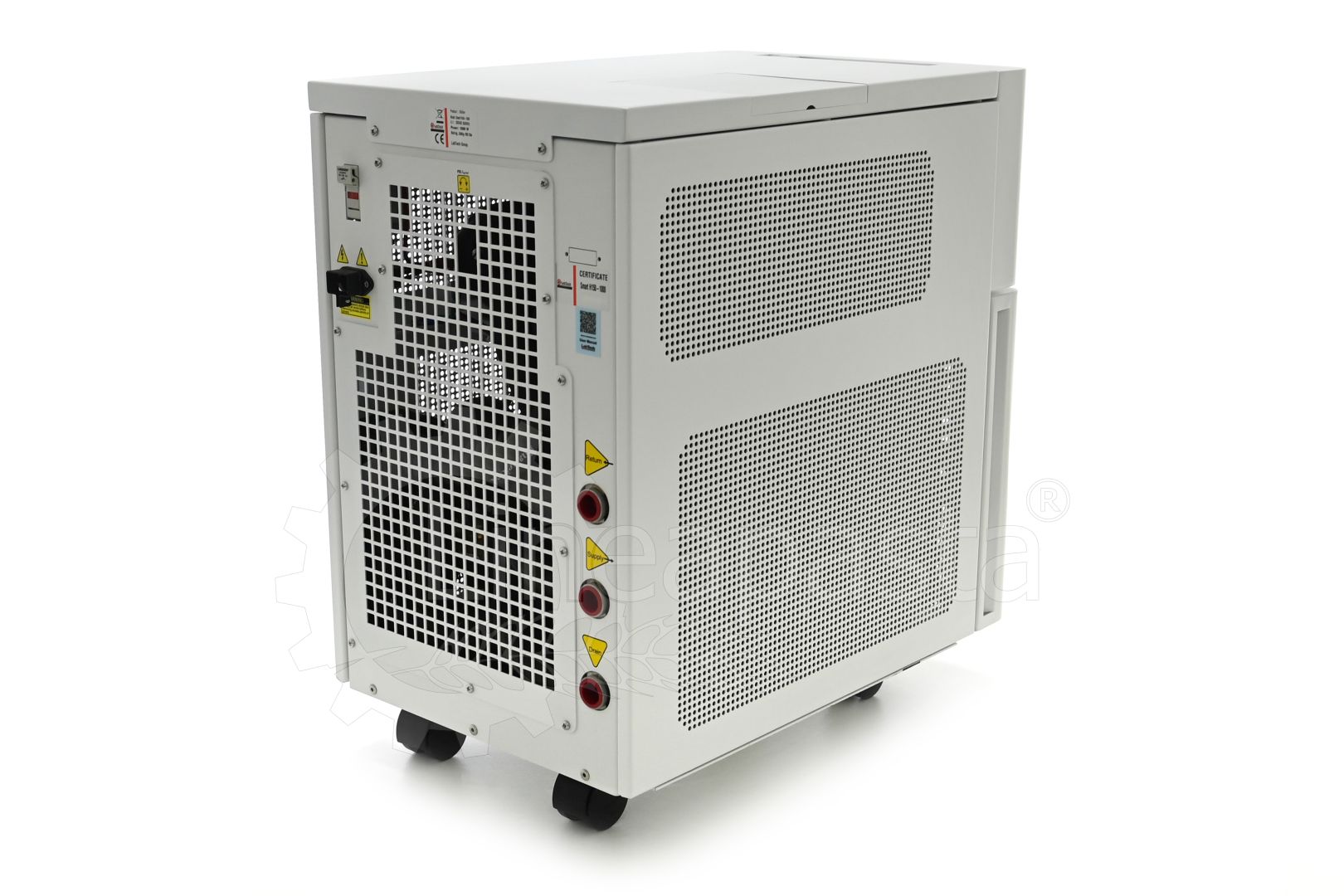

Closed circuit chiller for pasta machines H150-1000N - Labtech

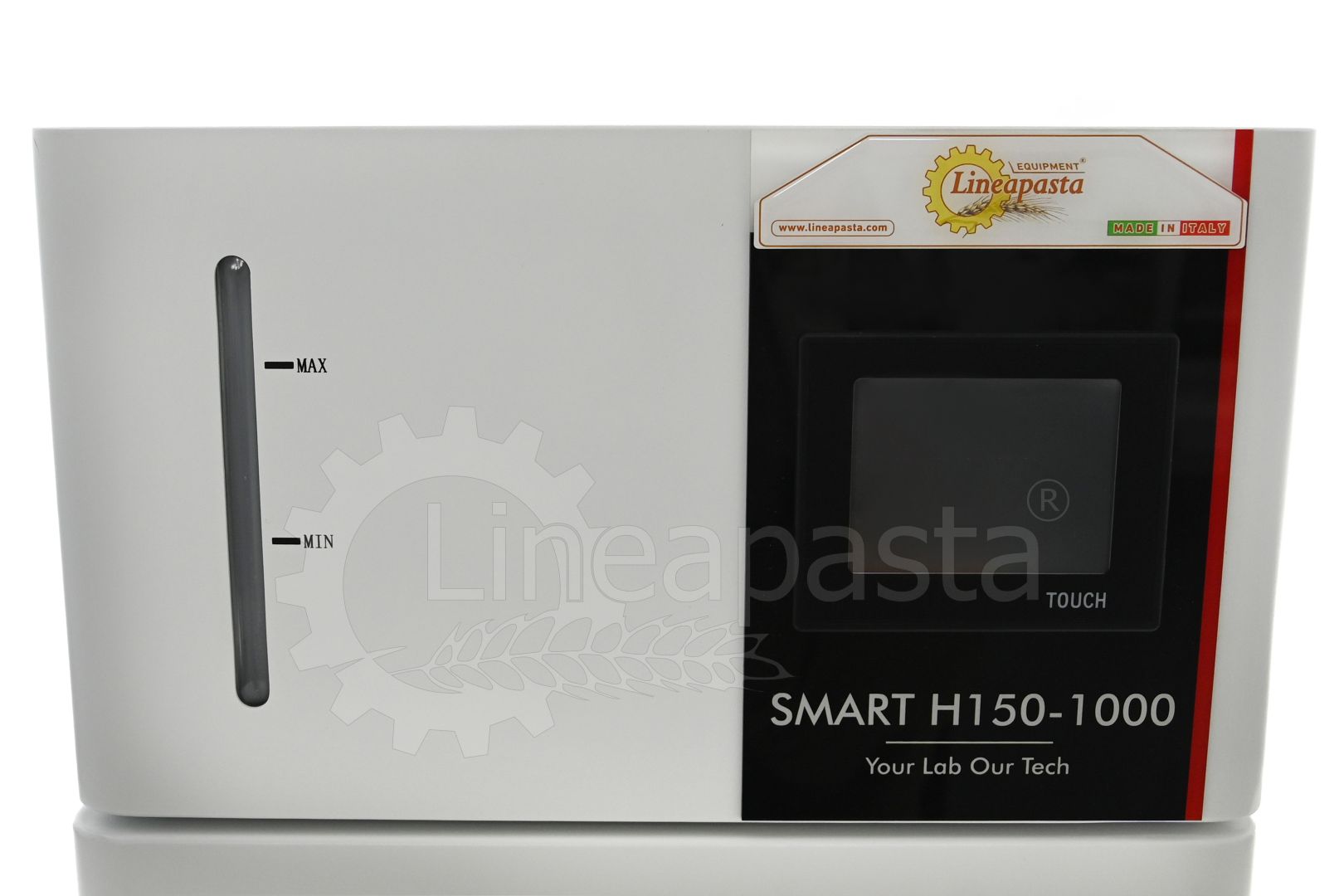

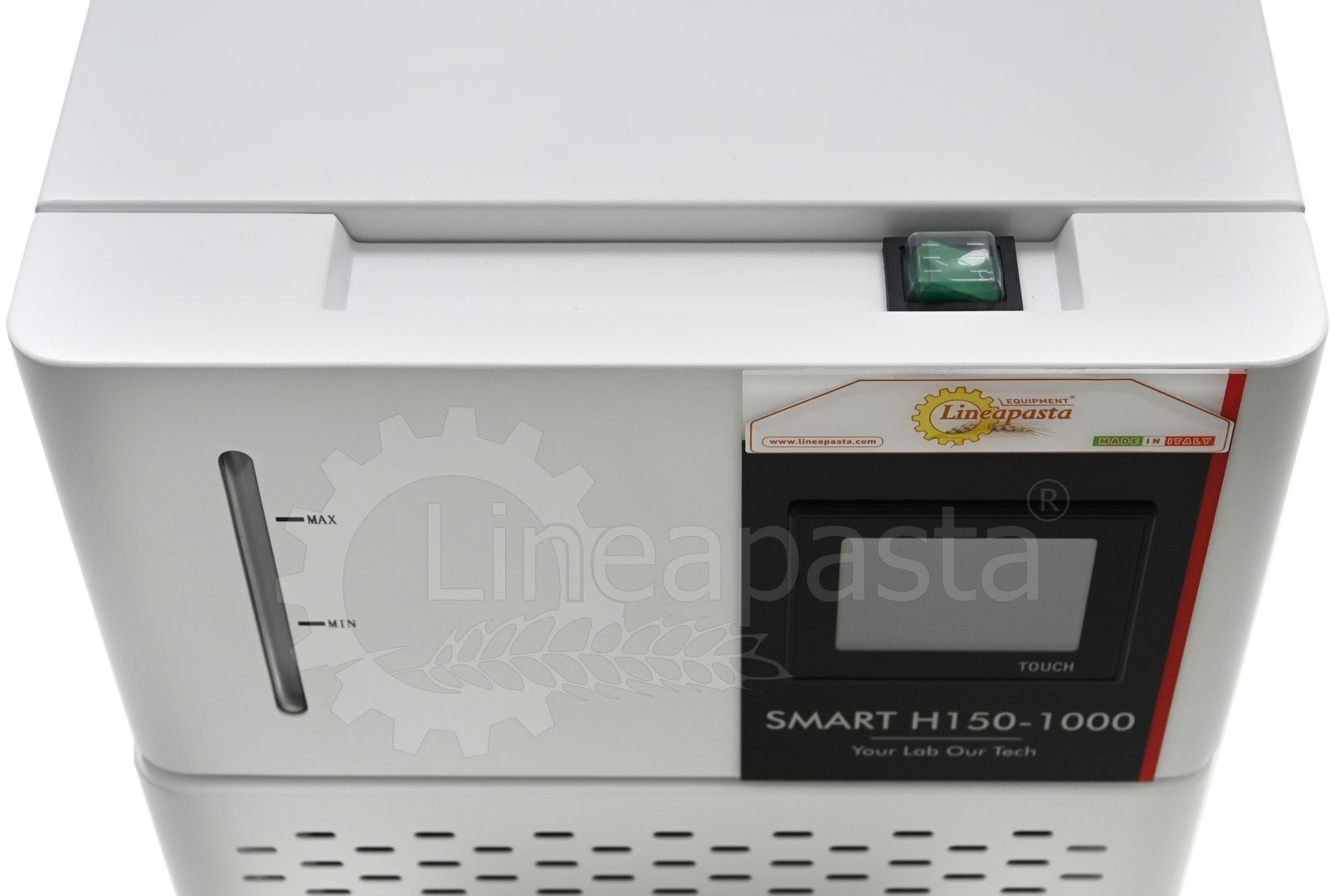

The H150-1000N closed-loop chiller enables the cooling of water entering the extrusion cylinder of machines prepared for the installation of a cooling system. The device will save in water consumption and, by creating a continuous flow of cooled water to the machine cylinder, make the extrusion operation more homogeneous, preventing the overheating of the die. Using semiconductor refrigeration technology, the chiller is extremely lightweight and offers a cooling power of 1000 W. The Labtech water chiller is a state-of-the-art product that ensures homogeneous and consistent cooling conditions; it is also conceived and designed to minimize the noise during operation thanks to the absence of a compressor. In addition to offering an excellent level of quietness, the chiller offers excellent robustness while retaining great portability and compactness. It is also reliable, user-friendly, and has an excellent price/performance ratio. The water outlet temperature ranges from +8º C to +35º C with an accuracy of ±0.1º C and can be controlled through the bright color LCD touch screen display. The system is equipped with an alarm device that constantly monitors the temperature and water level inside the 2.5-liter tank to ensure maximum safety and reliability during use.

Recommended for machines from about 20 kg/h to 50 kg/h.


TECHNICAL DATA:

- Model: LW1000N

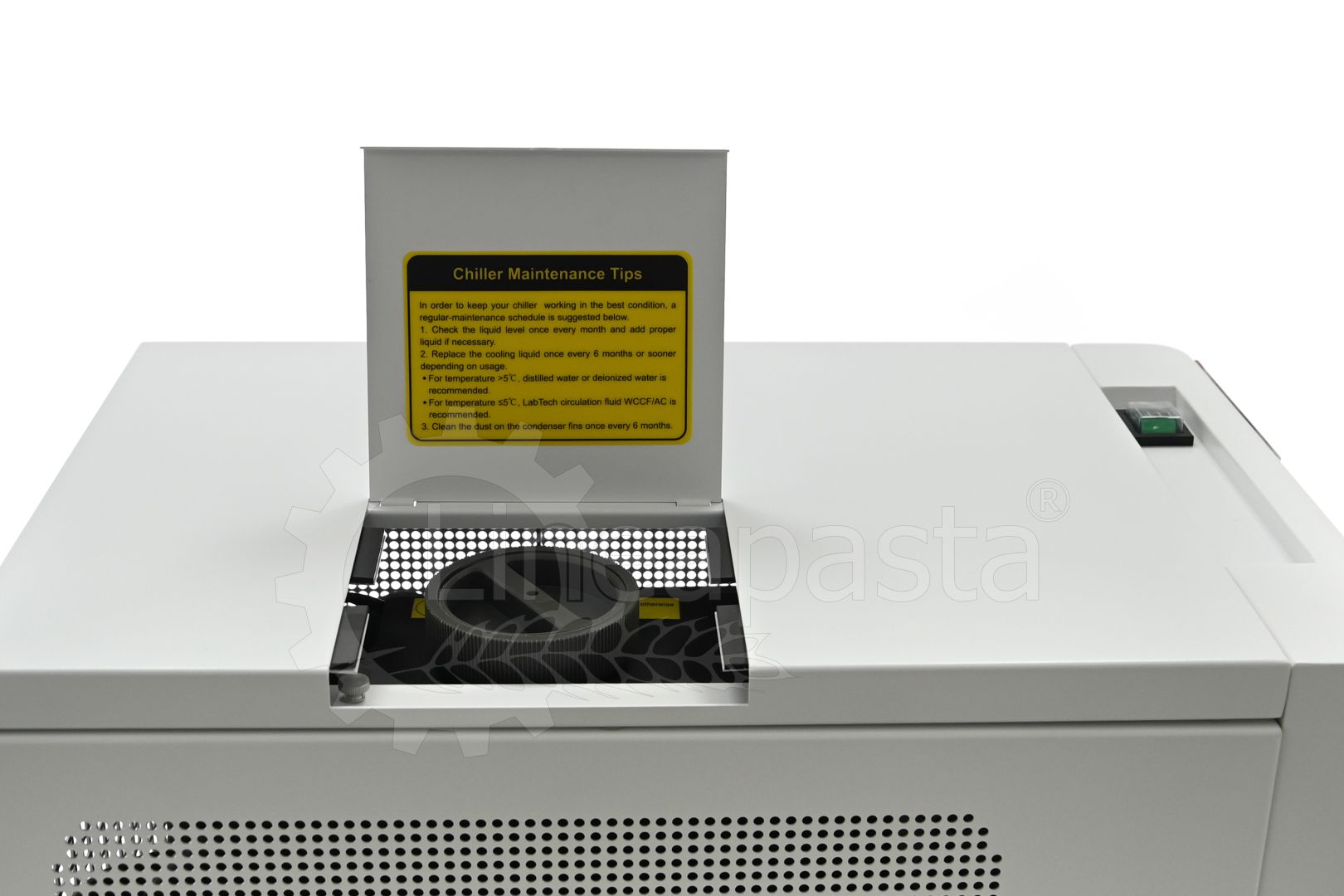

- Liquid tank capacity: 2,5 liters
- Temperature range: +8 °C ~ +35 °C
- Temperature stability: ±0.1 °C
- Cooling capacity: 1000 W @ 25 °C
- Refrigerant: R513A
- Pump power: 120 W
- Pump capacity: 5L/min @ 60psi
- Single phase power supply
- Motor voltage: 220V/50-60Hz 1Ph
- Dimensions: cm 56x36x58h
- Package dimensions: cm 77x49x82h
- Net weight: 52 kg
- Gross weight: 63 kg
