Automatic ravioli machine mod. RPX

•
•
•
•
•
•
•
•
• Included recipe book

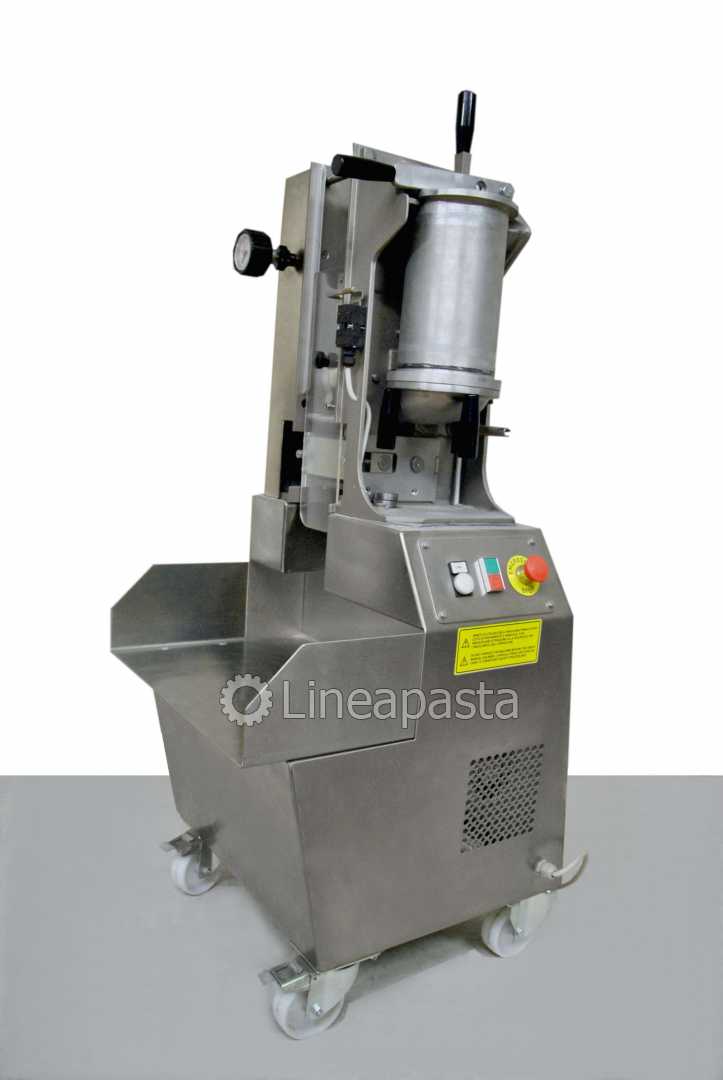

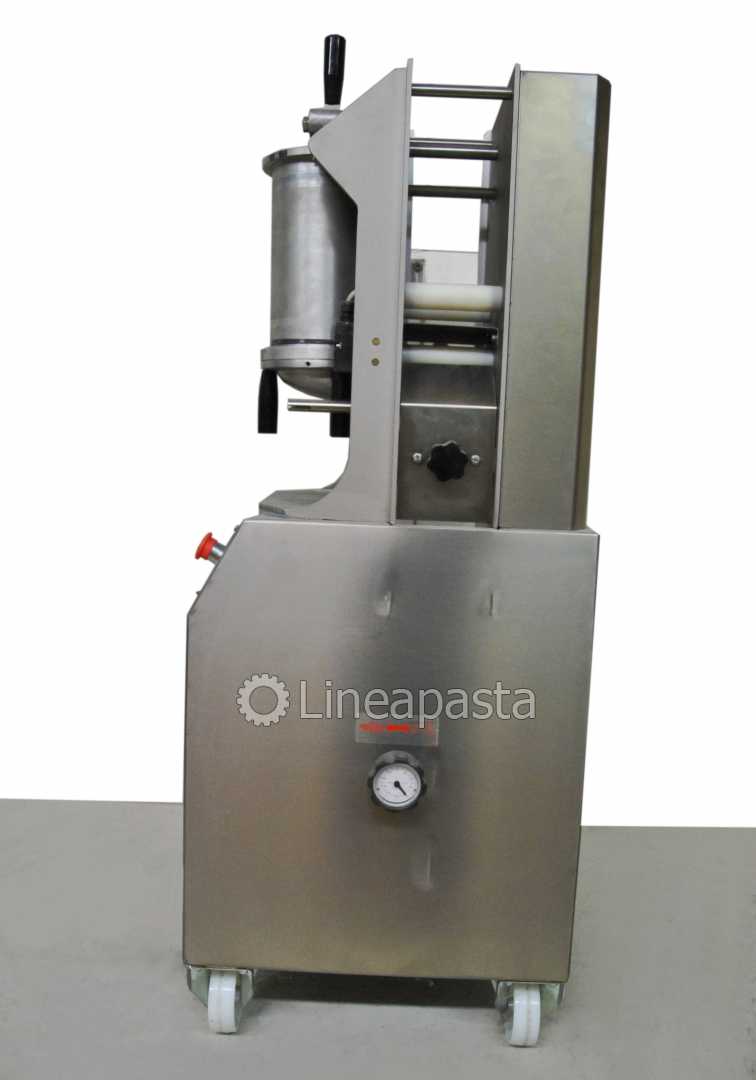

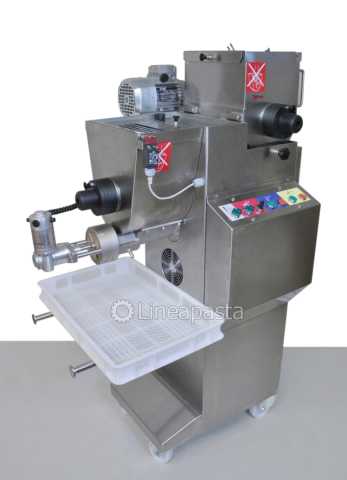

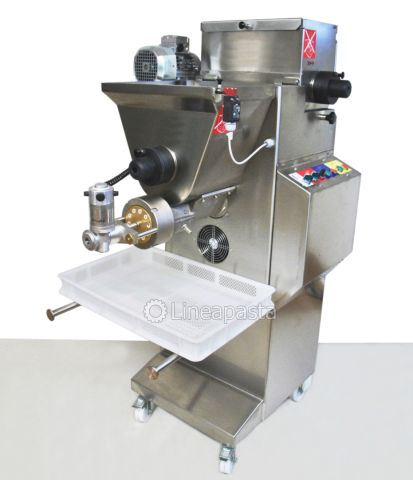

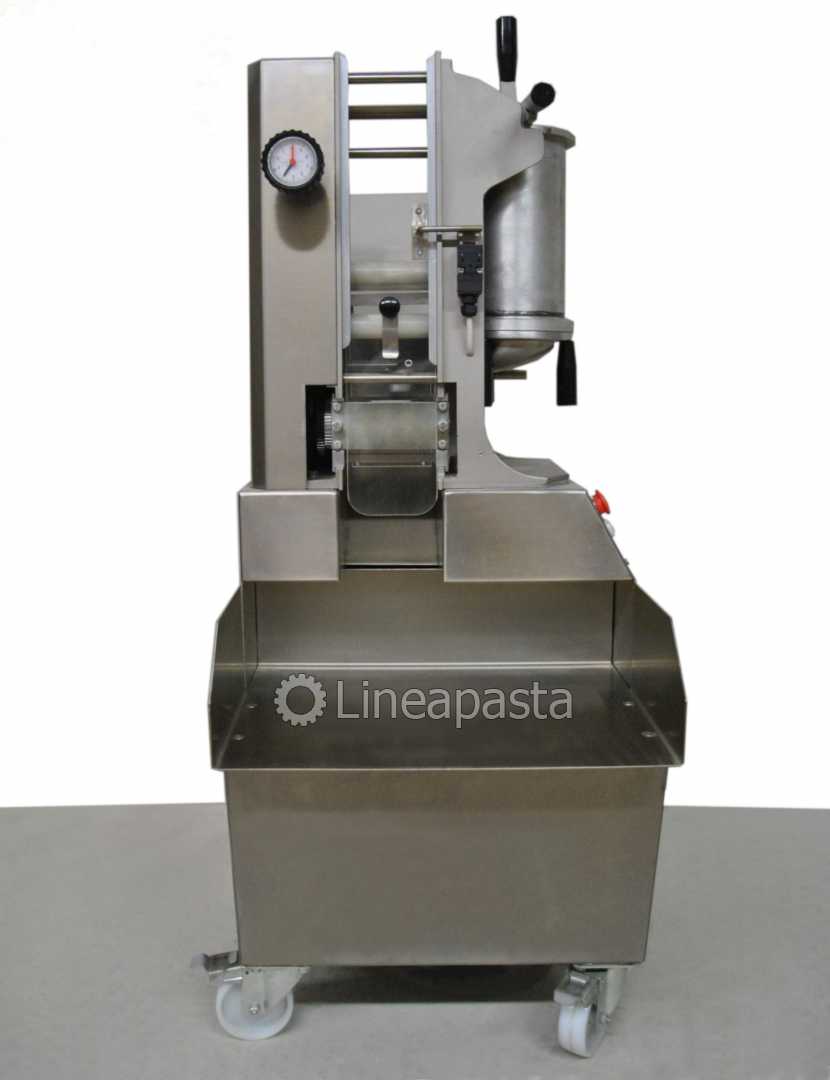

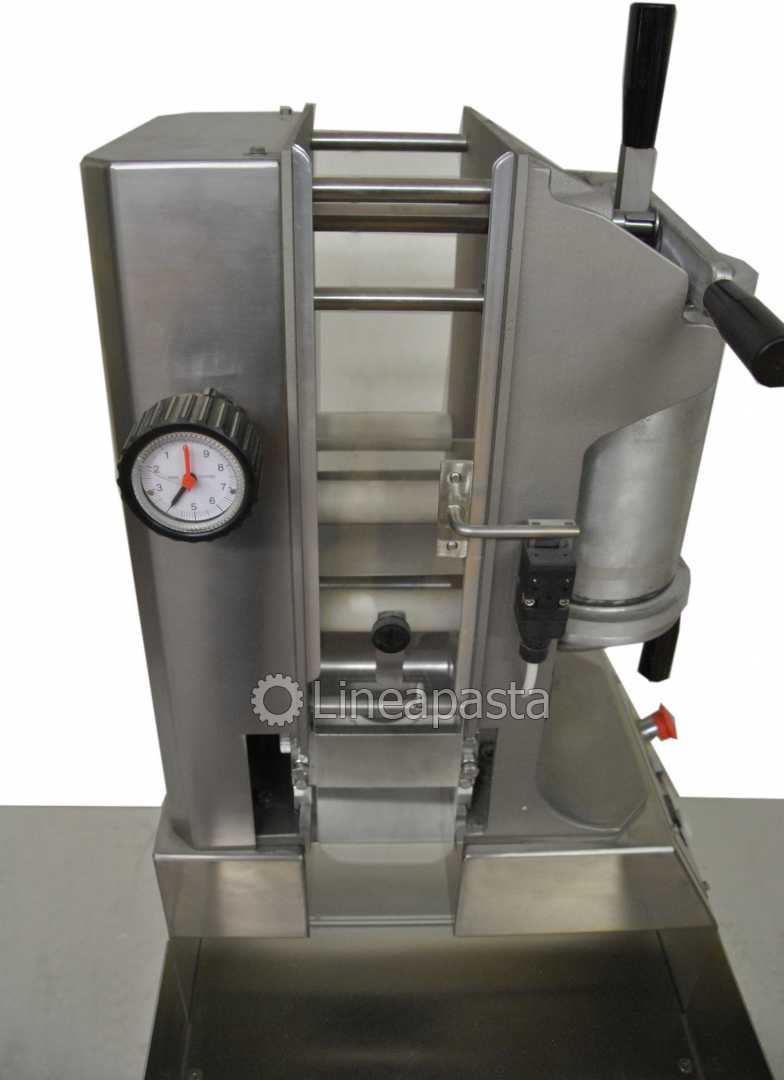

The automatic ravioli machine mod. RPX is a machine for the production of ravioli with interchangeable molds that can be combined with MAC 30 and MAC 60 models, or pasta makers with a minimum production capacity of 25 kg/h.

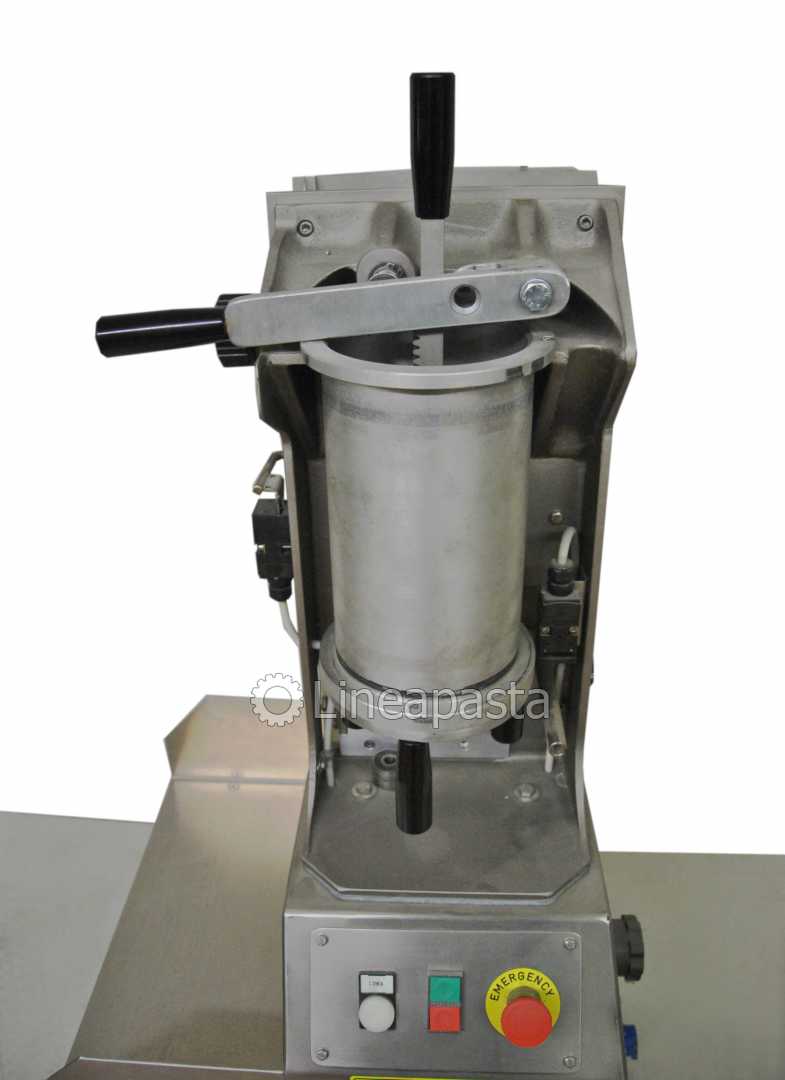

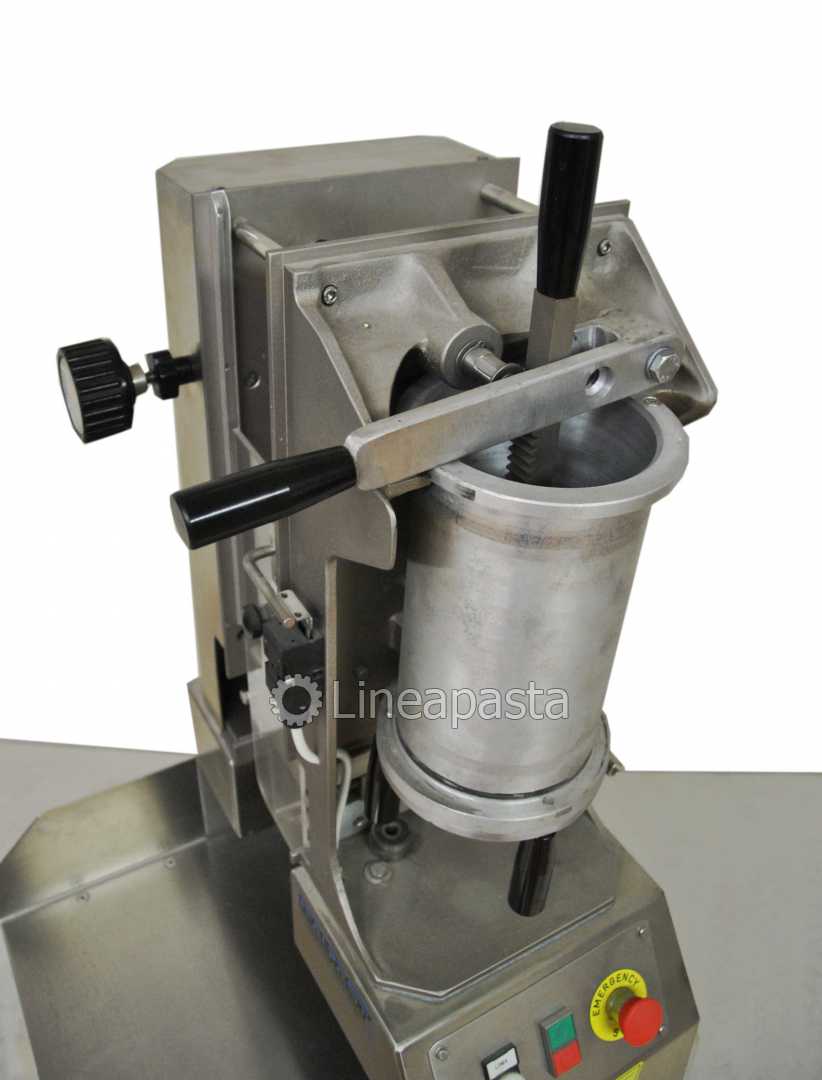

It is provided with a filling dosage system with quantity and speed regulation and it uses two pasta sheets 120mm width.

The ravioli moulds available are the followings:

- Rectangular mm 18x20 – 25x28 – 35x40 – 45x50 – 50x60 – 70x45 – 60x80 – 90x90;
- Half-moon mm 80x50;
- Triangular mm 65x55x75;
- Round diam. mm 30 - 50 - 70;
- Cannelloni mm 160x40.

TECHNICAL DATA:

- Production rate: 25/40 kg/h combined with MAC 30 - 40/60 kg/h combined with MAC 60
- Power: 0,2 kW
- Voltage: 220V/50Hz 1Ph - 220V/60Hz 1Ph
- Gross weight: 90 kg
- Package dimensions: cm 60x65x130h
