Automatic ravioli machine RFV

•
•
•
•
•
•
•
•
•
•
•
•
•

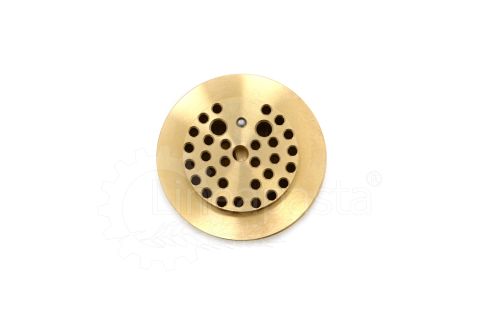

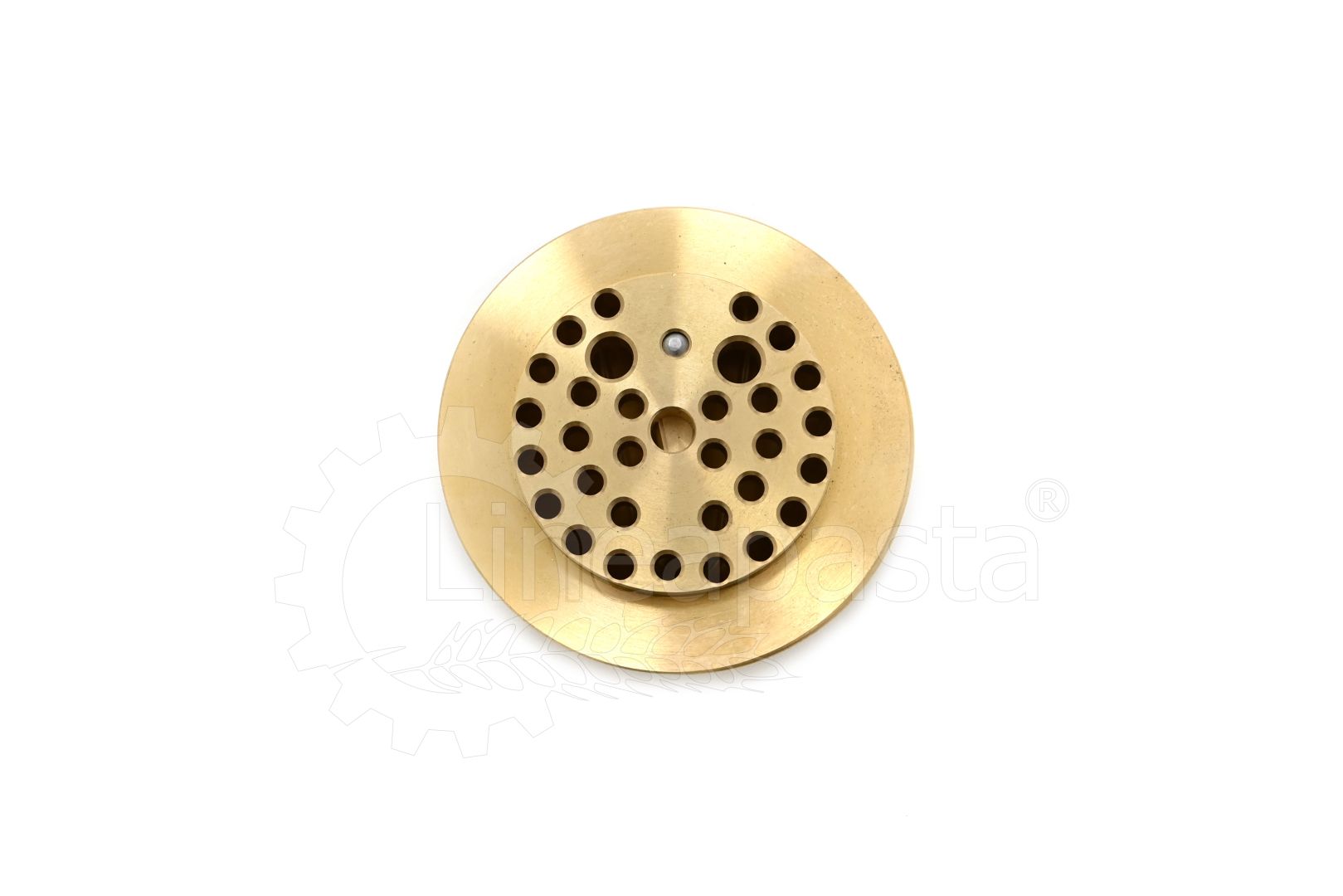

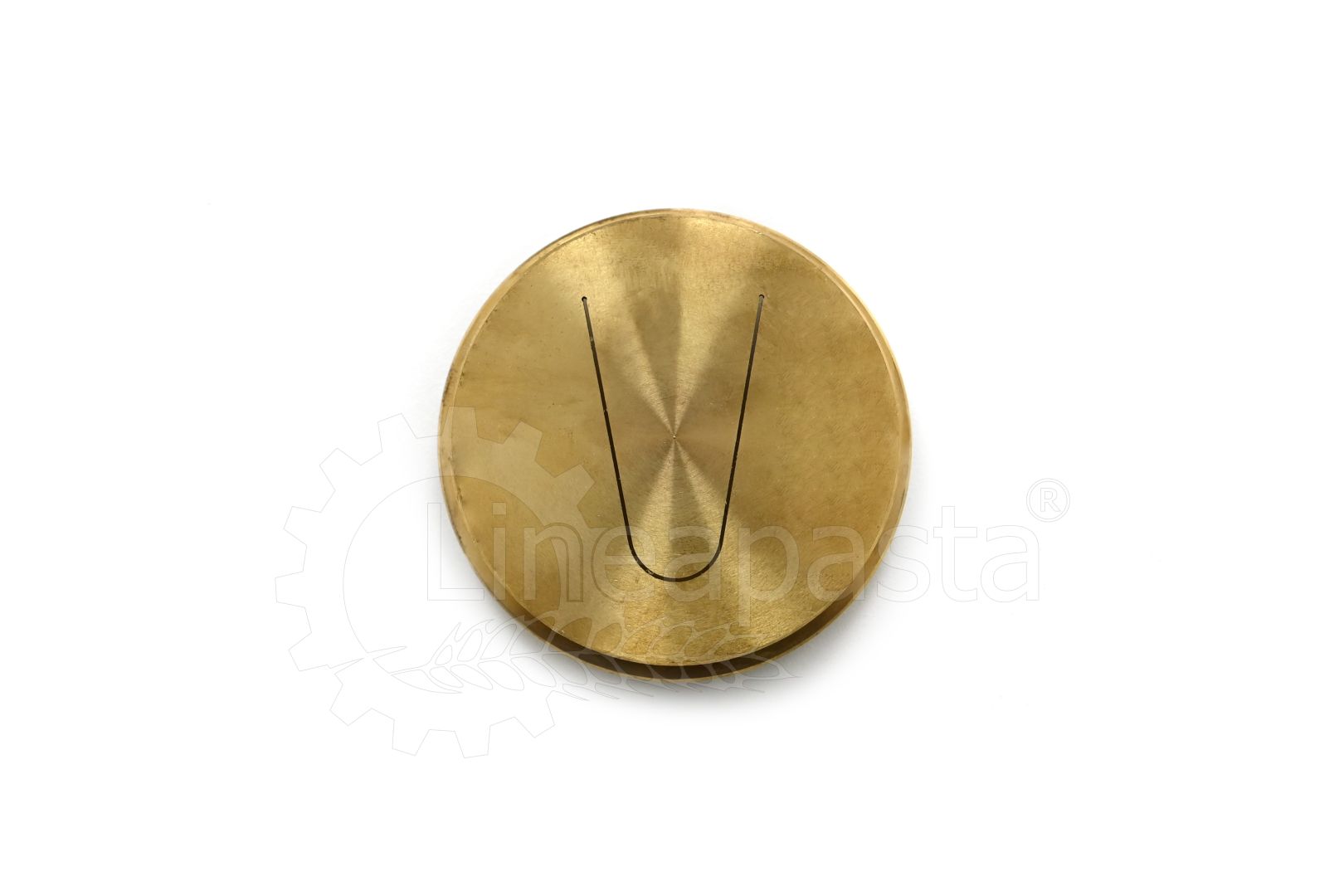

• Pasta sheet die with fixed thickness of 0,8 mm or 1 mm
• Pasta sheet die with fixed thickness of 0,8 mm or 1 mm
• Second filling funnel with practical holder
•

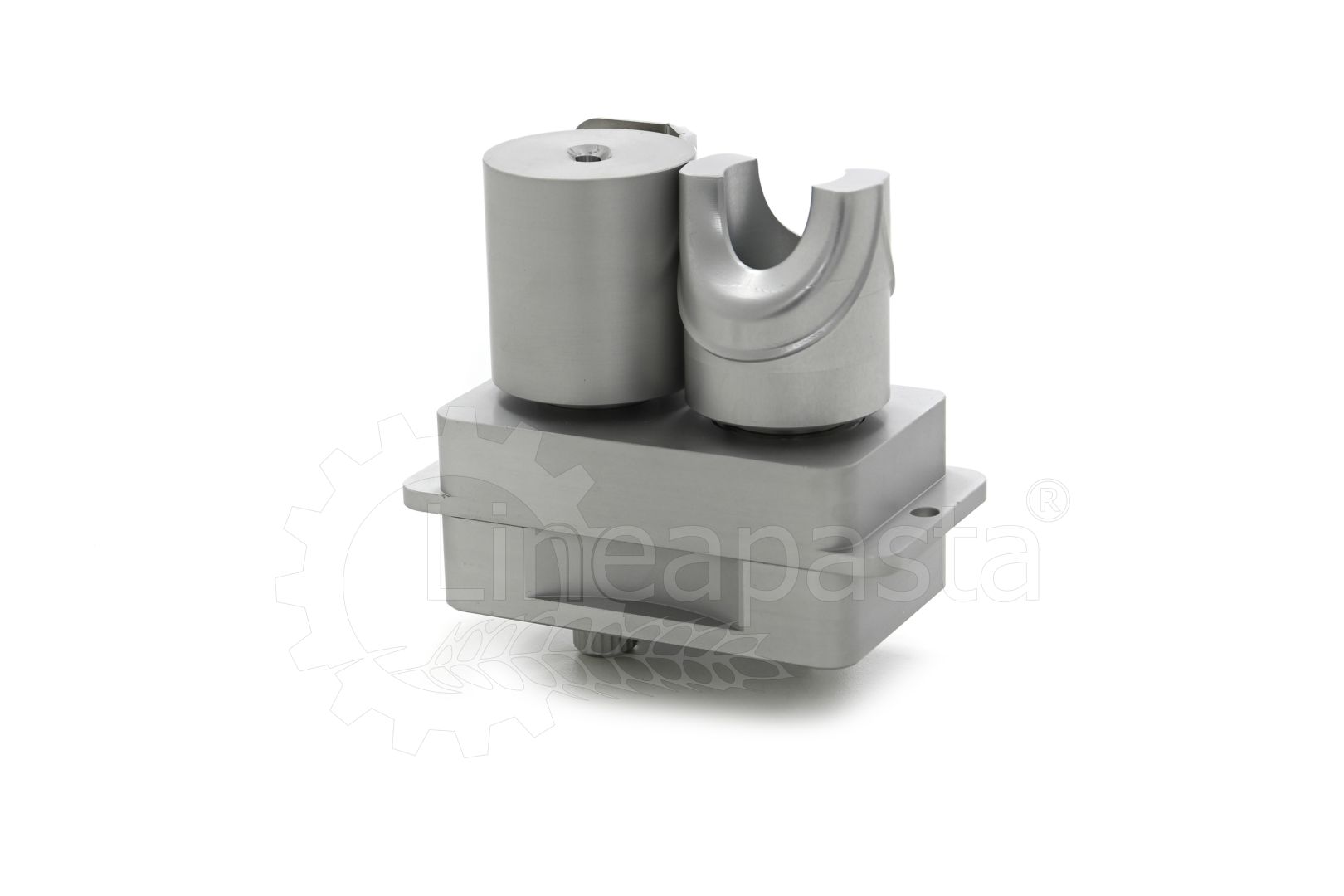

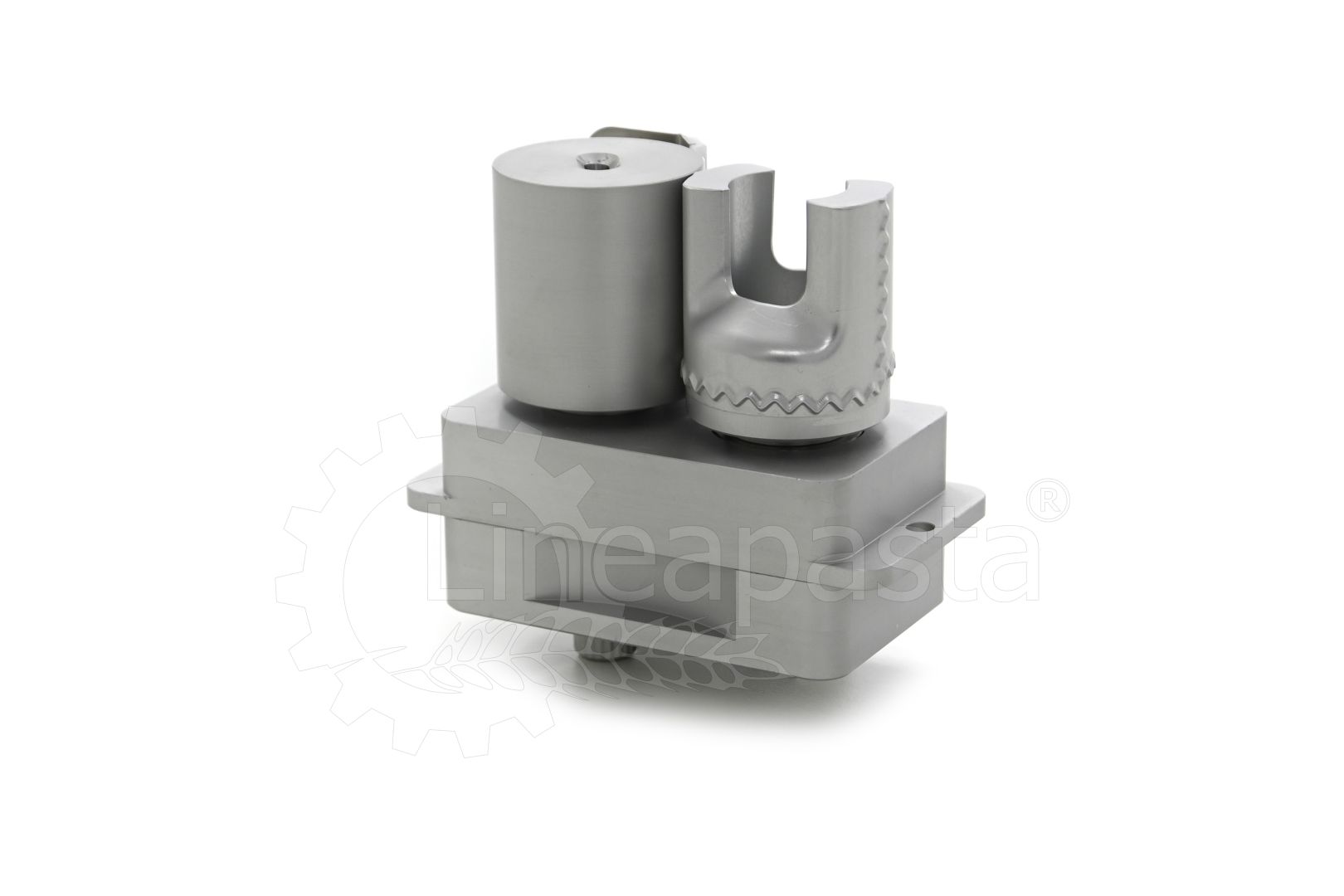

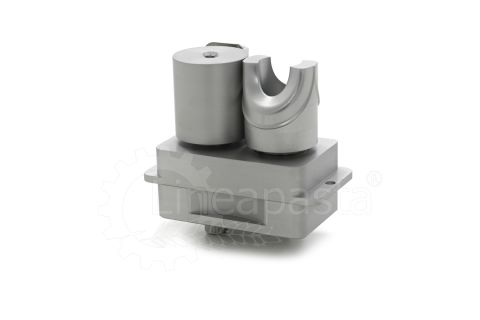

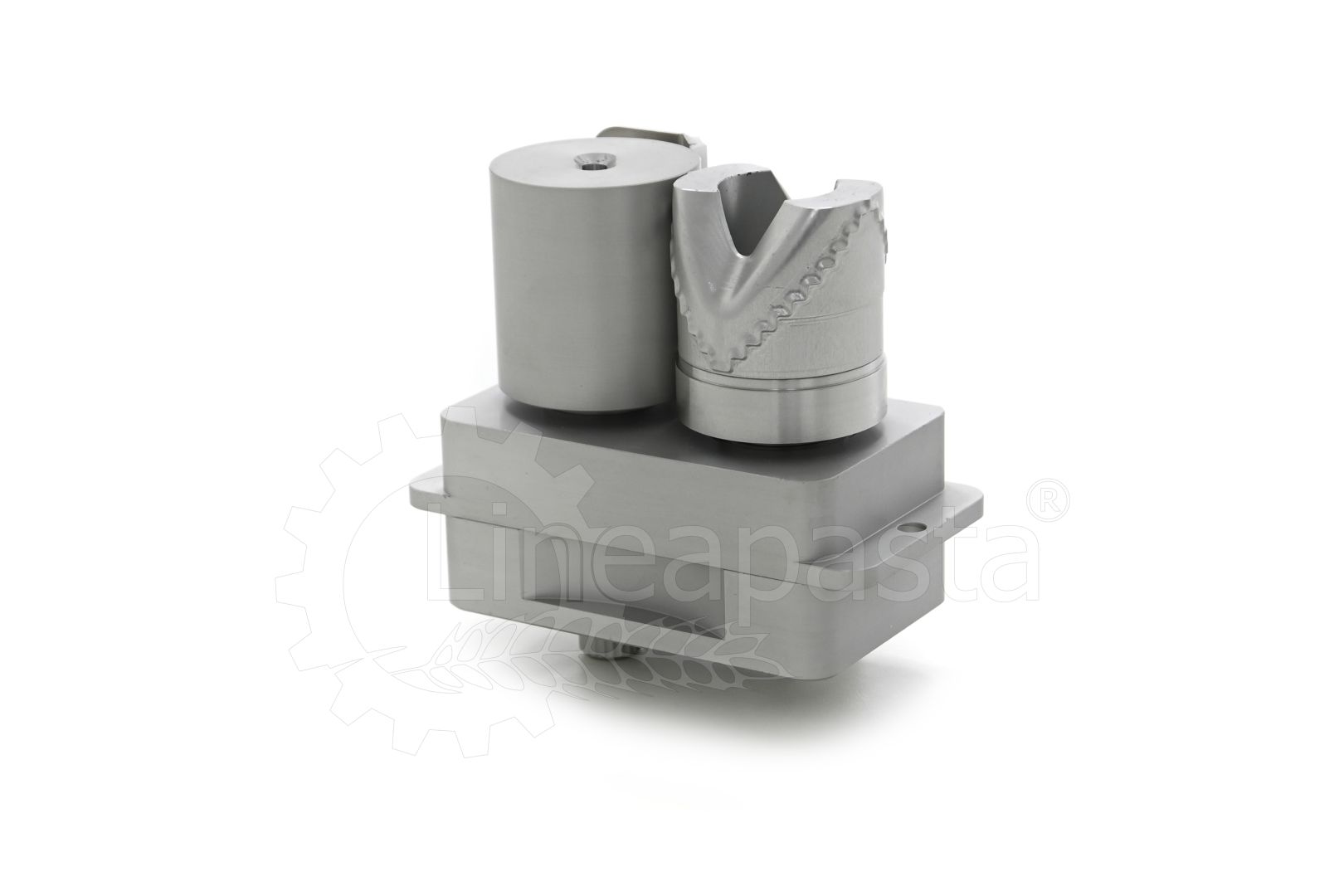

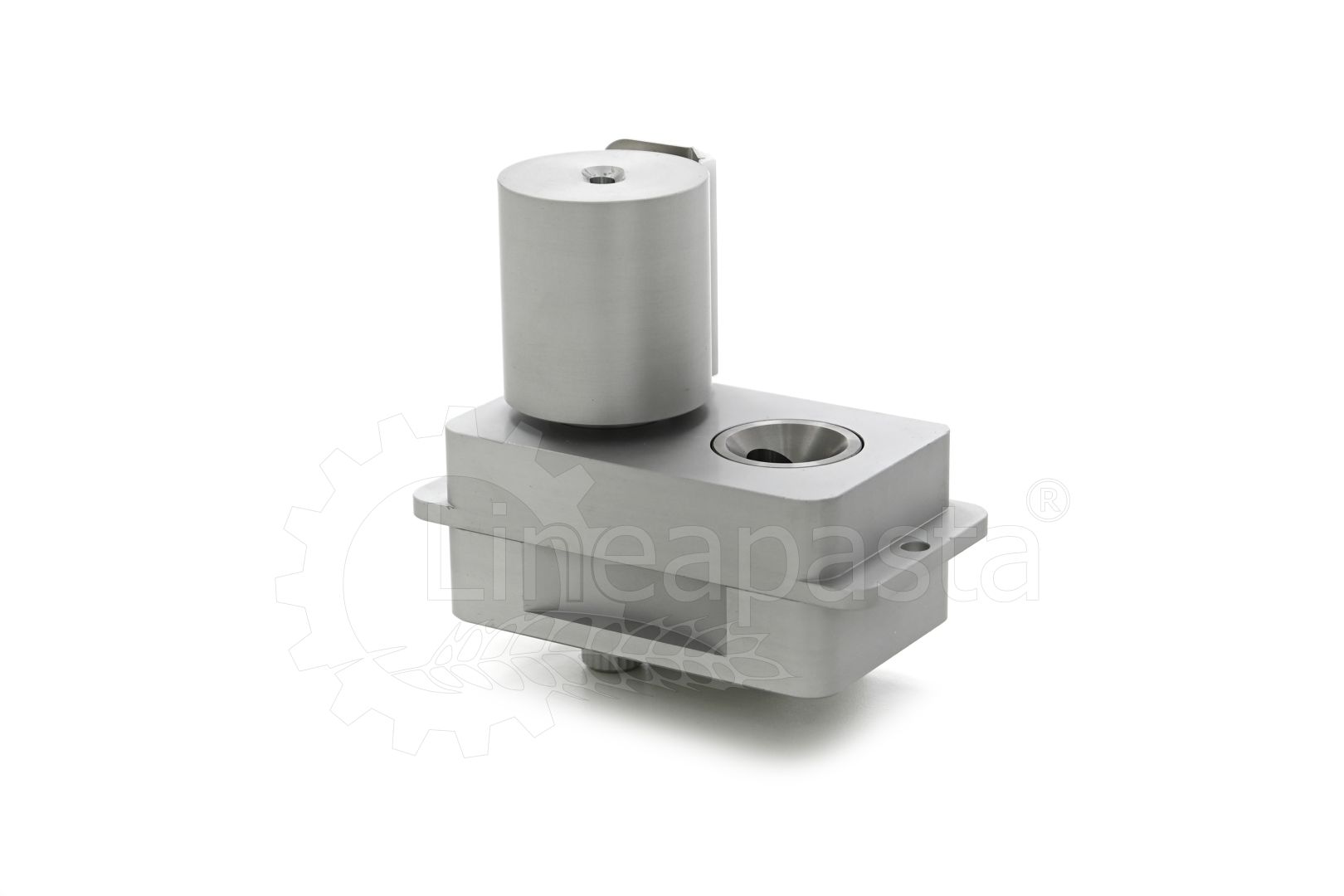

• Group for interchangeable ravioli moulds
• Triangular serrated mould 94x45 mm
• Rectangular large serrated mould 94x52 mm

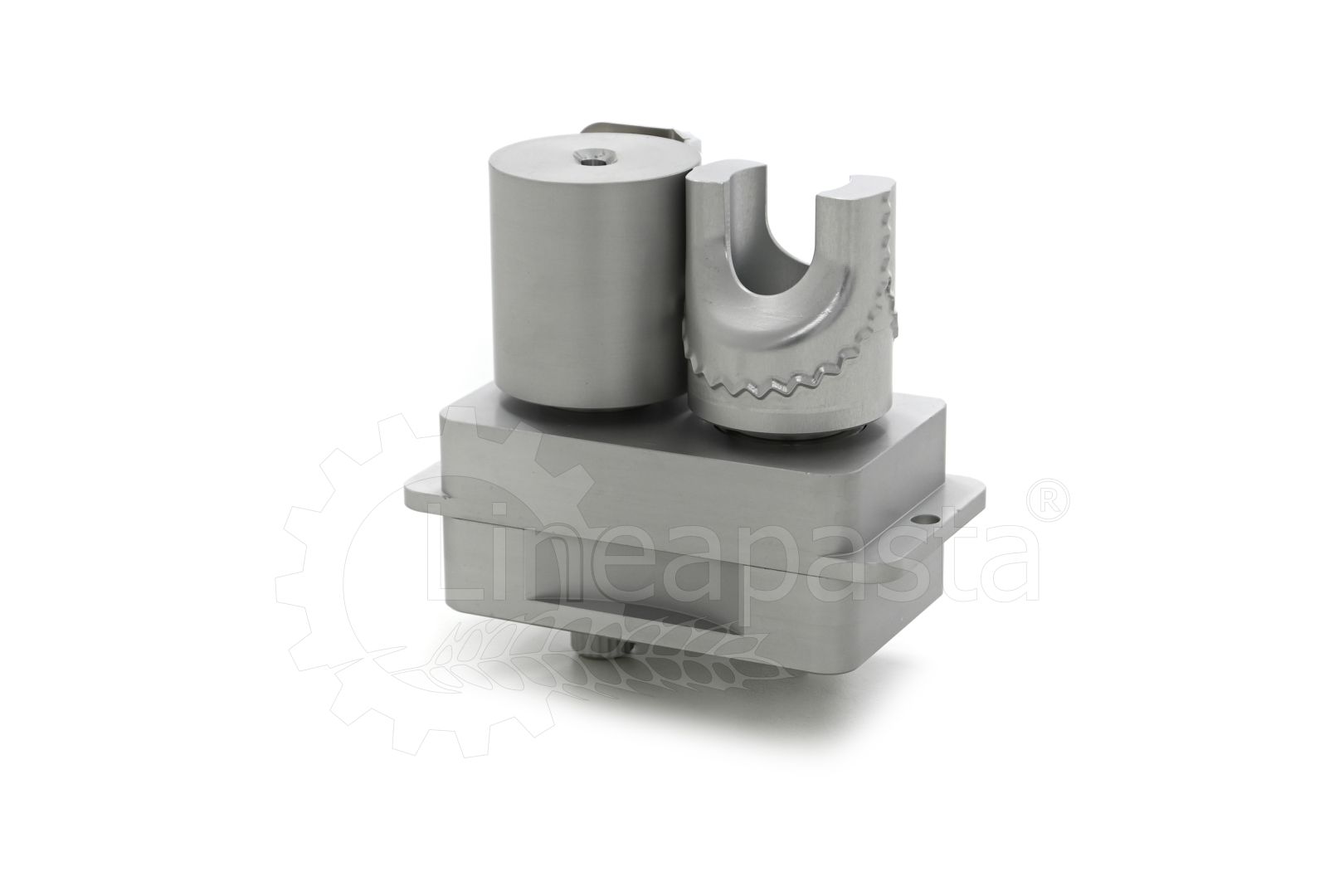

• Small serrated half moon mould 63x45 mm
• Schlutzkrapfen smooth half moon mould 94x45 mm

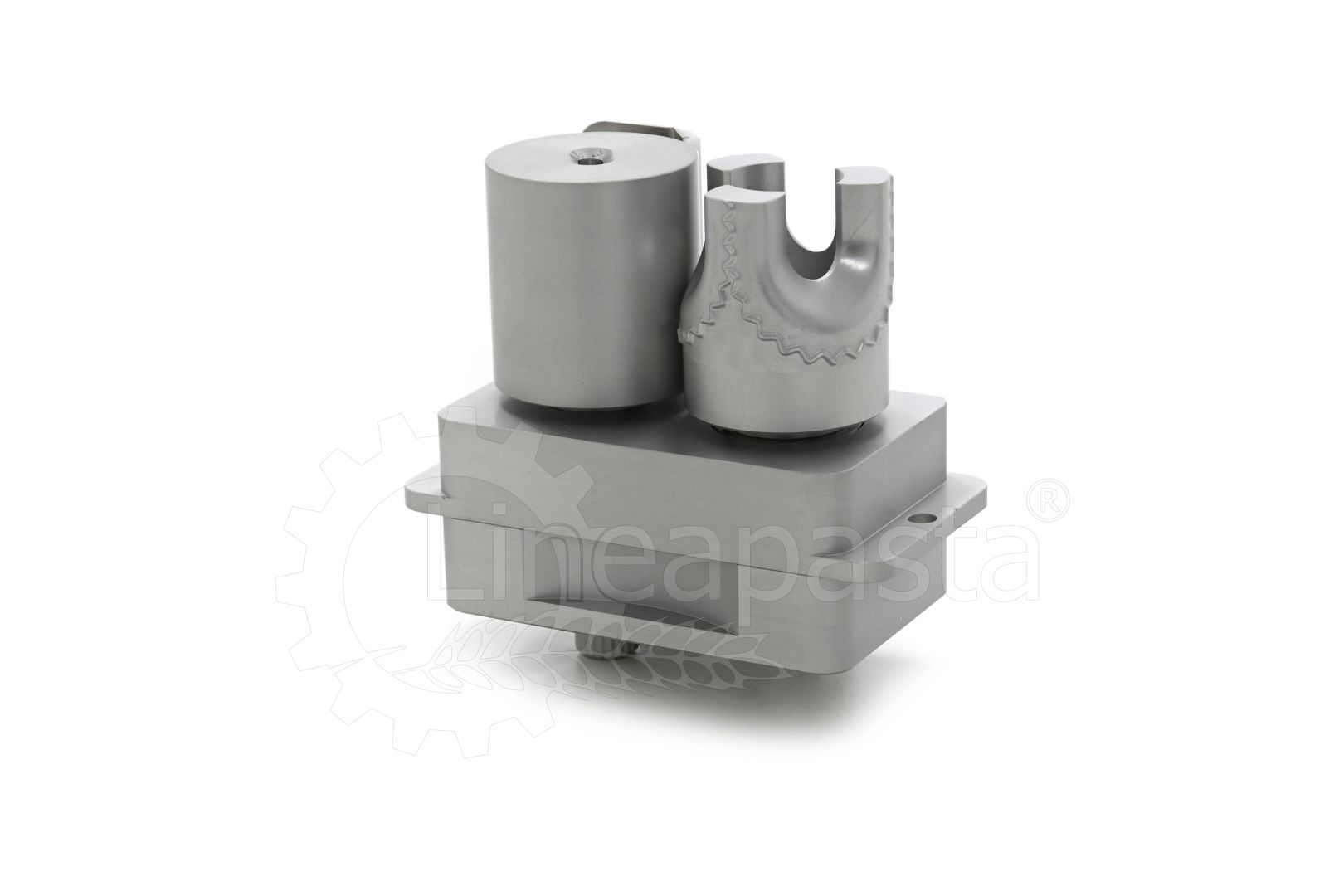

• Large serrated half moon mould 94x55 mm

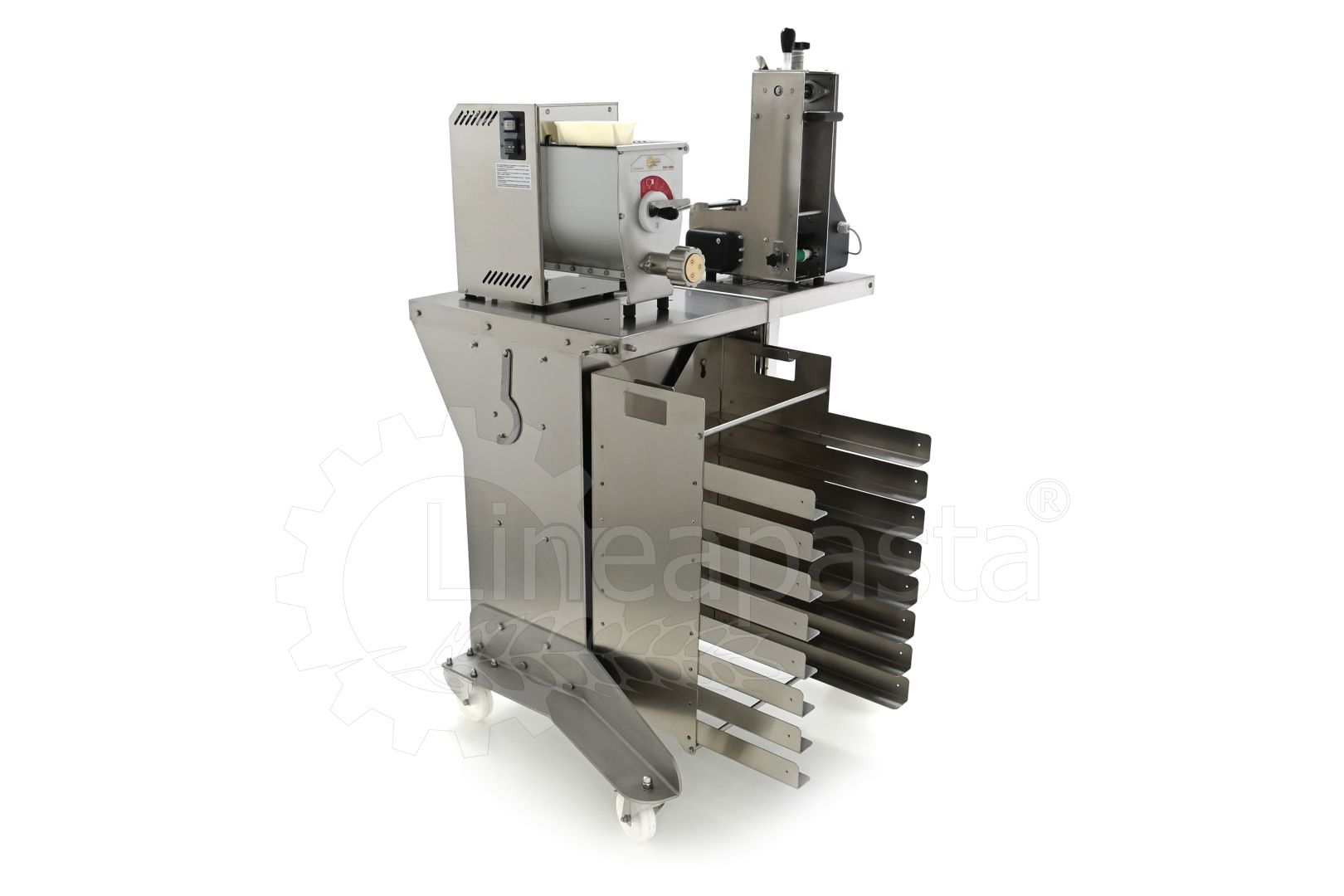

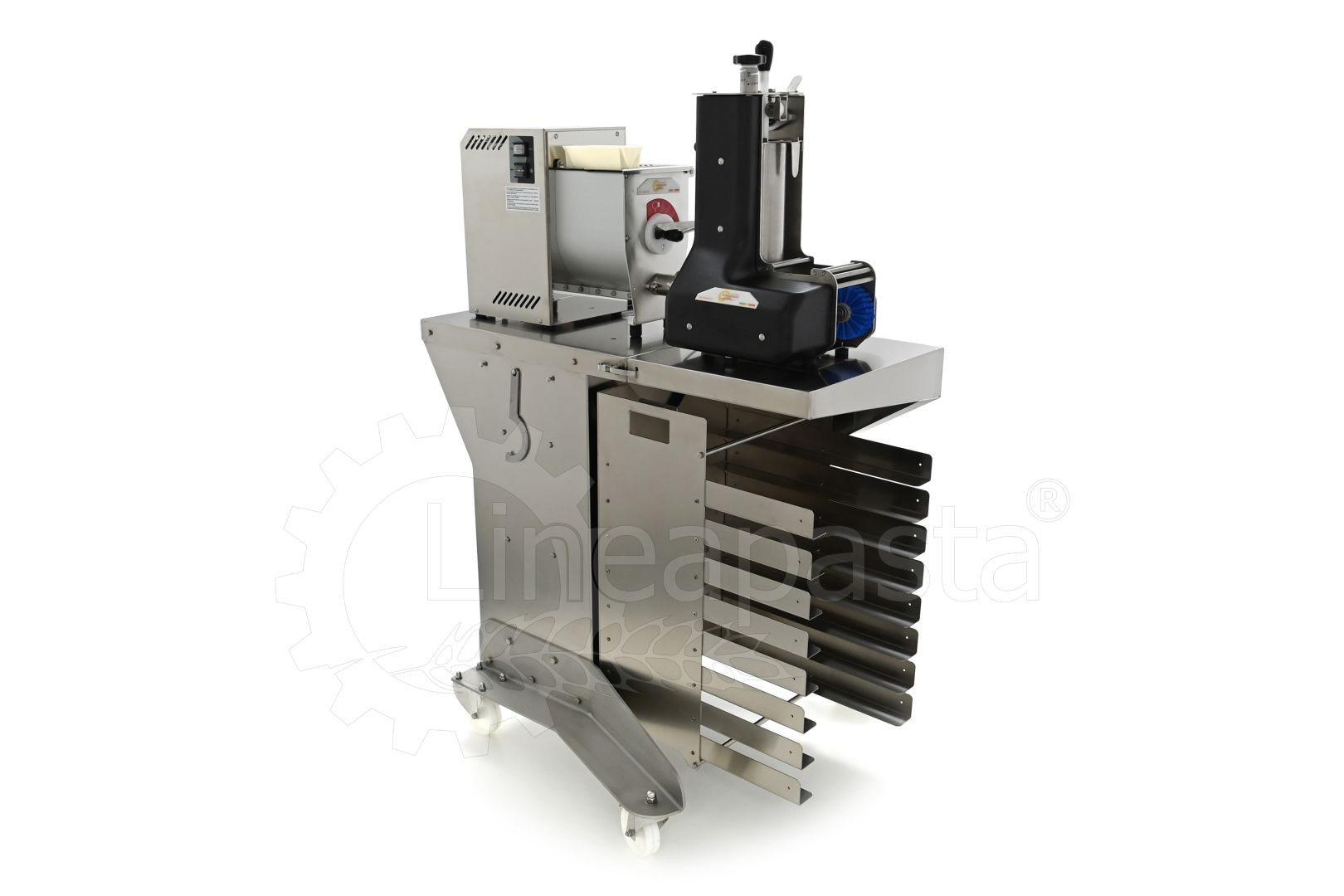

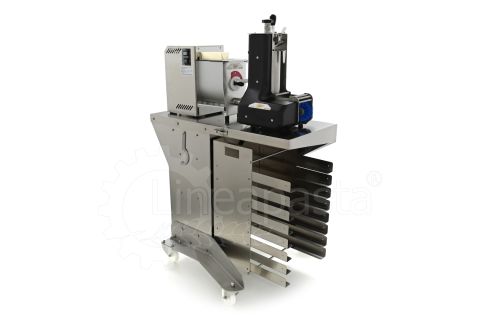

• With trolley for pasta machine

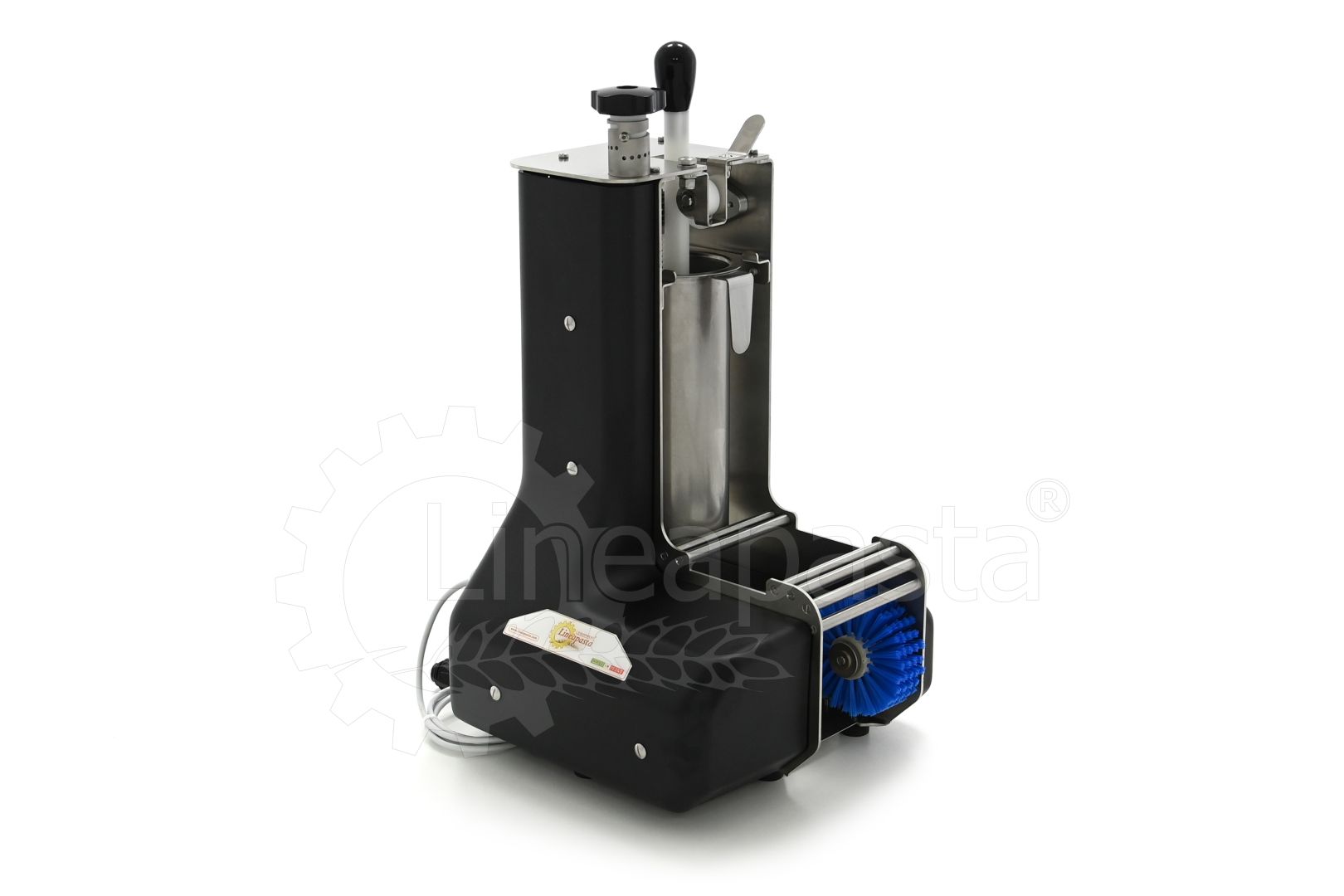

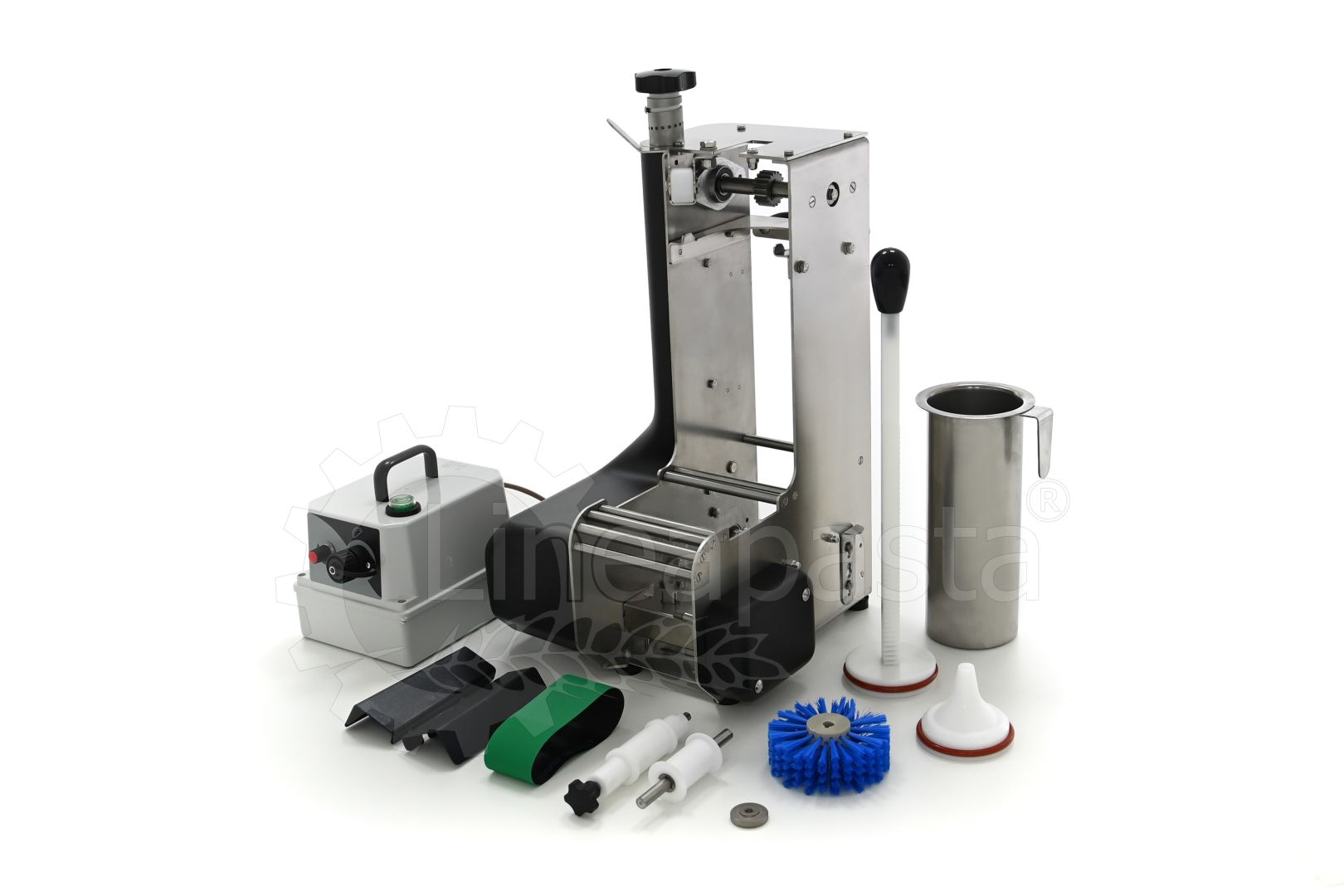

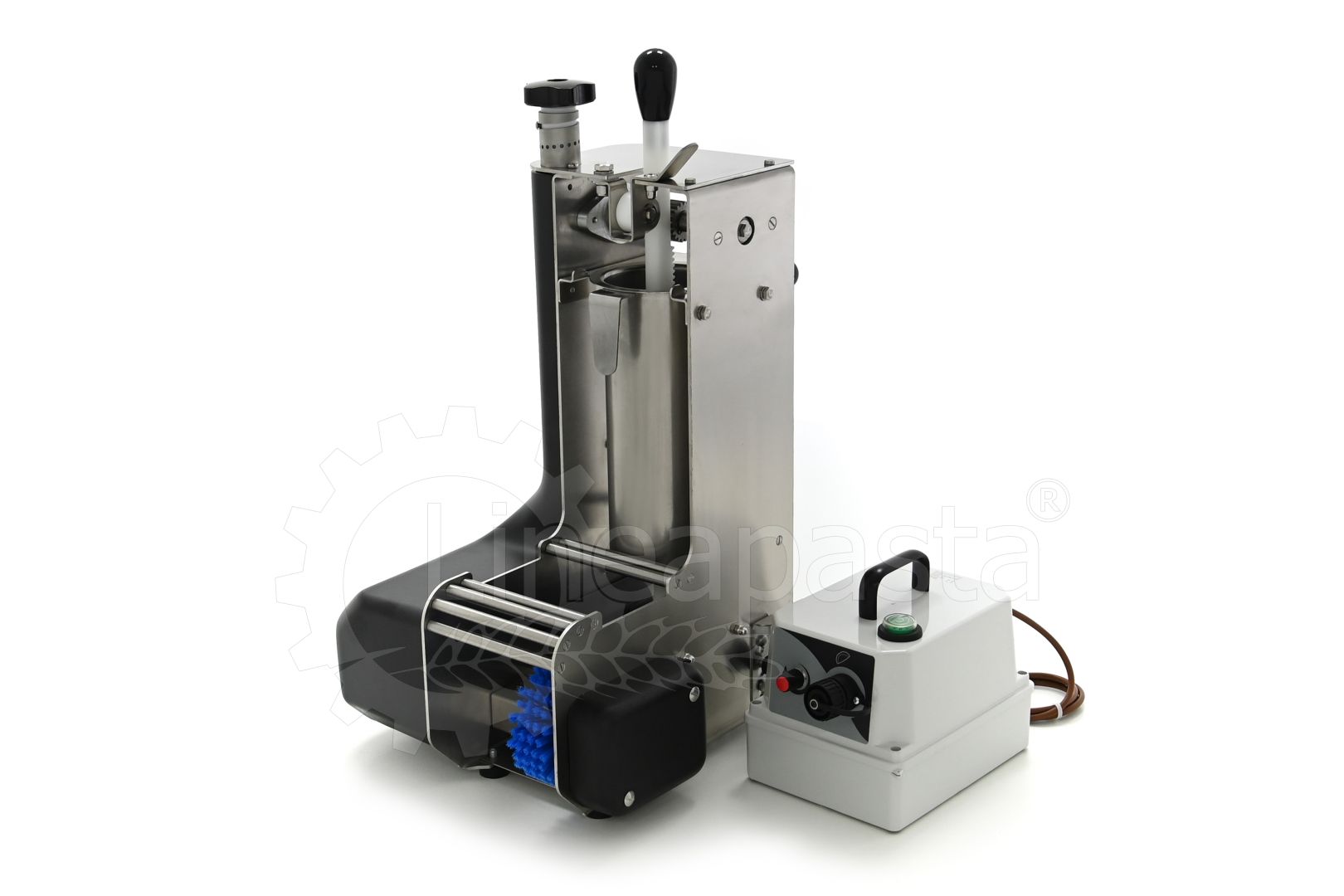

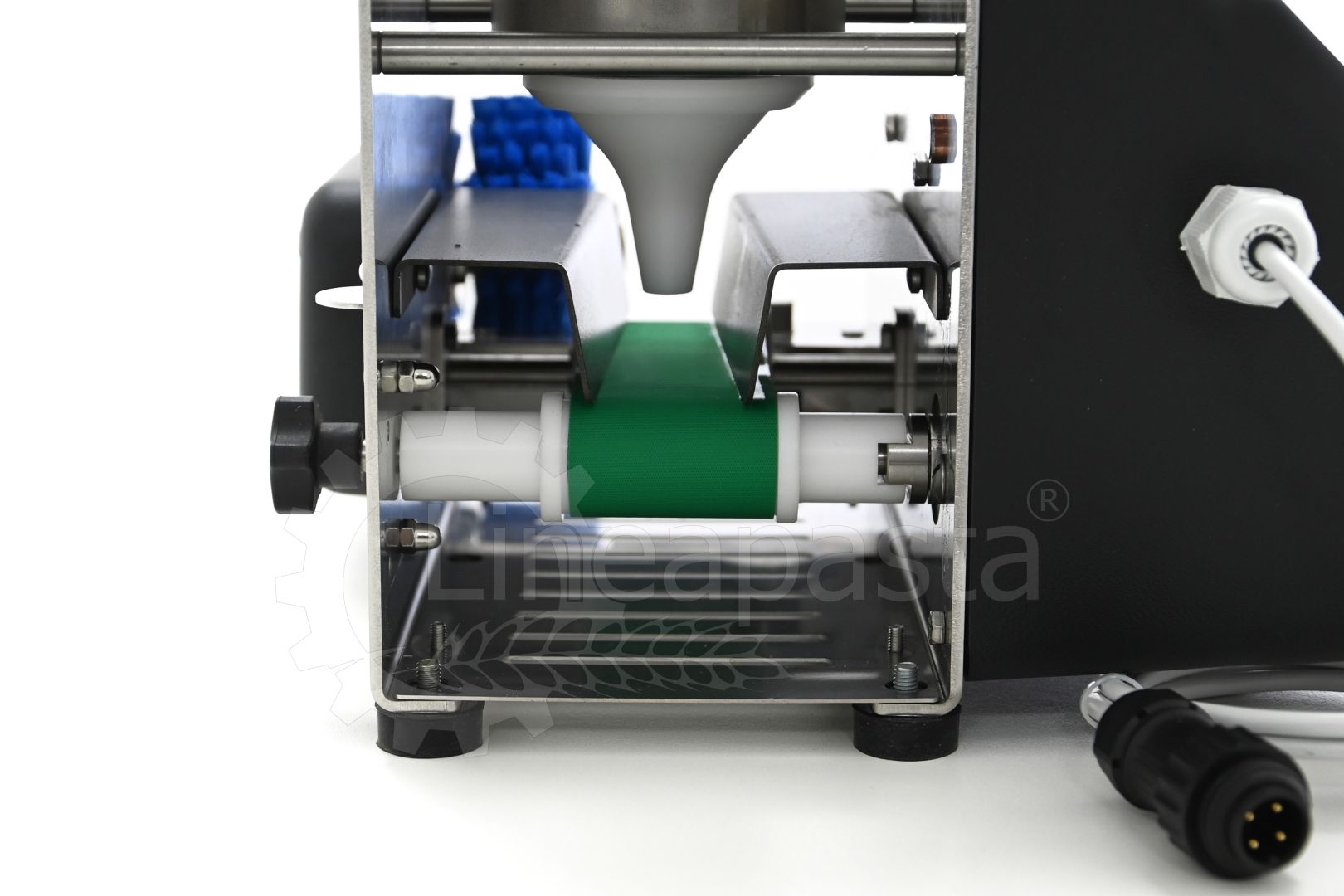

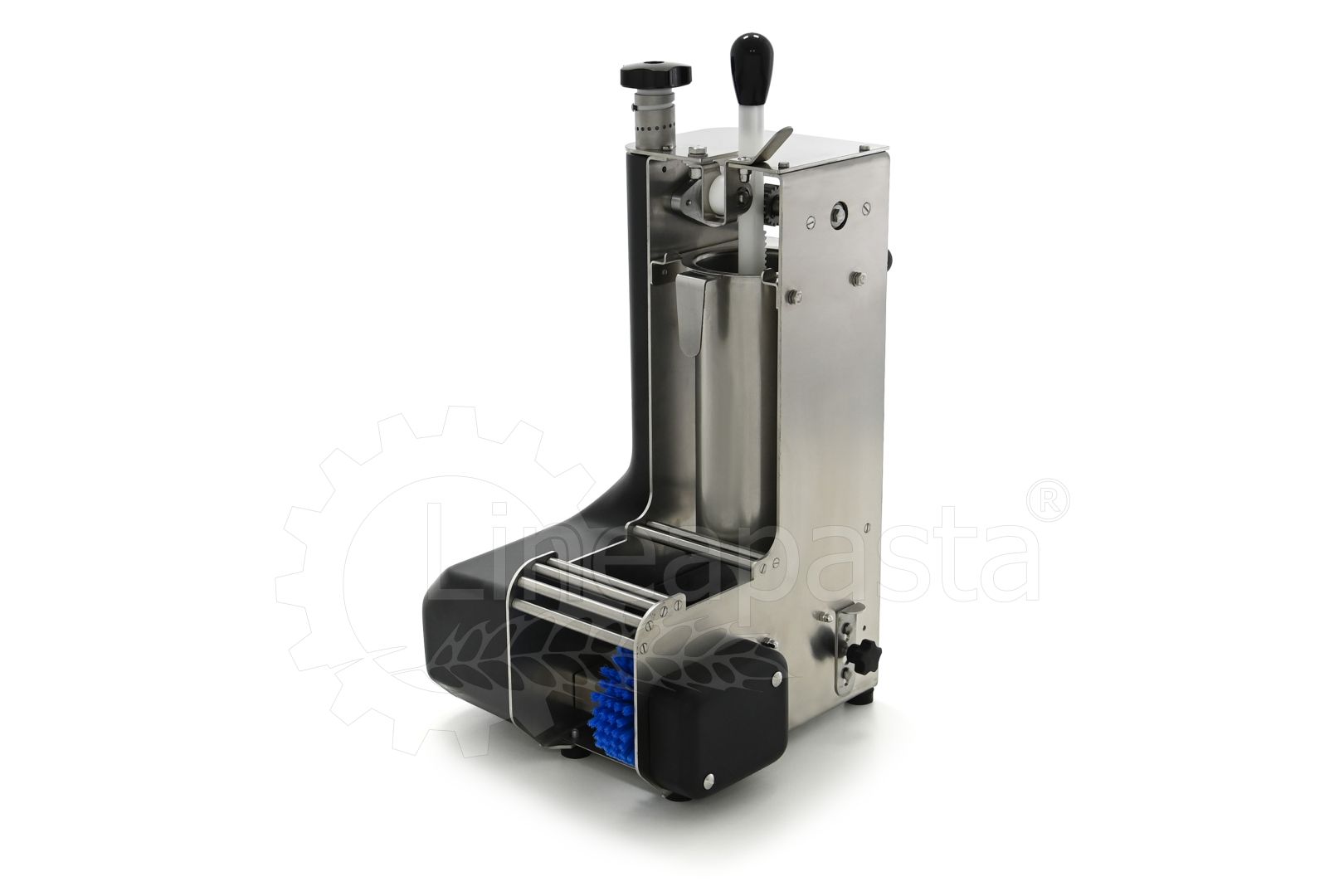

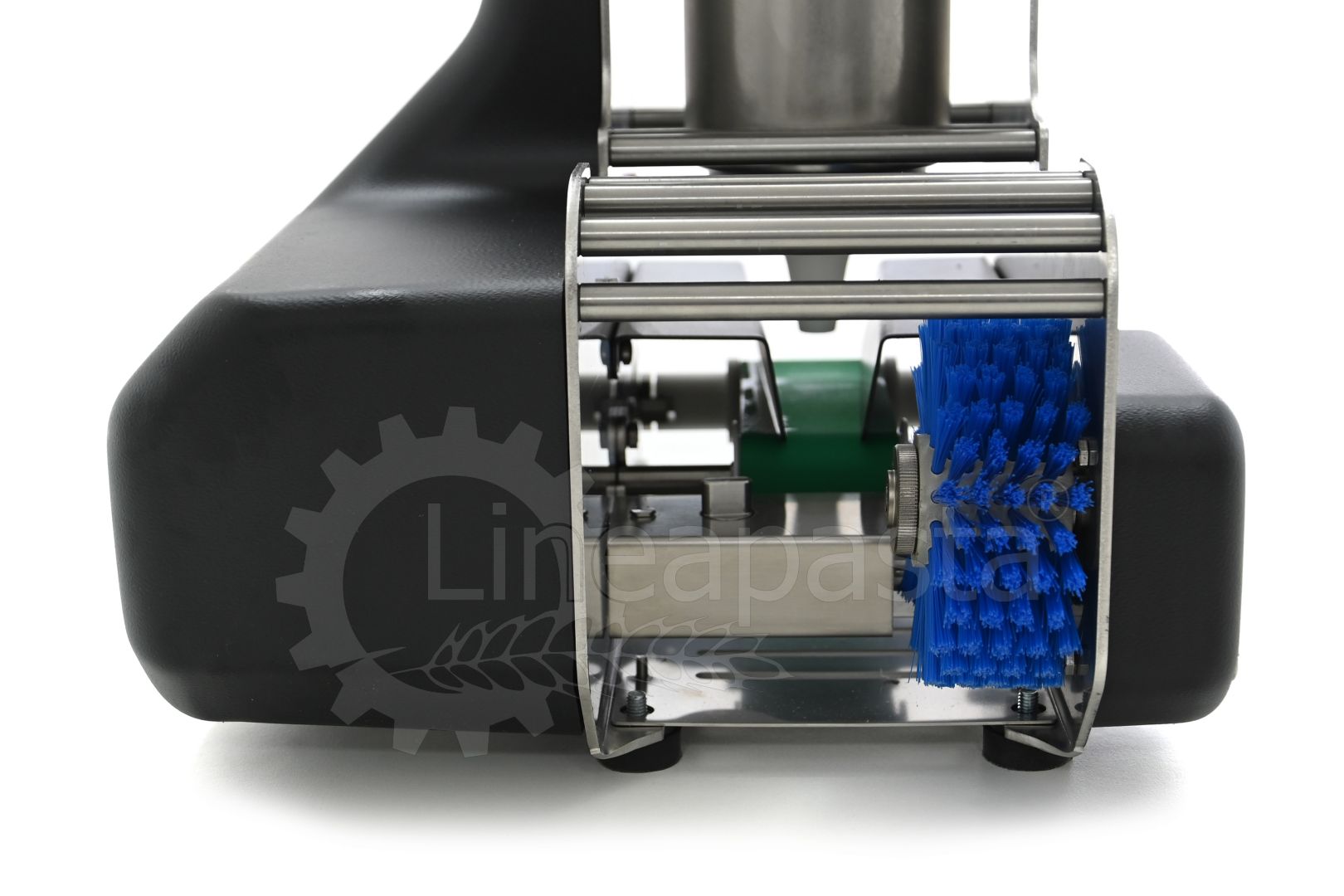

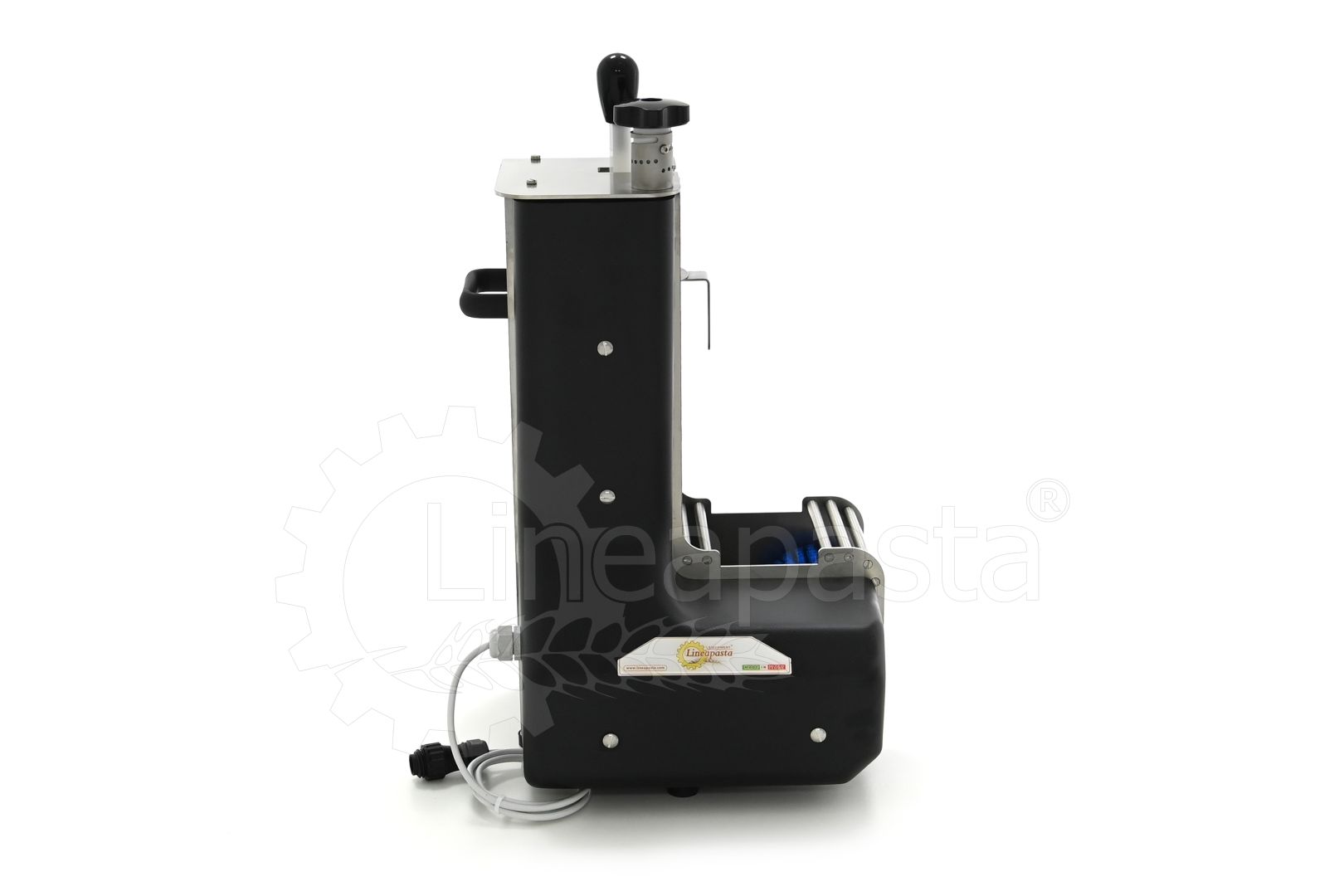

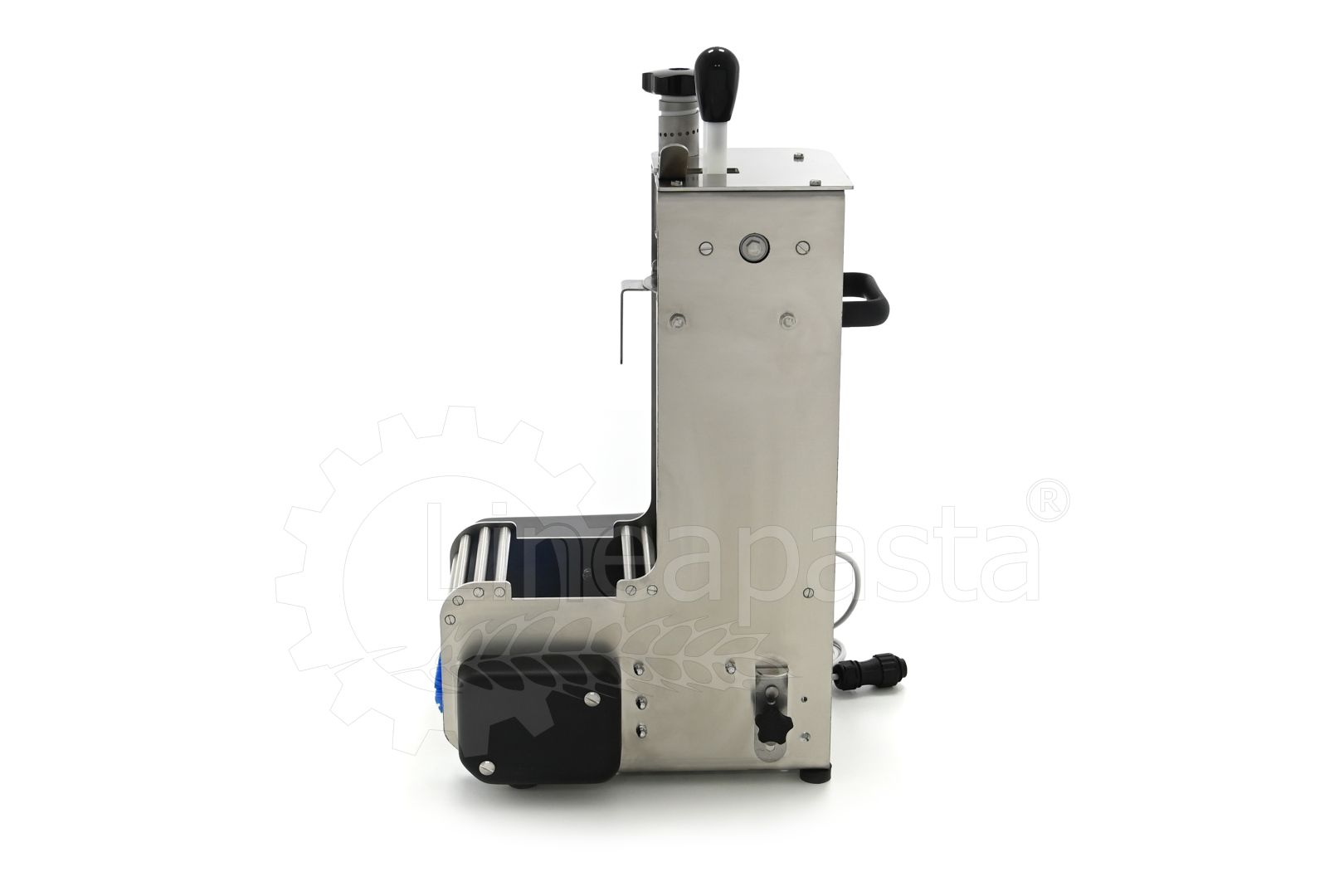

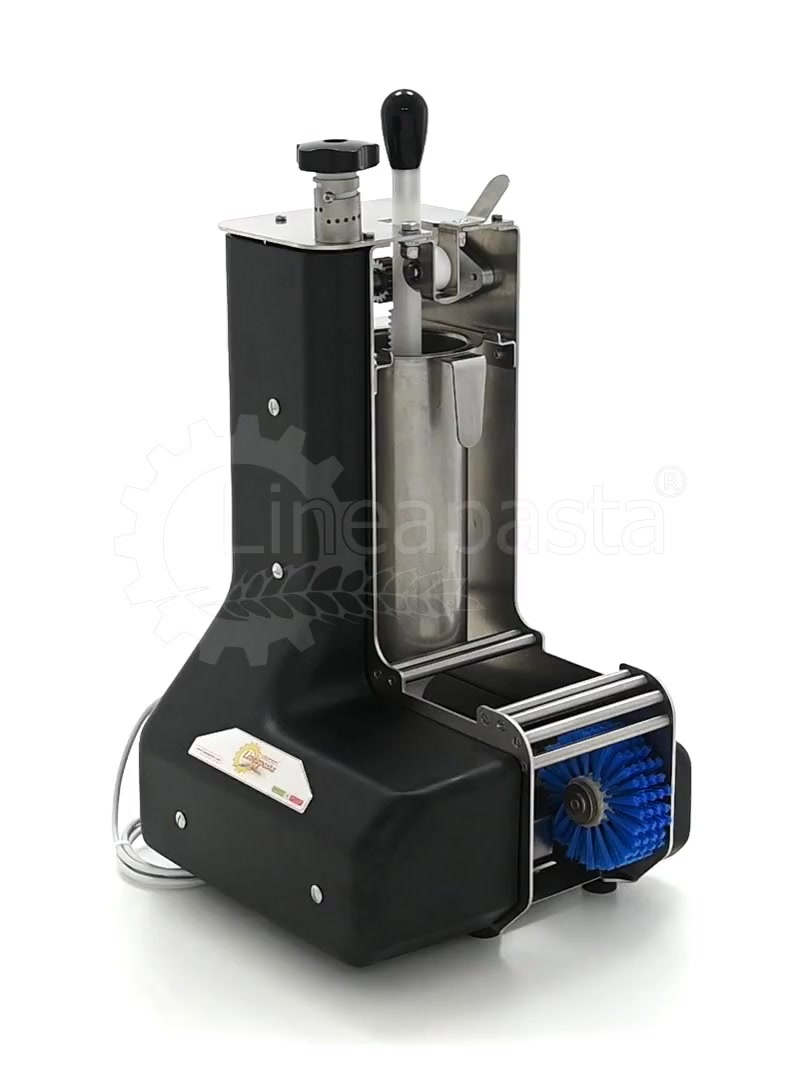

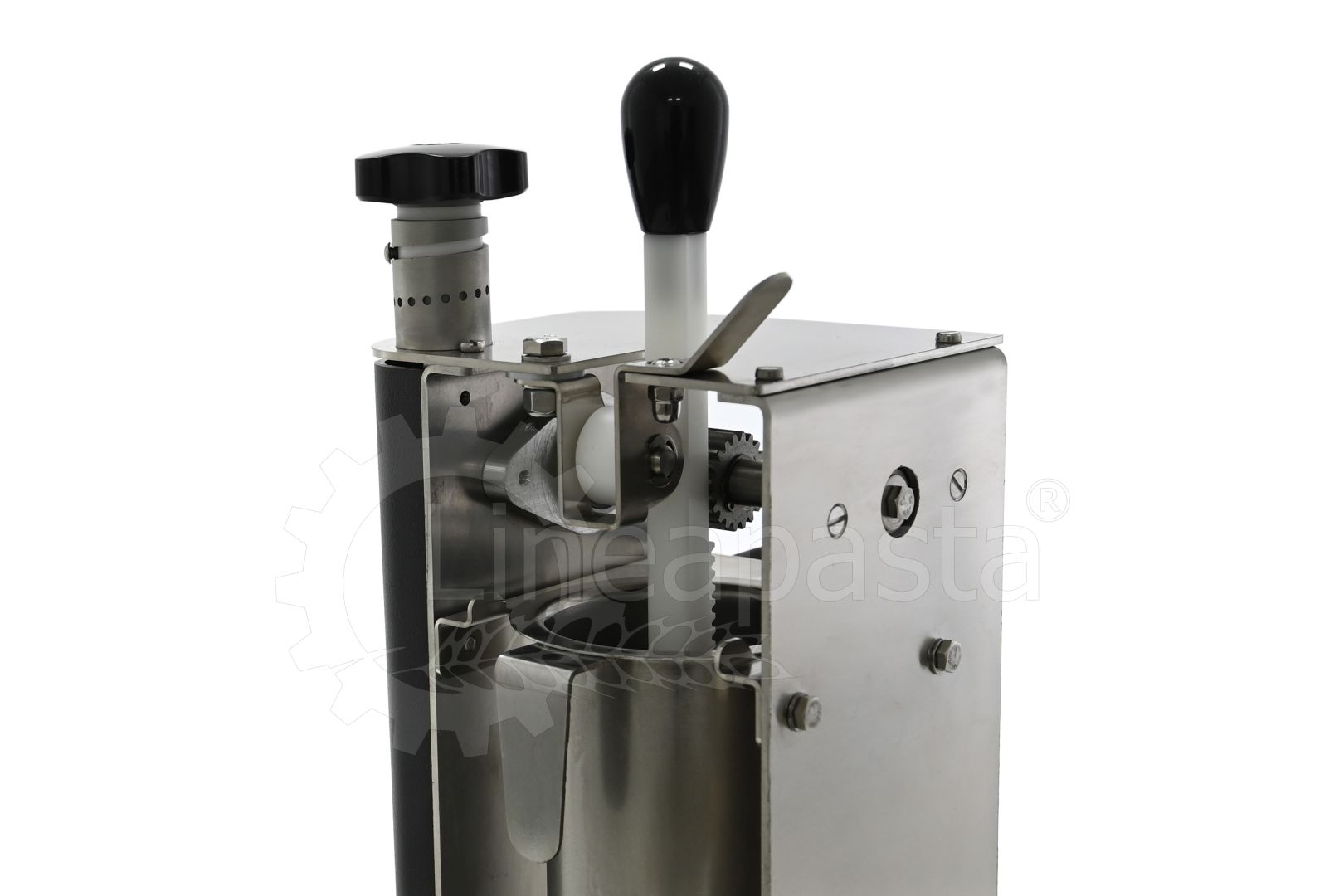

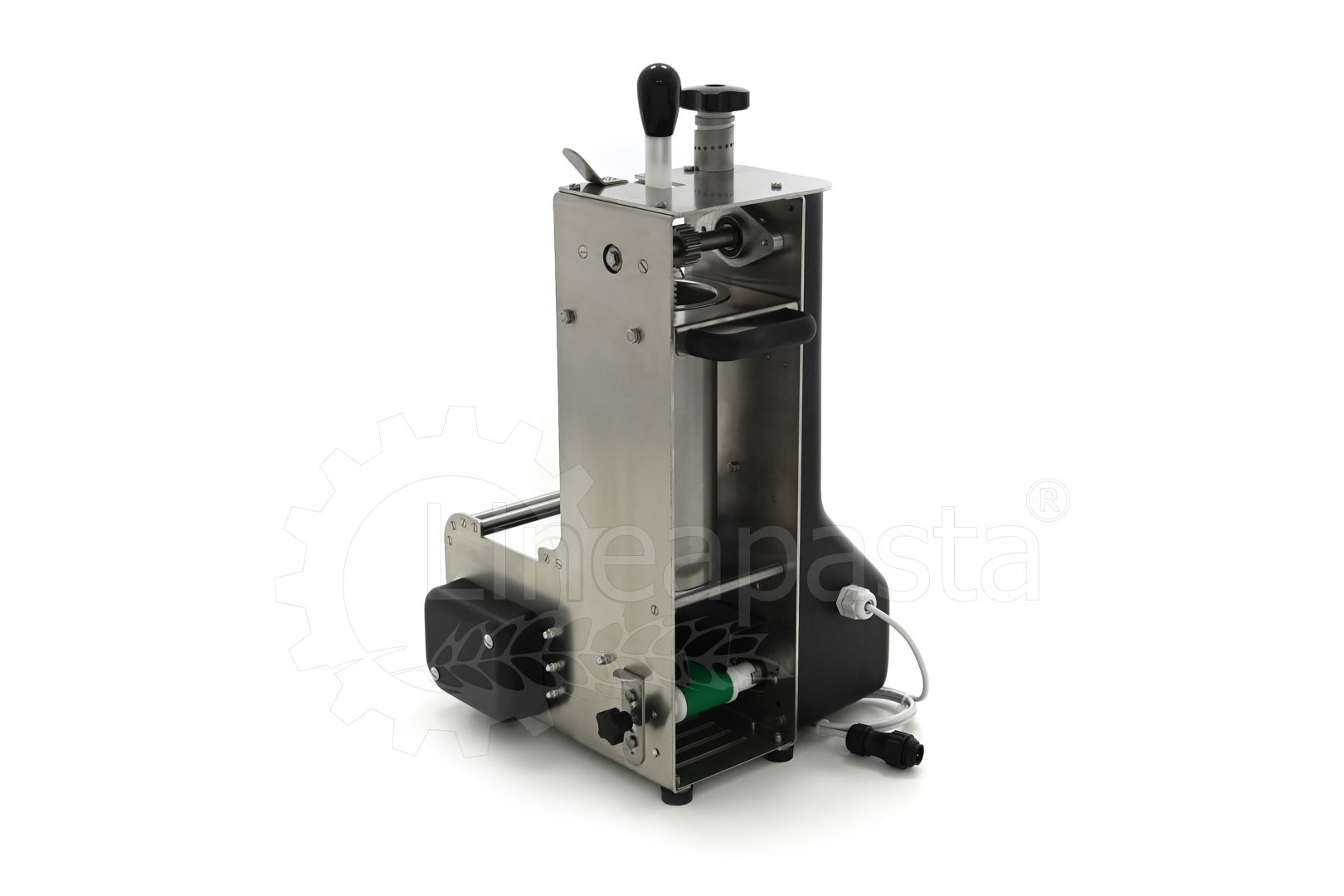

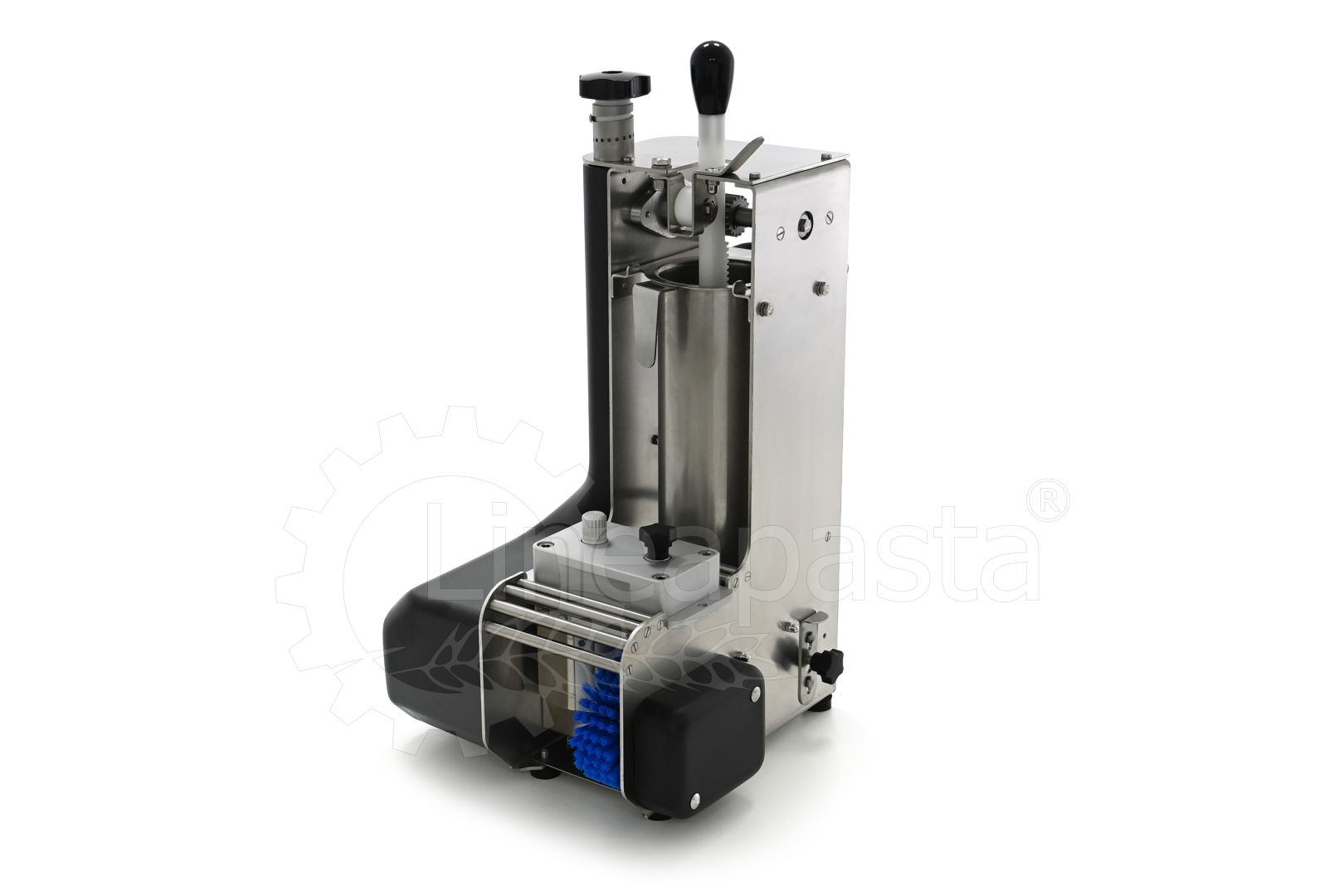

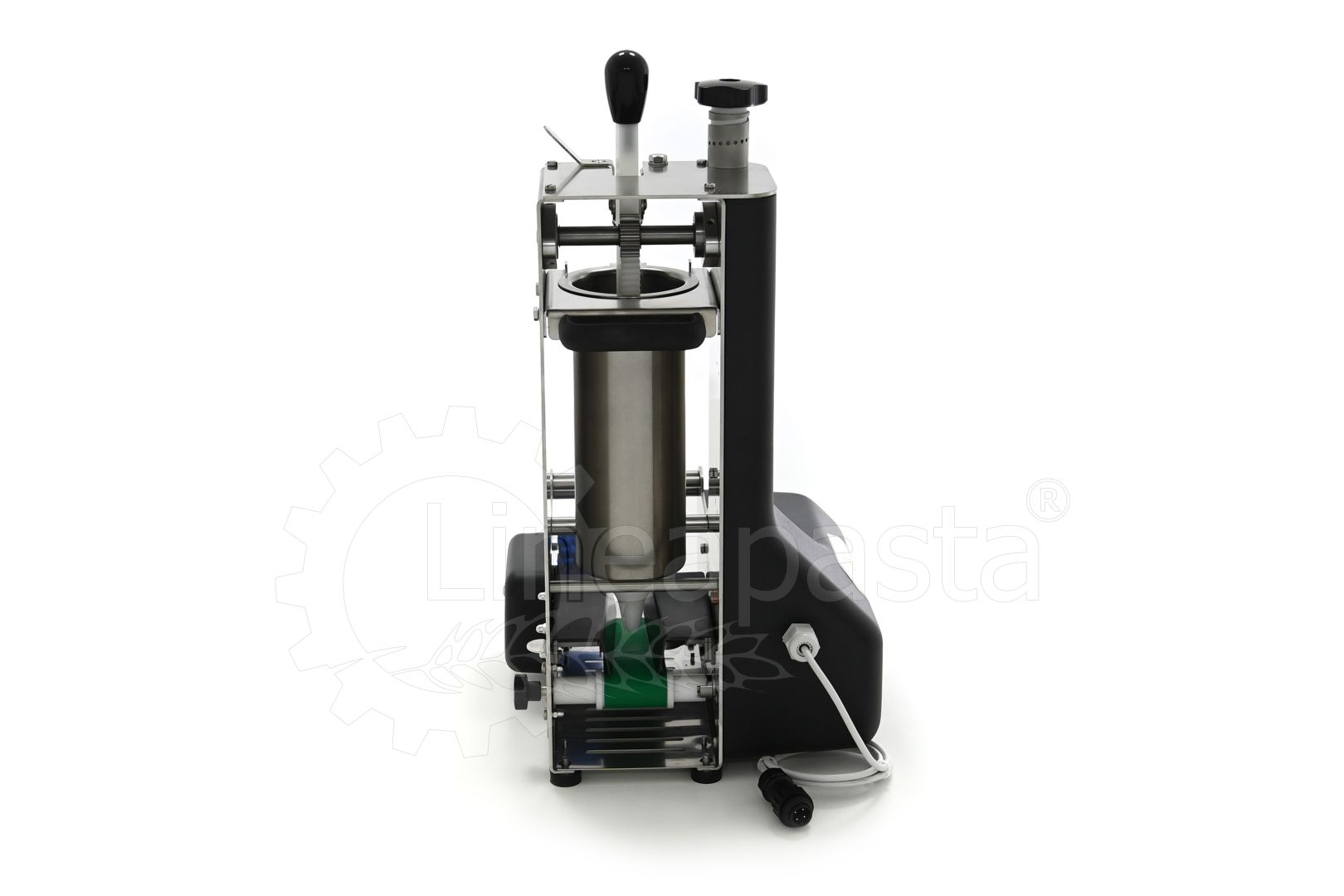

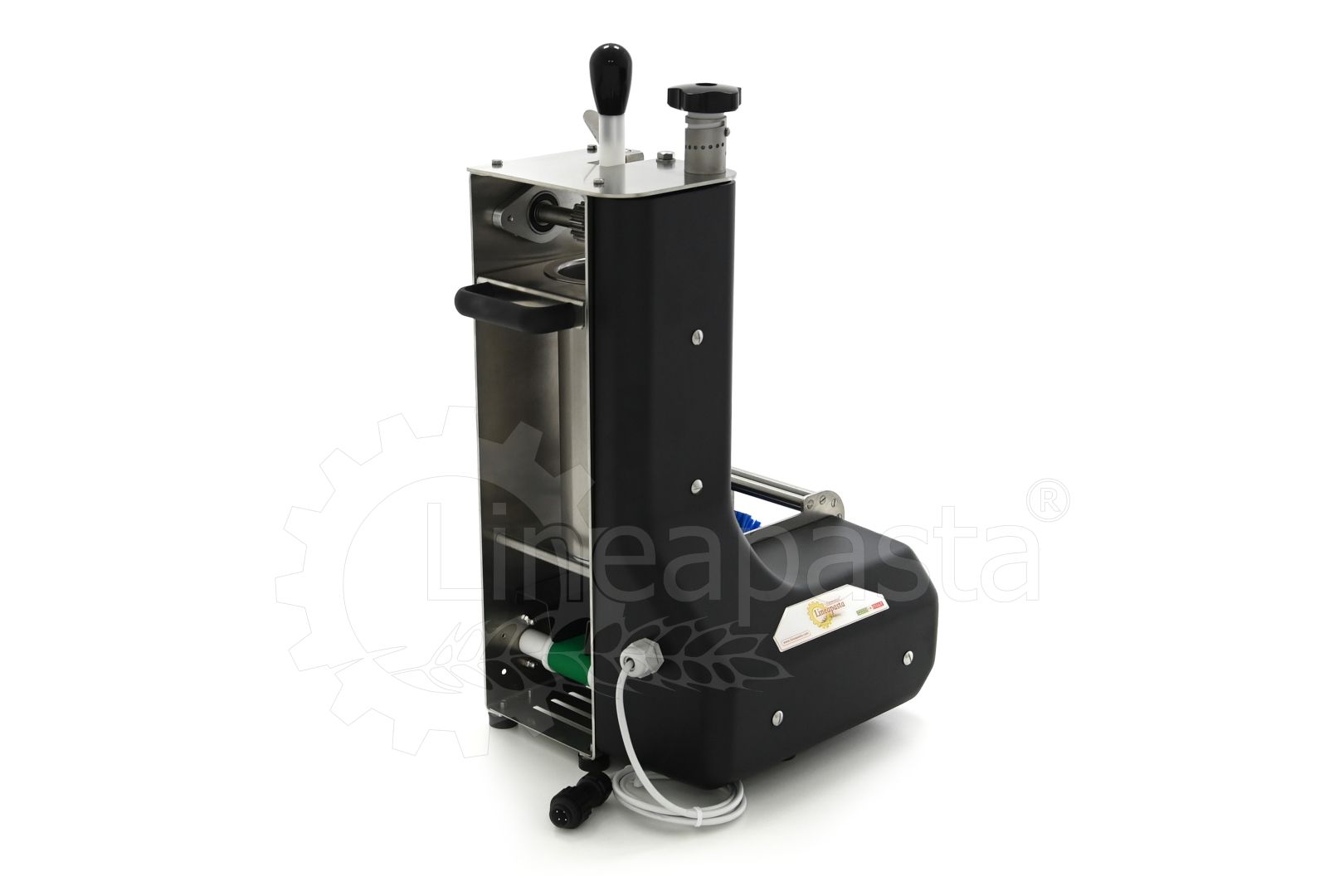

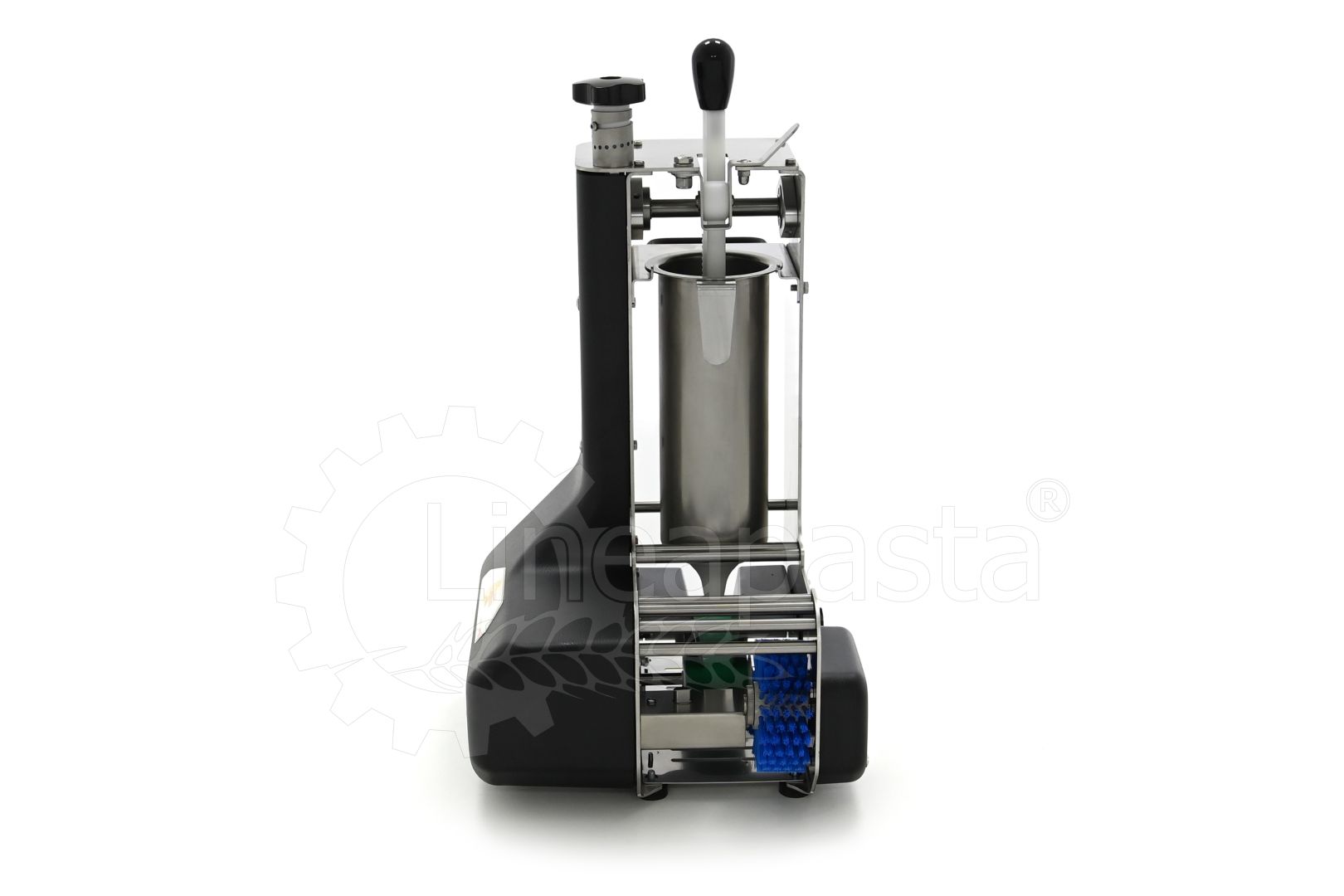

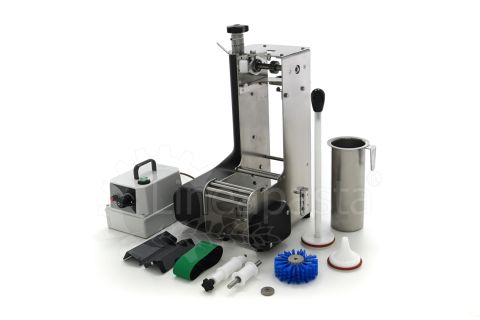

The RFV automatic ravioli machine is an electric single sheet ravioli machine suitable for producing ravioli in different formats. The RFV model uses a patented sheet with a V-fold for perfect adaptability to the shaping of the ravioli. The filling is automatically inserted inside the dough sheet which is then closed by means of a rotary mould that gives the desired shape according to the mould inserted. Practical, flexible and fast, each component in contact with the product can be removed to ensure an efficient and practical cleaning of the machine. It has different molds for shape and size. Thanks to the presence of the funnel (with Ø12 mm hole), it has a practical system for adjusting the amount of filling.

The pasta sheet die is included with the Ravioli machine.

The RFV automatic ravioli machine can be combined with the following machines:
- PastajetEVO

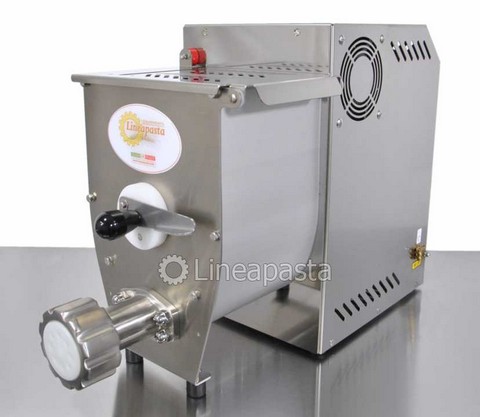

- Concerto Ciaopasta 5

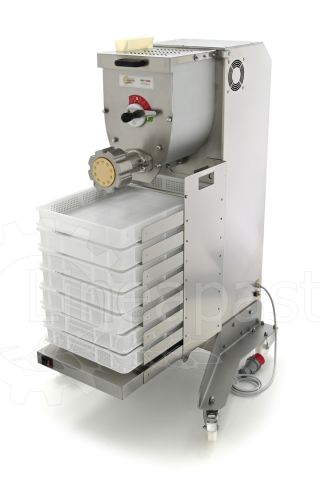

- Orchestra Ciaopasta 10 2 Speeds

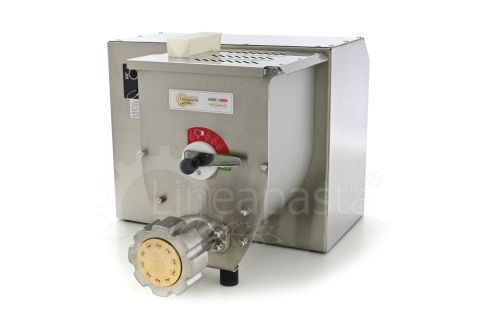

- Countertop Orchestra Ciaopasta 10 2 Speeds
- PV 4


OPTIONAL ACCESSORIES:

- Pasta sheet die connection kit for Concerto Ciaopasta 5/PastajetEVO
- Pasta sheet die connection kit for Orchestra Ciaopasta 10
- Pasta sheet die connection kit for PV 4
- Group for interchangeable ravioli moulds
- Interchangeable ravioli moulds
- Fixed ravioli moulds

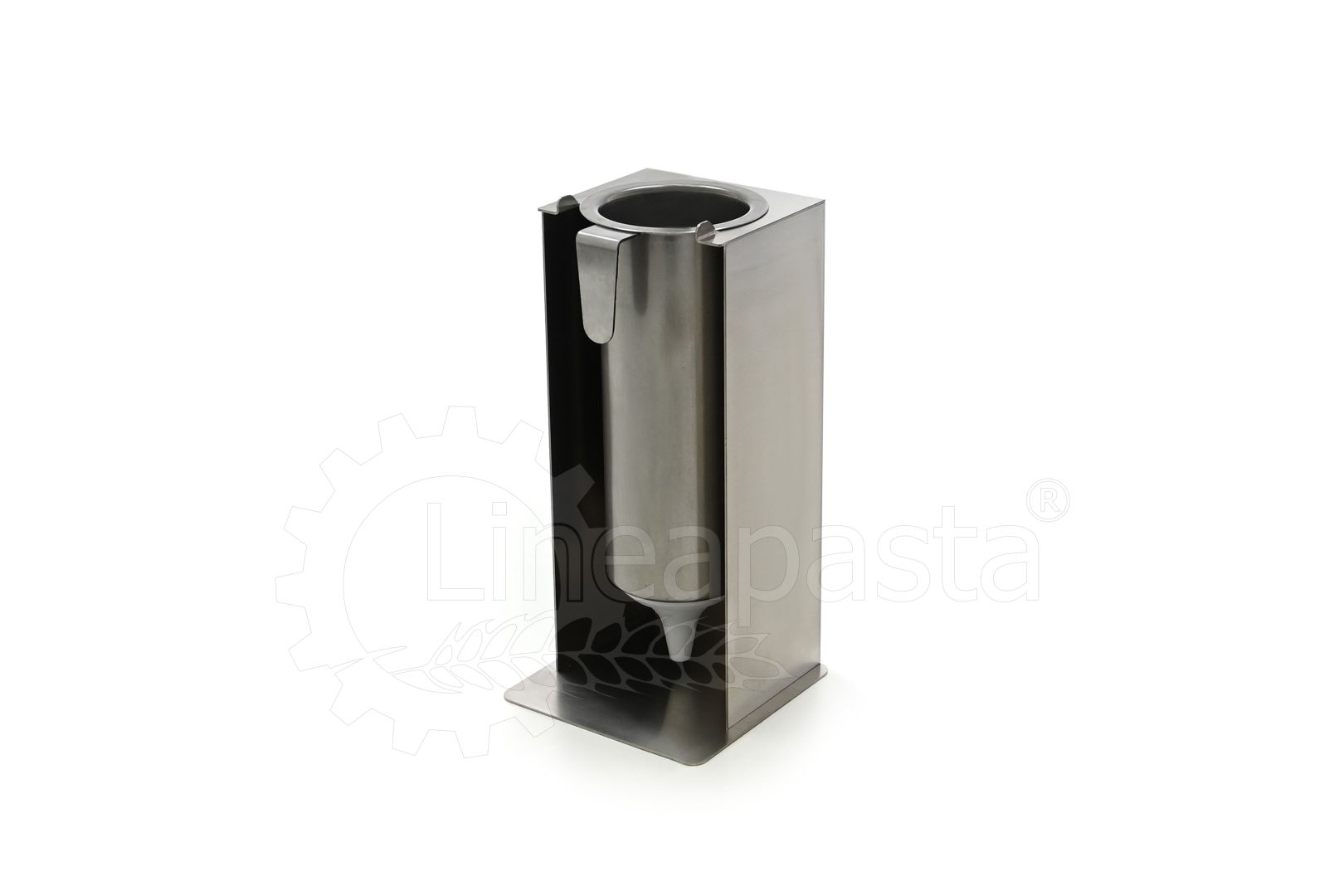

- Holder for filling funnel in stainless steel
- Second filling funnel kit with holder and funnel (with Ø8mm or Ø12 mm holes)
- Trolley for pasta machine (perforated trays not included)

RAVIOLI MOULDS AVAILABLE:

- Rectangular small serrated: mm 63x45
- Rectangular large serrated: mm 94x52
- Small serrated crescent: mm 63x45
- Large serrated crescent: mm 94x55
- Serrated square: mm 37x37
- Schlutzkrapfen smooth crescent: mm 63x39 - mm 94x45
- Triangular serrated: mm 94x45
- Heart shape: mm 63x45


TECHNICAL DATA:

- Motor voltage: 220V/50Hz 1Ph - 380V/50Hz 3Ph
- Power: 100W
- Dimensions: cm 31x34,5x56h
- Packaging dimensions: cm 68x51x46h
- Net weight: 20 kg
