Combined press for extruded pasta and ravioli PA55R

•
• Included recipe book

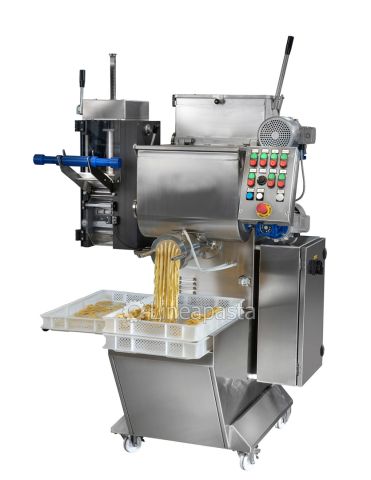

The combined press for extruded pasta and ravioli PA55R is a machine for the production of extruded and filled fresh pasta complete with double kneading vat and second tilting vat that allows a continuous production of short pasta, long pasta, pasta sheet and ravioli. The press is equipped with a fan that allows pre-drying of the pasta, it also has an independent external motorization. The press is also equipped with an electronic cutter to adjust the length of the pasta cut. This machine is complete with ravioli machine for the production of double sheet ravioli using interchangeable molds consisting of 4 forming and cutting rollers, scraping knives, gears and filling dispenser, with the possibility of easily adjusting the thickness of the sheet and the quantity of the filling by means of a knob. The combined PA55R is also equipped with an atomatic roller for the production of pasta sheet rolls that will be used to feed the ravioli machine. The PA55R is built entirely in stainless steel and the parts are removable for easy cleaning. The structure is wheeled to allow easy movement. It is equipped with an electrical panel and control panel that reflects the safety directives according to the current EEC standards.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.


INCLUDED ACCESSORIES:

- 1 pasta sheet roller
- 1 filling cylinder, for ravioli machine
- 1 double sheet ravioli mold (at choice)
- 1 pasta sheet die
- 1 electronic cutter for short pasta complete with stainless steel protection grid
- 1 stainless steel mesh filter per die
- 1 set of knives with 1 and 2 blades
- 1 equipment kit consisting of: 3 rolling pins, 2 pasta trays and 1 set of adjustment keys

OPTIONAL ACCESSORIES:

- Extra ravioli mold
- Brass-bronze dies
- Extra stainless steel filling cylinder

TECHNICAL DATA:

- Sheet width: 120 mm
- Dimensions: cm 113x124x149h
- Weight: 350 kg
- Installed power: 4 kW
- Power: 380V/50Hz 3Ph - 220V/60Hz 3Ph
- Pasta production: 55 kg/h
- Hourly production: 60 kg/h
