Fresh pasta machine PS 20

•
•
•
•
•
•

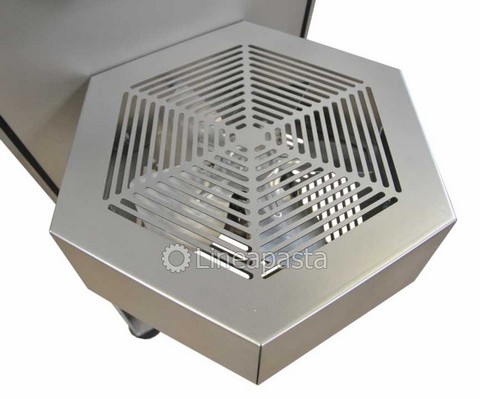

• Fan

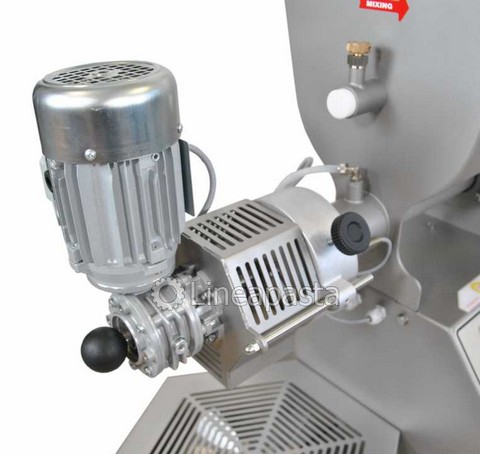

• Electronic rotary knife

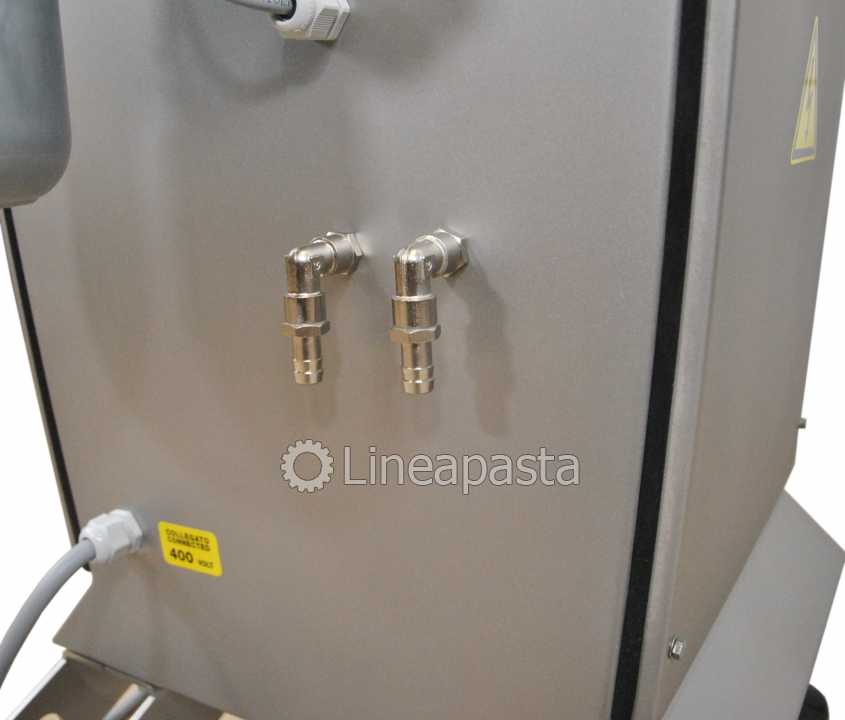

• Water cooling system

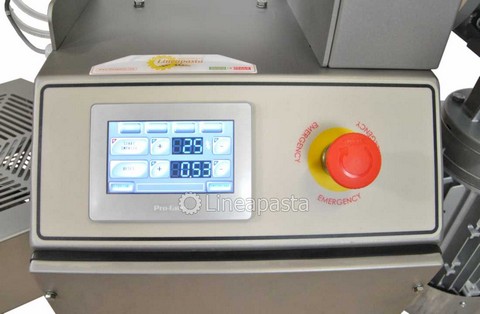

• Touch screen control panel
•

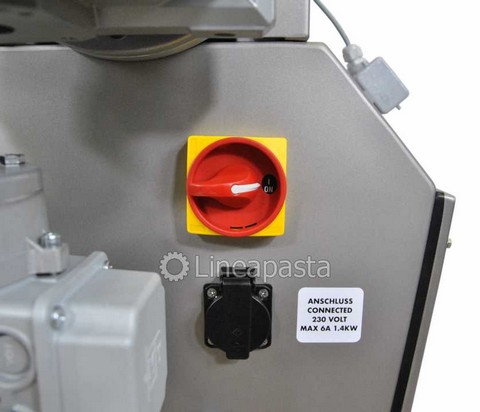

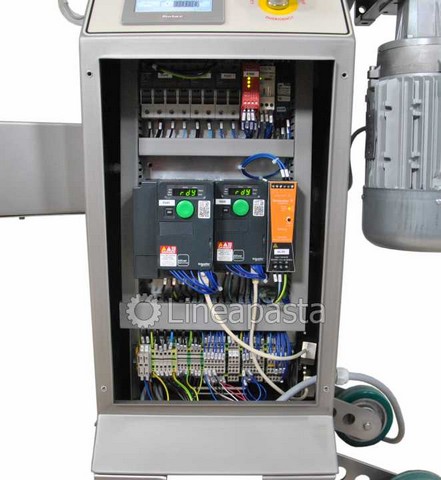

• Electrical panel

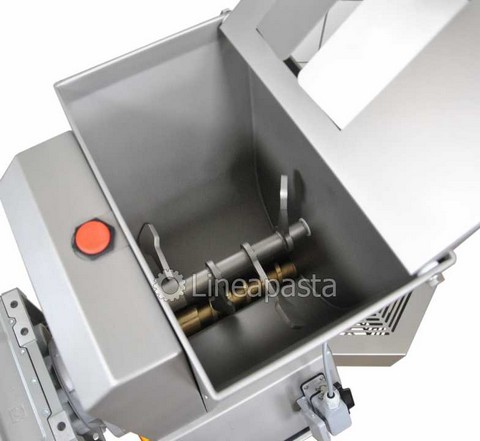

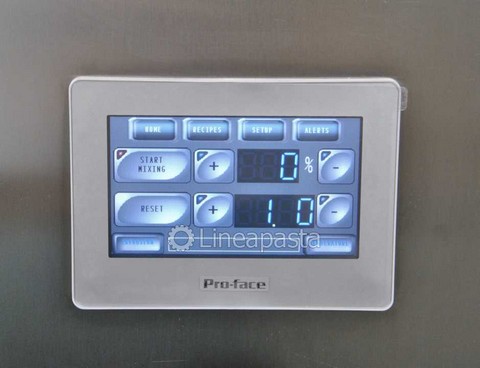

• Mixing adjustment

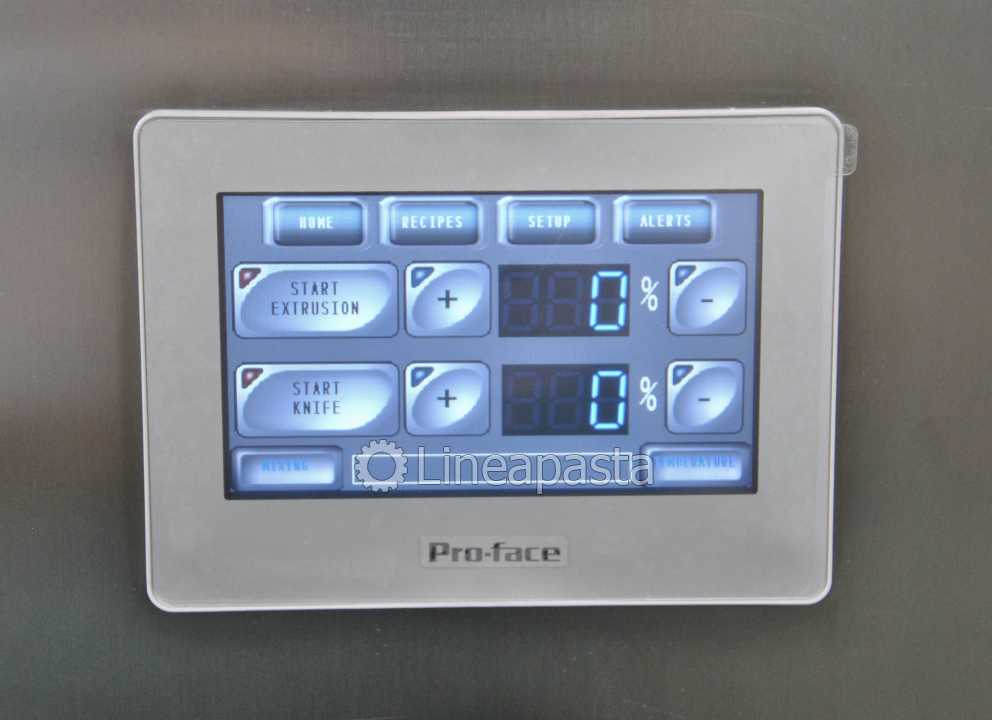

• Extrusion and knife speed adjustment

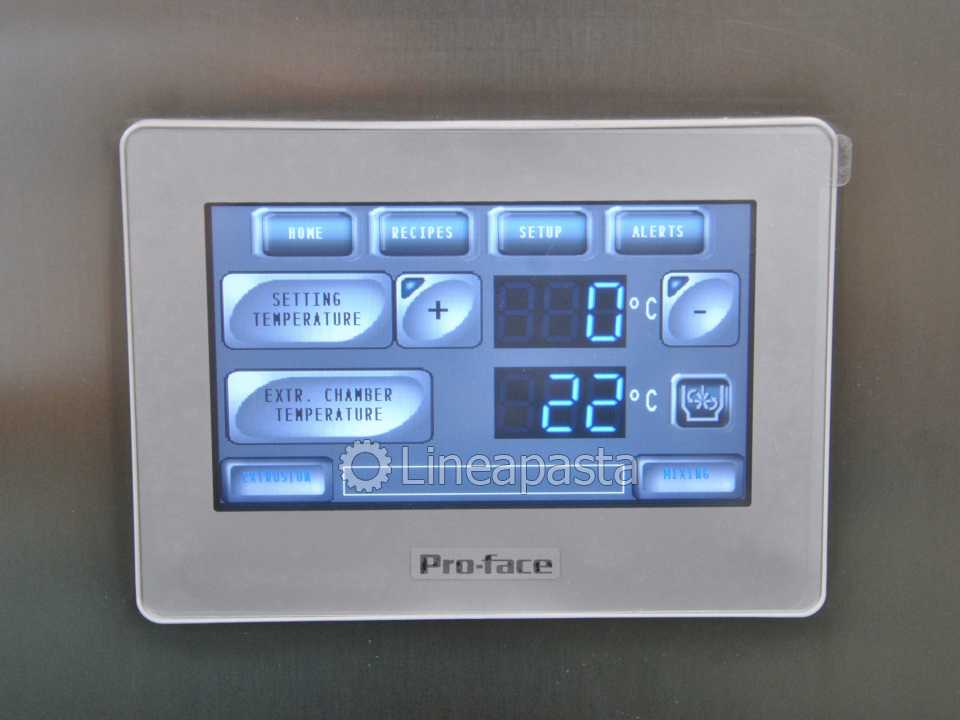

• Temperature adjustment of the extrusion cylinder
• Included recipe book

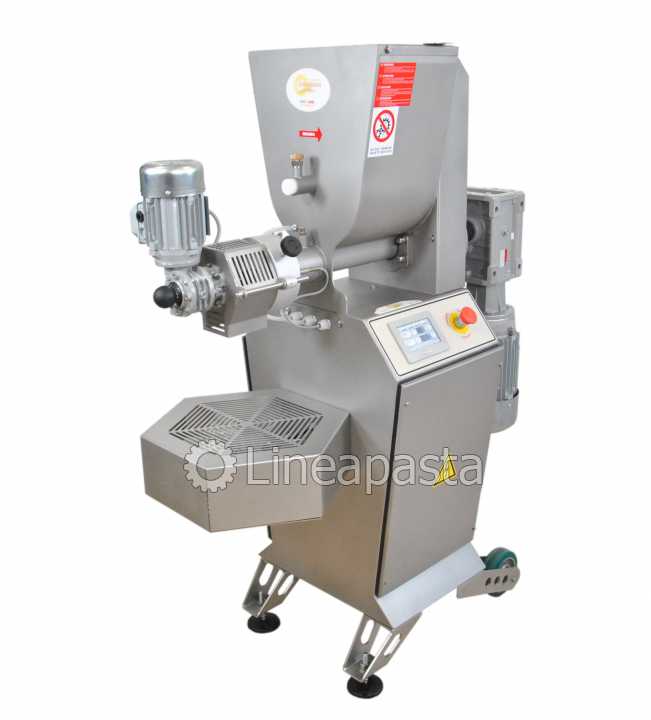

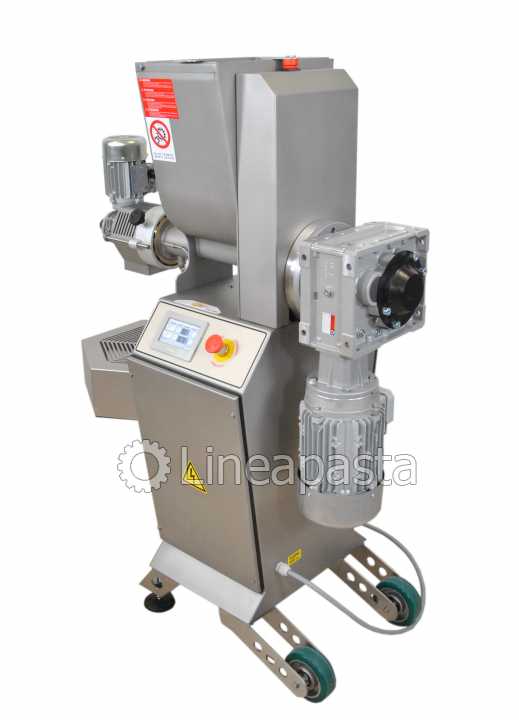

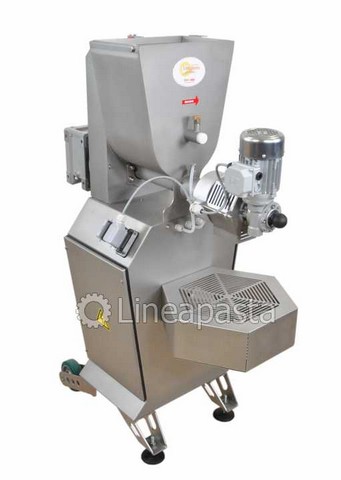

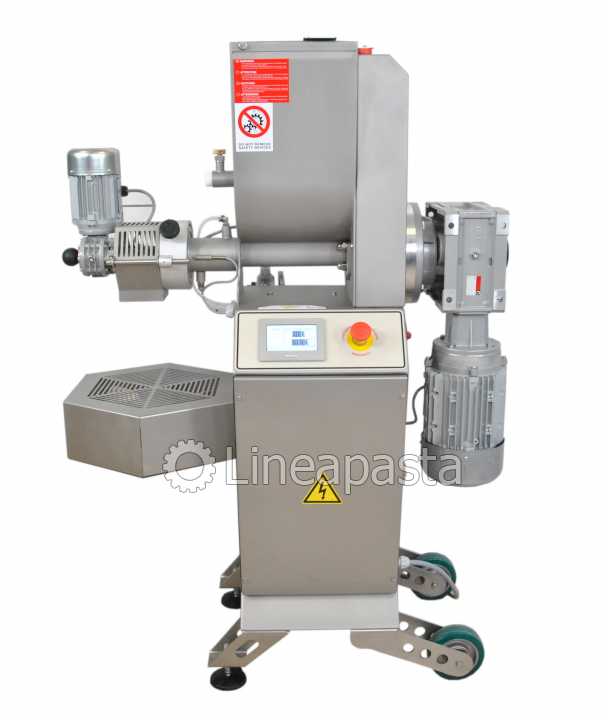

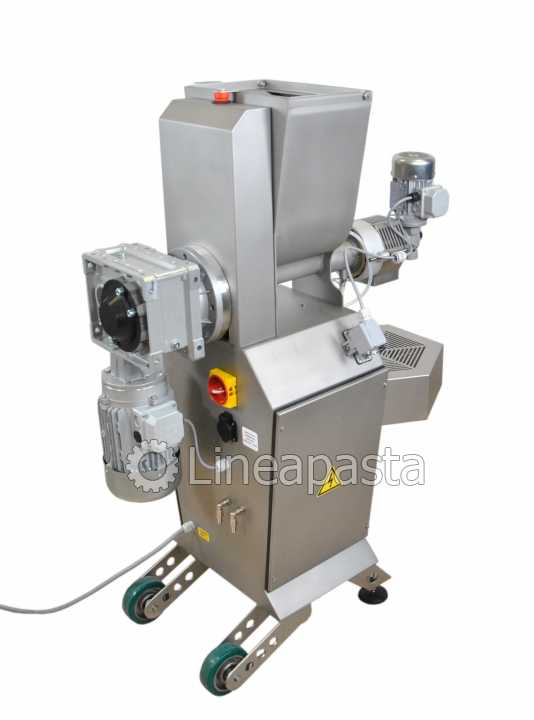

The PS 20 fresh pasta machine is a pasta machine suitable for restaurants and small pasta factories. Entirely made of stainless steel for easy cleaning and mounted on swivel wheels and locking feet. It is equipped with a fan for a first drying of the pasta. It is also possible to extrude for many consecutive hours without having to stop to let the extrusion cylinder cool, thanks to the water cooling system. The PS 20 press is a professional pasta machine with a production of 18 Kg/h suitable for producing any size of fresh short pasta, long pasta and adjustable pastry. The pasta machine is complete with an automatic knife for an easier production of short pasta. It is also equipped with a digital touch screen control panel. The machine is equipped with a touch screen control system with the ability to load and customize recipes according to your production needs, customizing the extrusion speed, the knife speed and the temperature of the extrusion cylinder.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.


TECHNICAL FEATURES:

- Water cooling system
- Fan for initial drying
- Double speed motor
- Automatic knife for short pasta
- Digital touch screen control panel
- Variable extrusion speed

OPTIONAL ACCESSORIES:

- Dies in brass/bronze alloy (with/without Teflon inserts) for the production of the type of pasta according to the chosen format.
- Adjustable metal die for pasta sheet
- Kit for penne (with/without Teflon inserts)

TECHNICAL DATA:

- Productivity: 10 kg/h
- Vat capacity: 5 kg
- Dimension: cm 91x48x130h
- Weight: 120 kg
- Installed power: 2 kW
- Power: 220V/60Hz 3Ph - 380V/50Hz 3Ph
- Die size: Ø 94 mm
