Fresh pasta maker TR 150

•
•
• Pasta mixer 80 Kg MS 80
• Conveyor belt NS TR

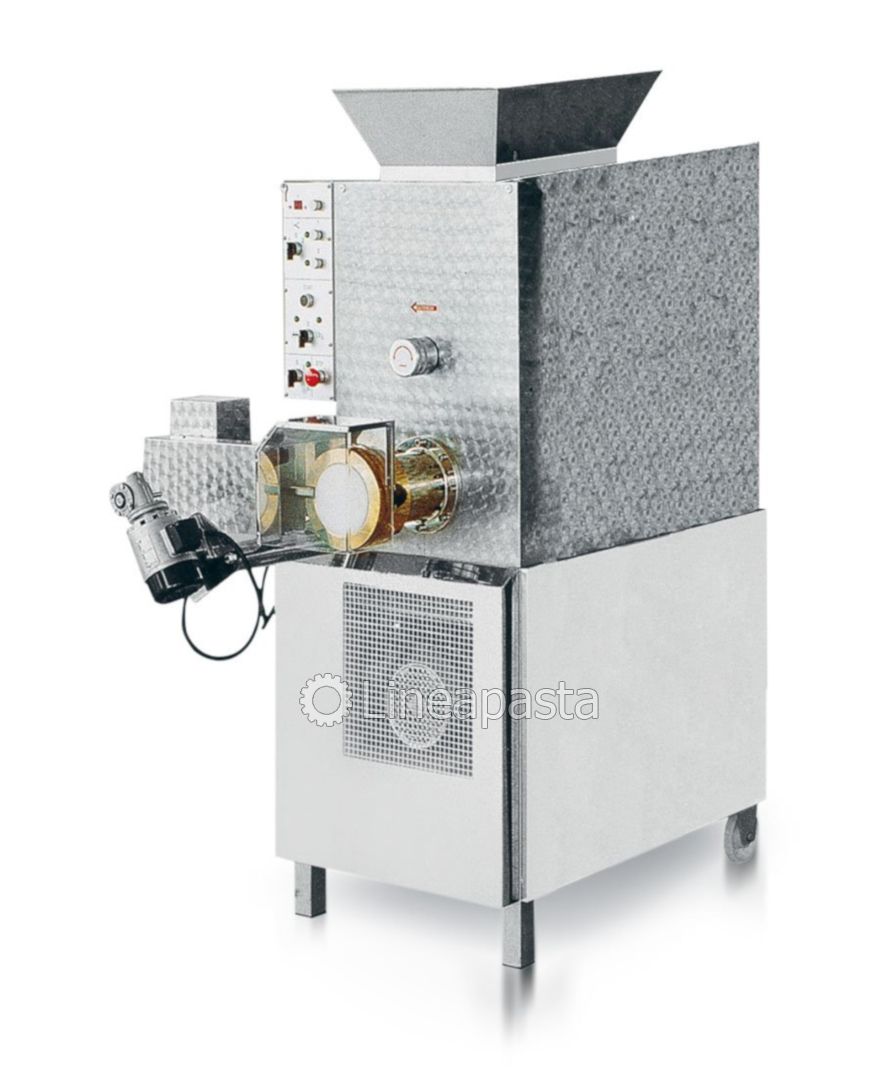

TR 150 fresh pasta machine is a machine equipped with a mixing vat with a capacity of 70kg of dough (flour + liquids), capable of reaching a production of 85 kg/h of short and long pasta, depending on the die used.
TR 150 includes: a electronic cutter for short cut pasta and a timer knife for long cut pasta; a water cooling system to keep the temperature of the extrusion cylinder constant, allowing production for several consecutive hours; a support with a built-in fan for initial surface drying of the freshly extruded pasta; a hopper to facilitate and speed up the loading of ingredients and a perforated pasta tray.

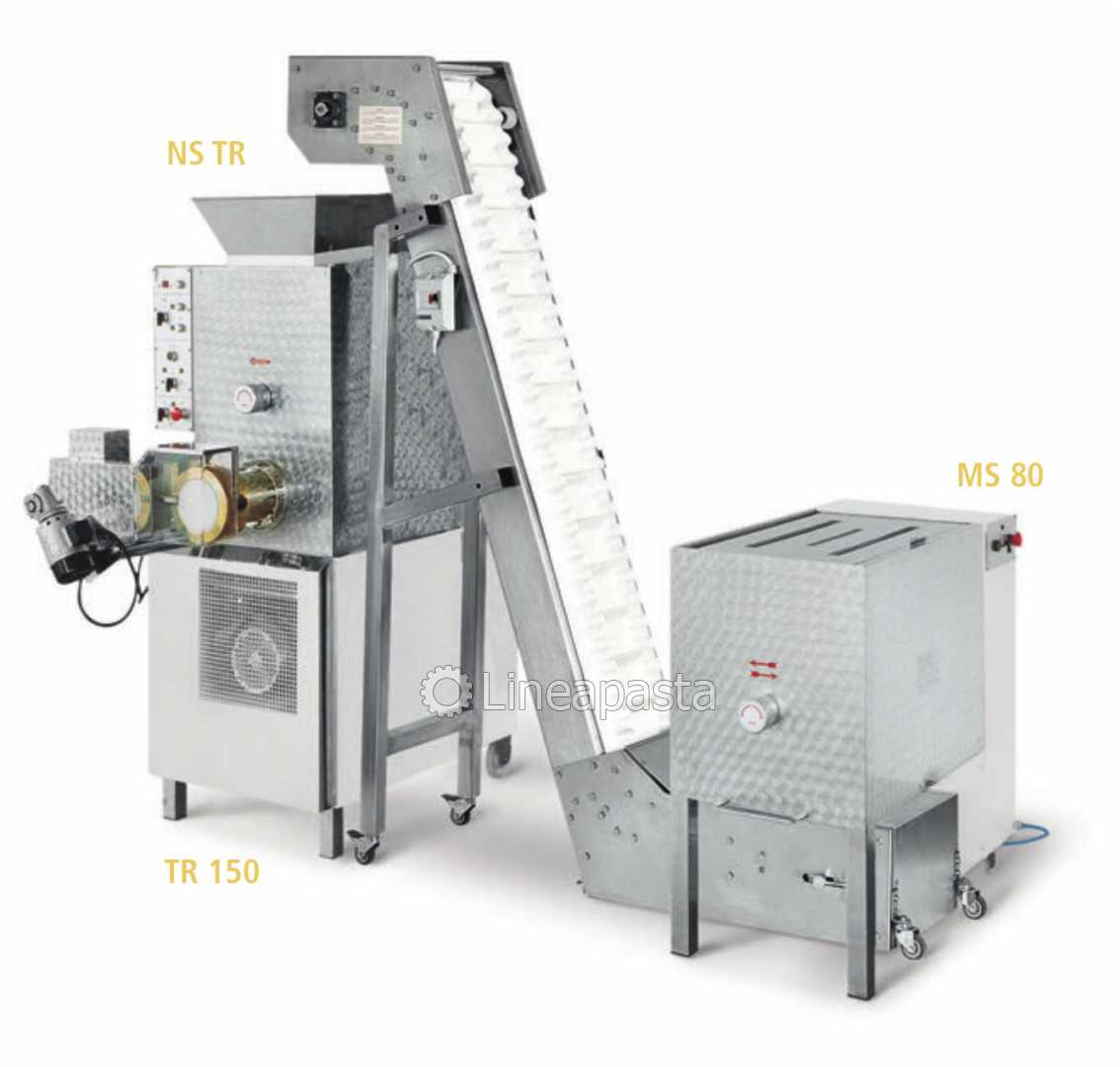

It is possible to combine the machine with two optional accessories to make it continuous production: the NS TR conveyor belt and the MS 80 dough mixer. These allow you to reach a maximum production of 150kg/h.

The entire structure of the machine is made of stainless steel while all the parts in contact with the dough are made of stainless steel or material suitable for contact with food. Thanks to the free access to the machine, it is possible to easily disassemble the working parts to obtain a complete cleaning at the end of production.

TR 150 does not include any dies.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.


TECHNICAL FEATURES:

- Structure in stainless steel
- Short cut pasta cutter
- Long cut pasta cutter
- Water cooling system
- Cooling fan
- Hopper
- 1 pasta tray

OPTIONAL ACCESSORIES:

- Brass/bronze dies for the production of the pasta type depending on the chosen format

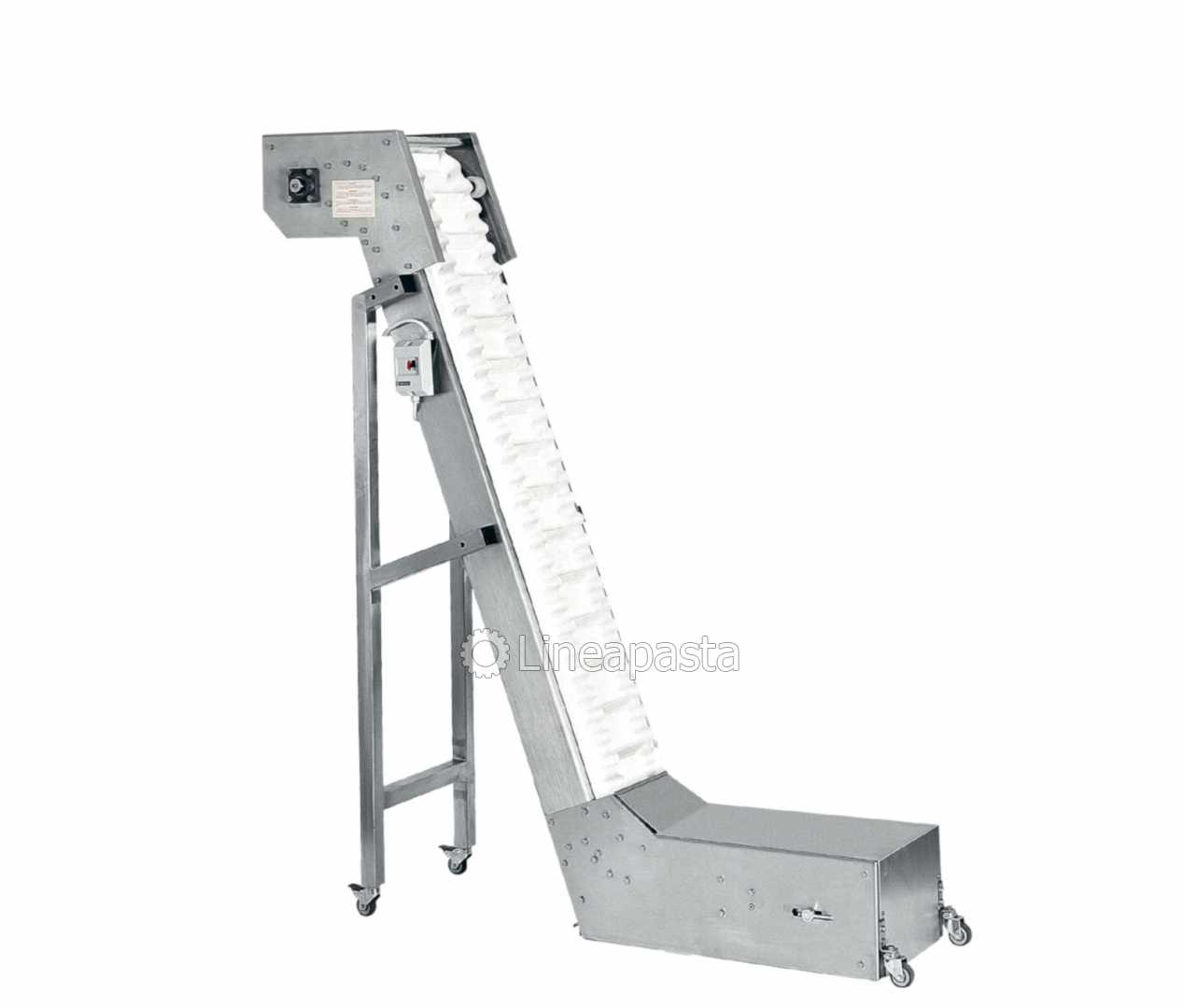

- Conveyor belt with wheels NS TR

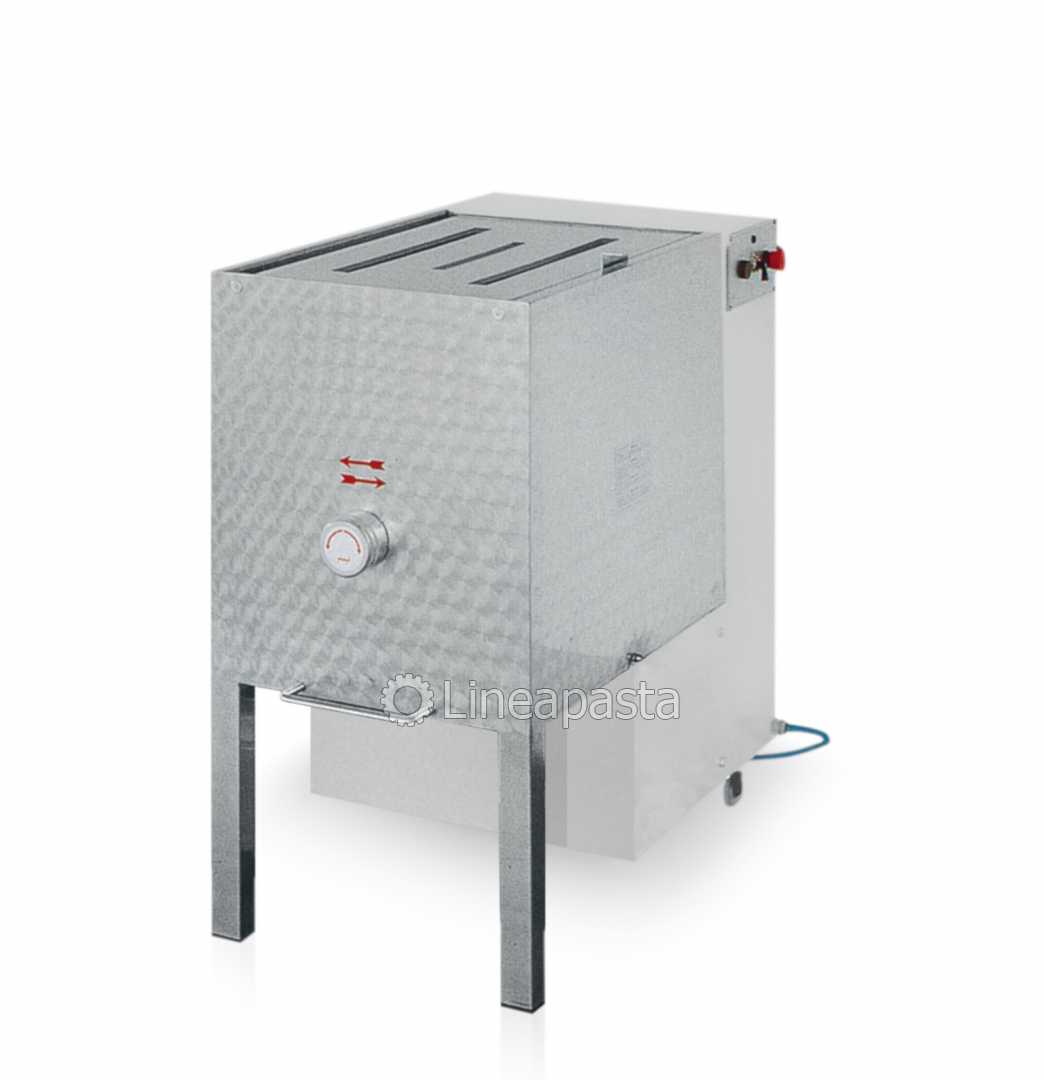

- Dough mixer MS 80
- Perforated pasta trays

TECHNICAL DATA:

- Power: 380V/50Hz 3Ph - 220V/60Hz 3Ph
- Vat capacity: 70 kg
- Production: 85 kg/h
- Die diameter: Ø 150 mm
- Dimensions: cm 84x135x176h
- Weight: 520 kg
- Pasta sheet width: 380 mm
- Three-phase motor power: 4 + 1.75 kW
