Fresh pasta machine PS 40

•
•
•
•
•
•

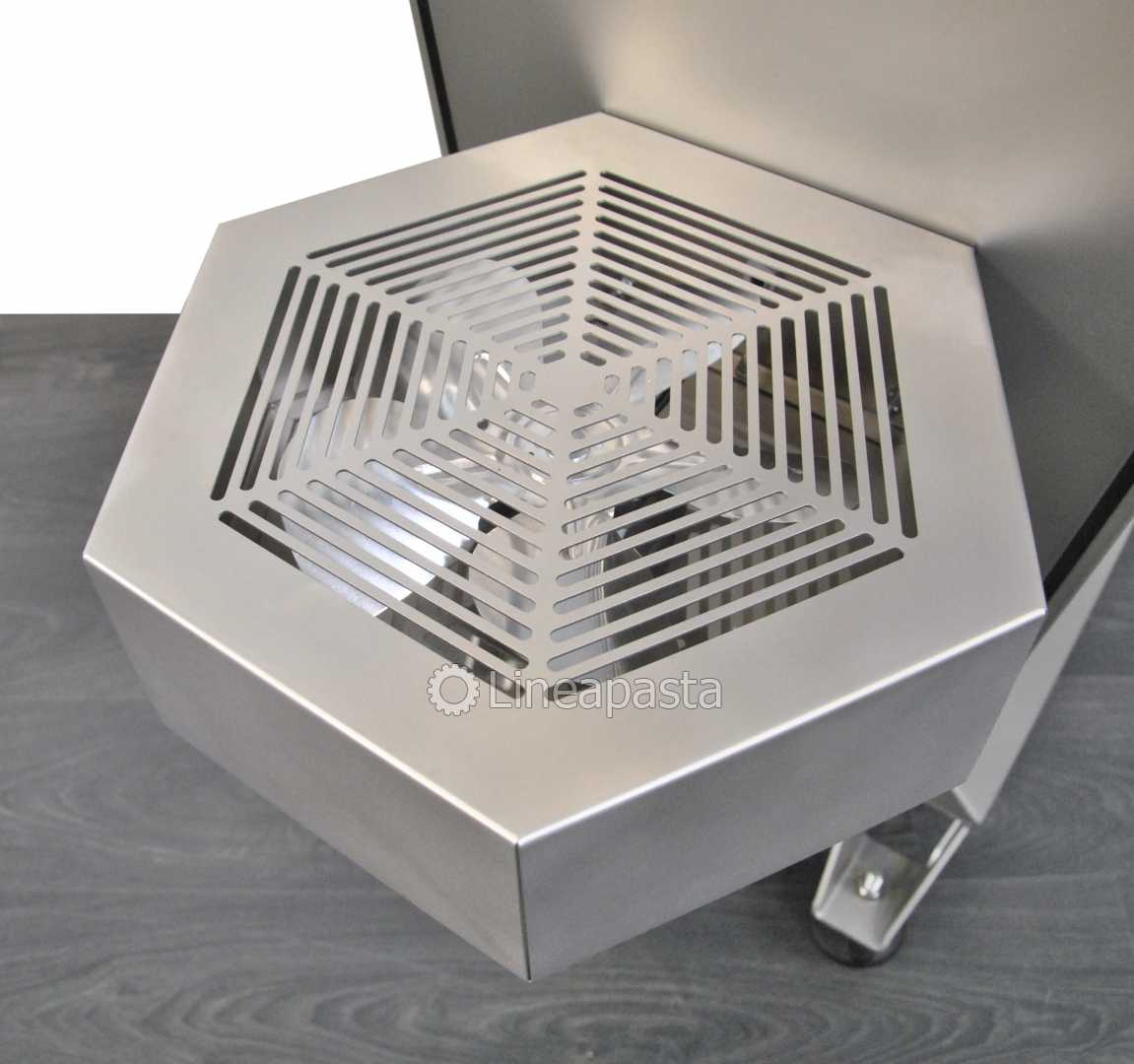

• Fan

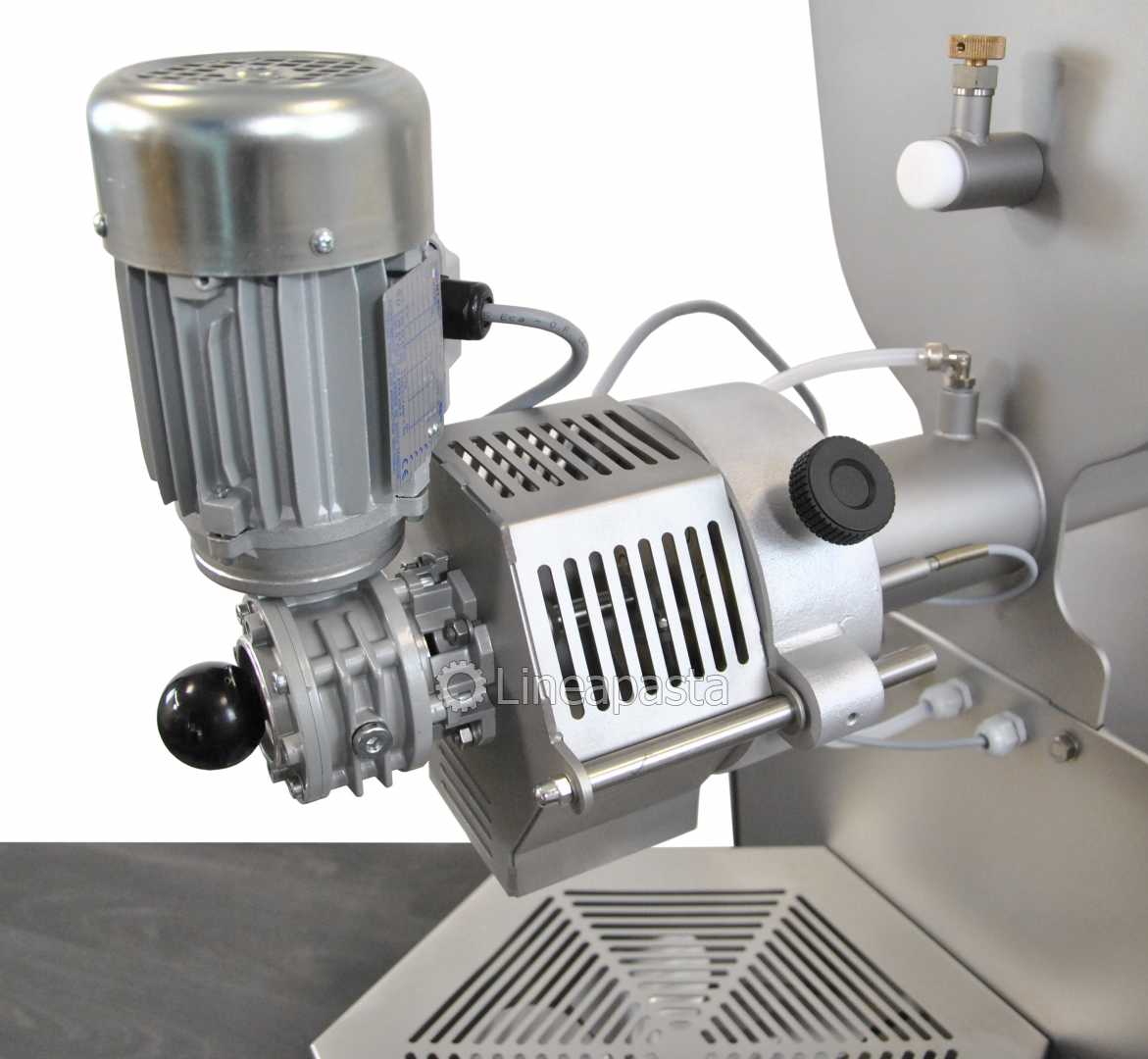

• Electronic rotary knife

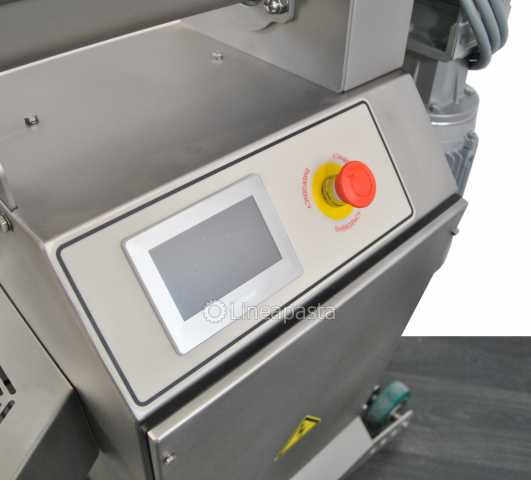

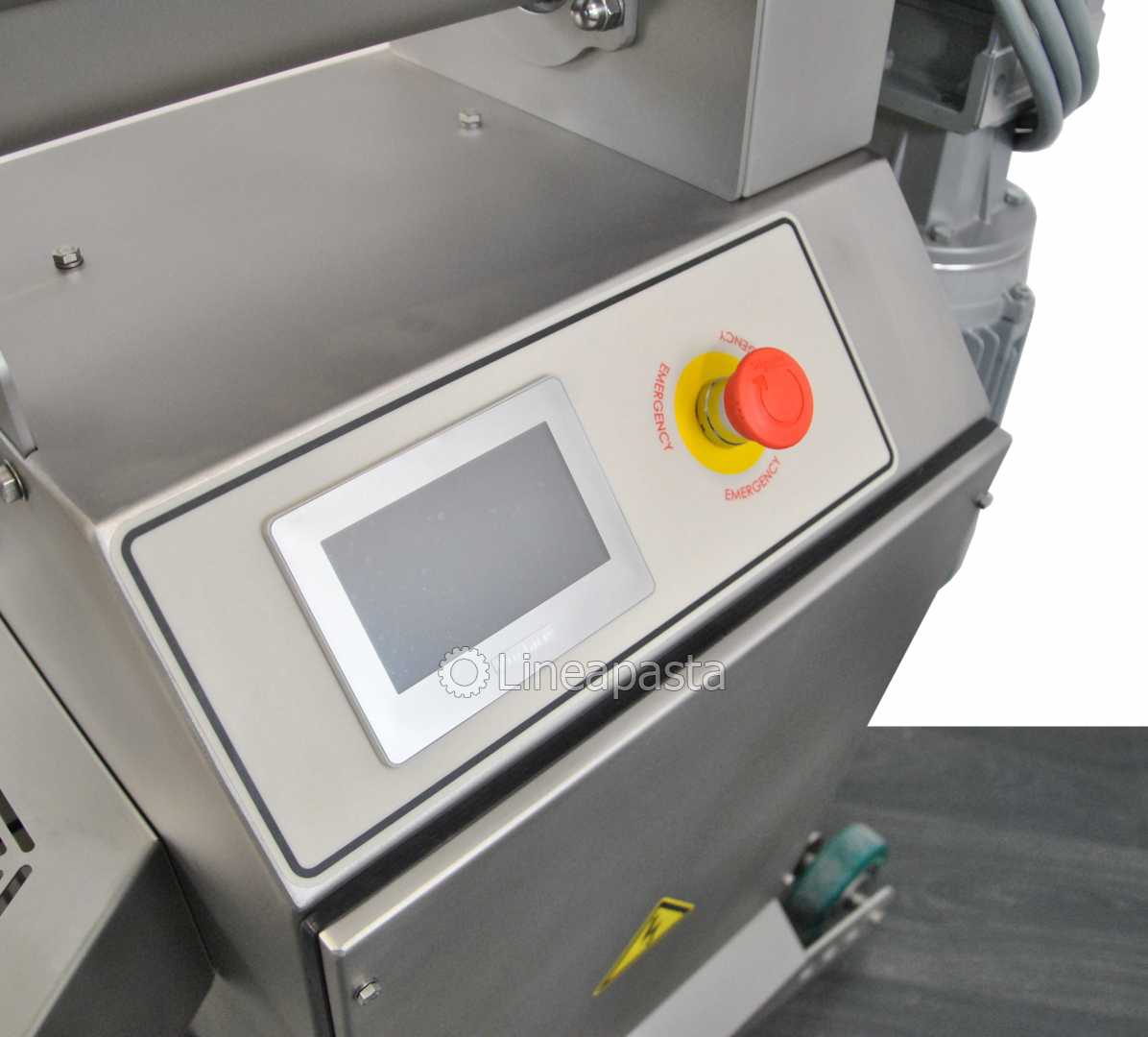

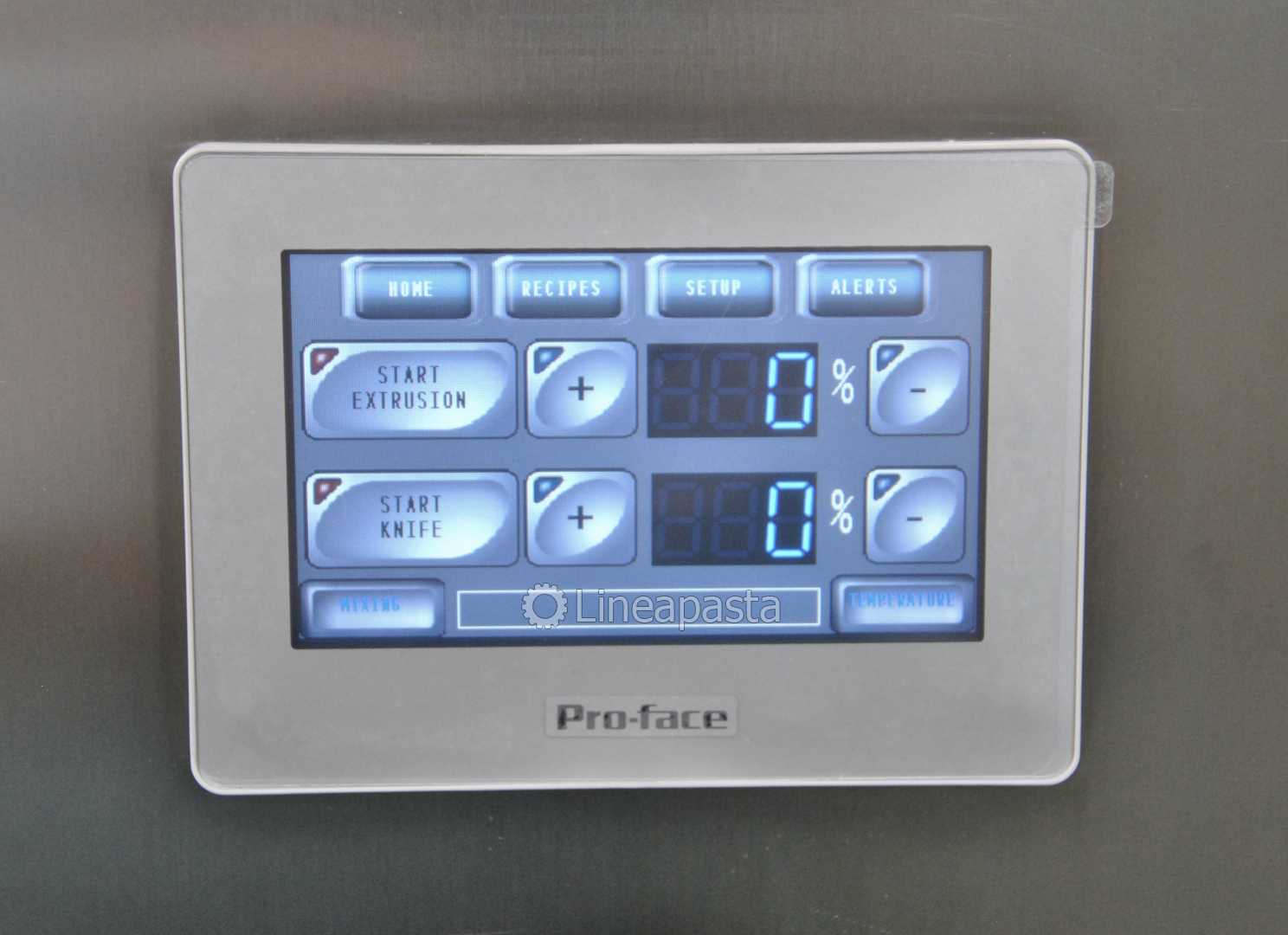

• Touch screen control panel

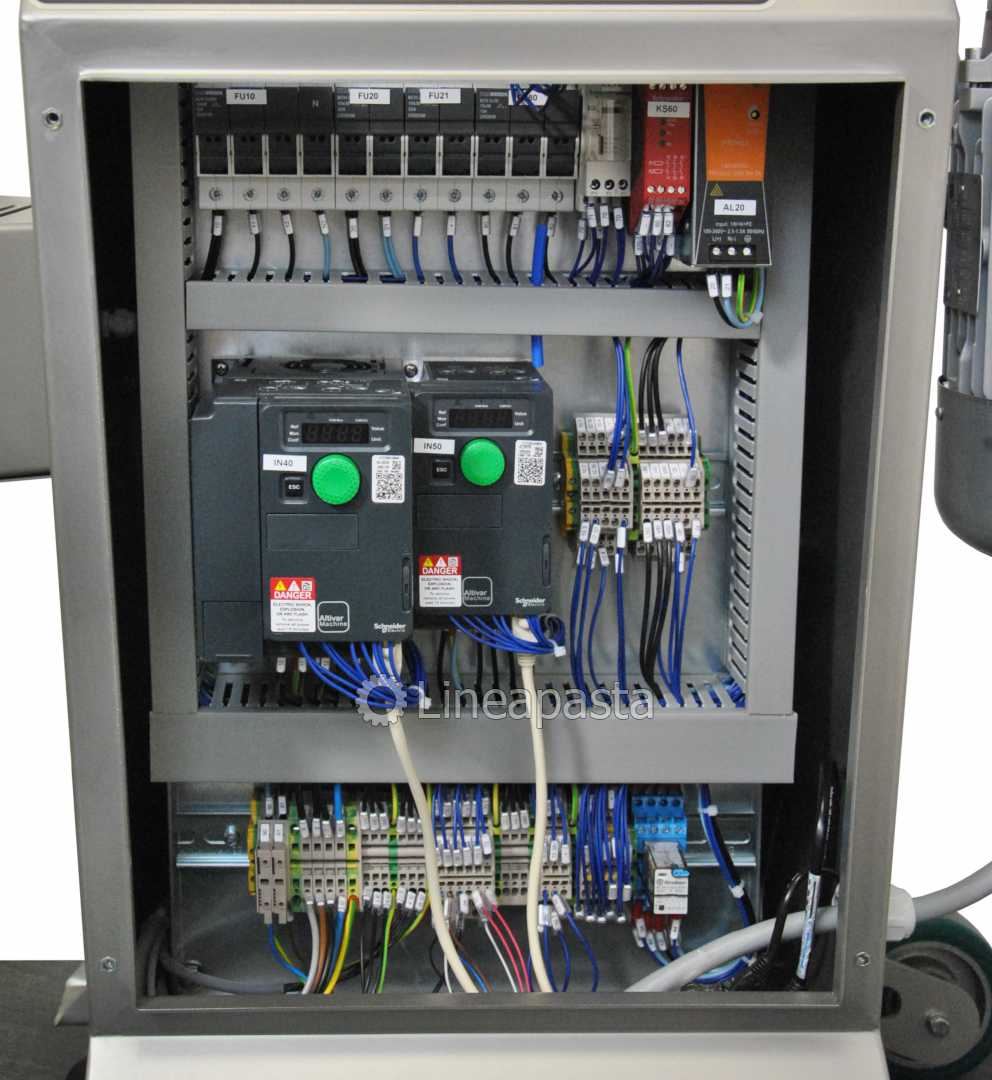

• Electrical panel

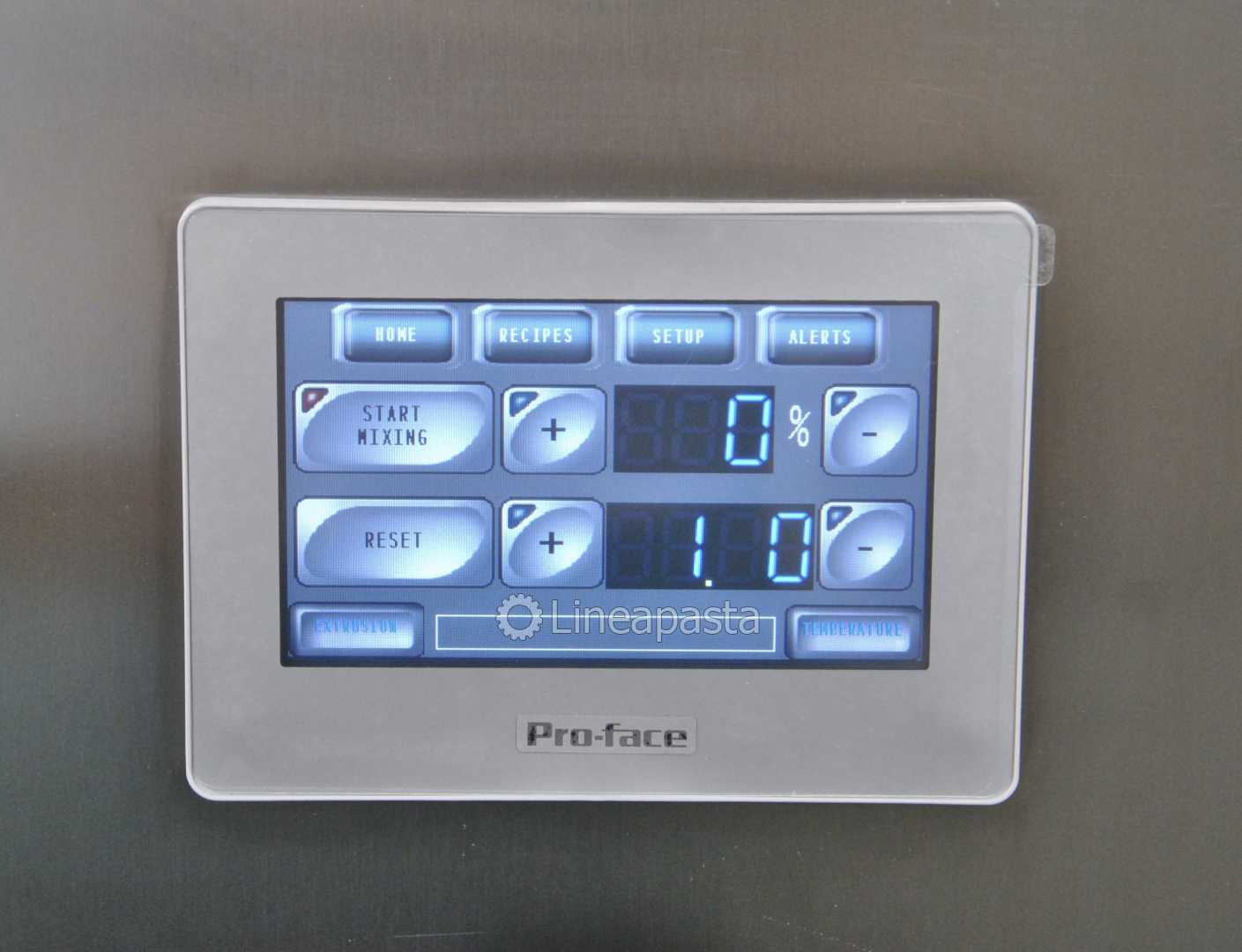

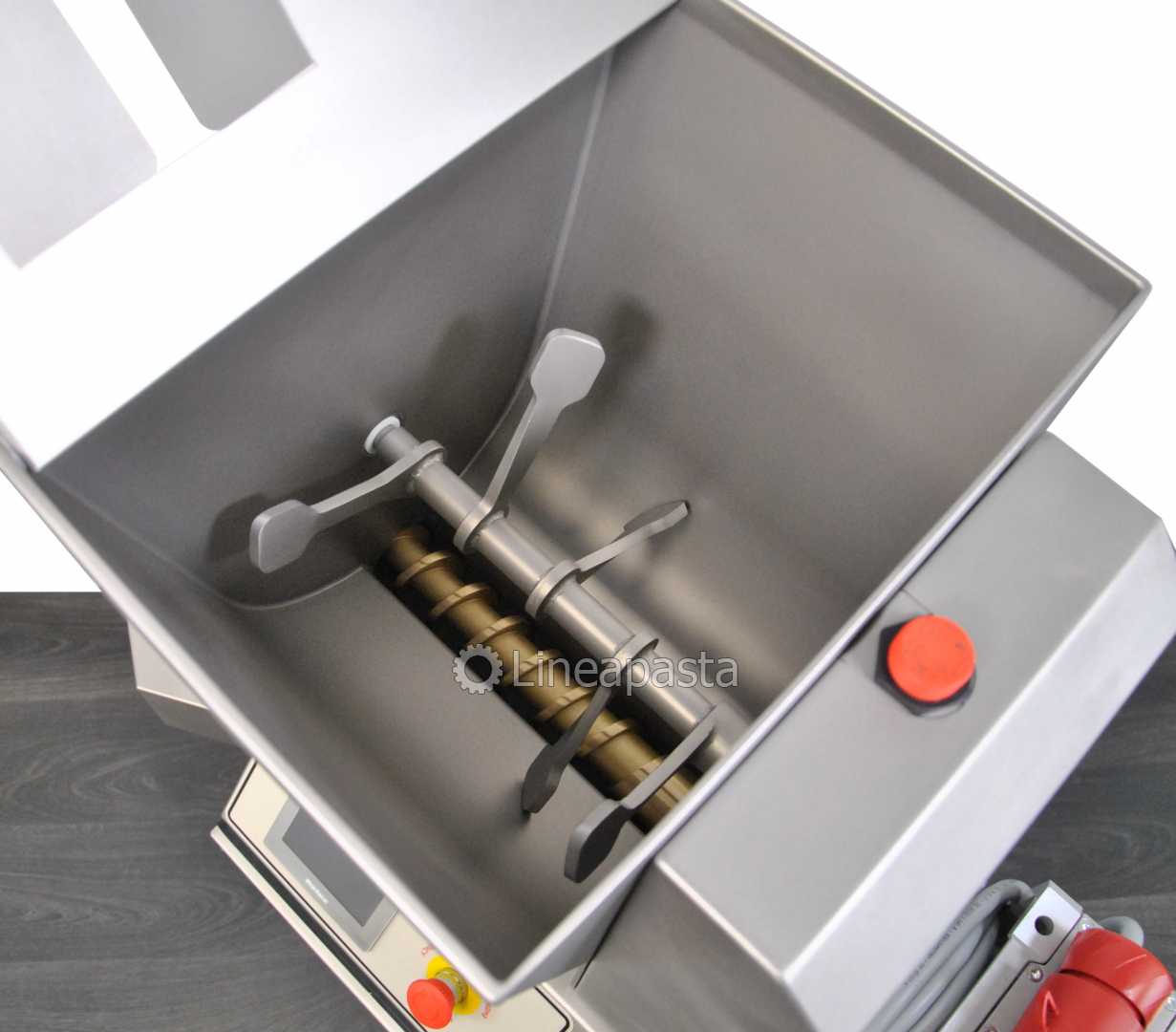

• Mixing adjustment
• Extrusion and knife speed adjustment

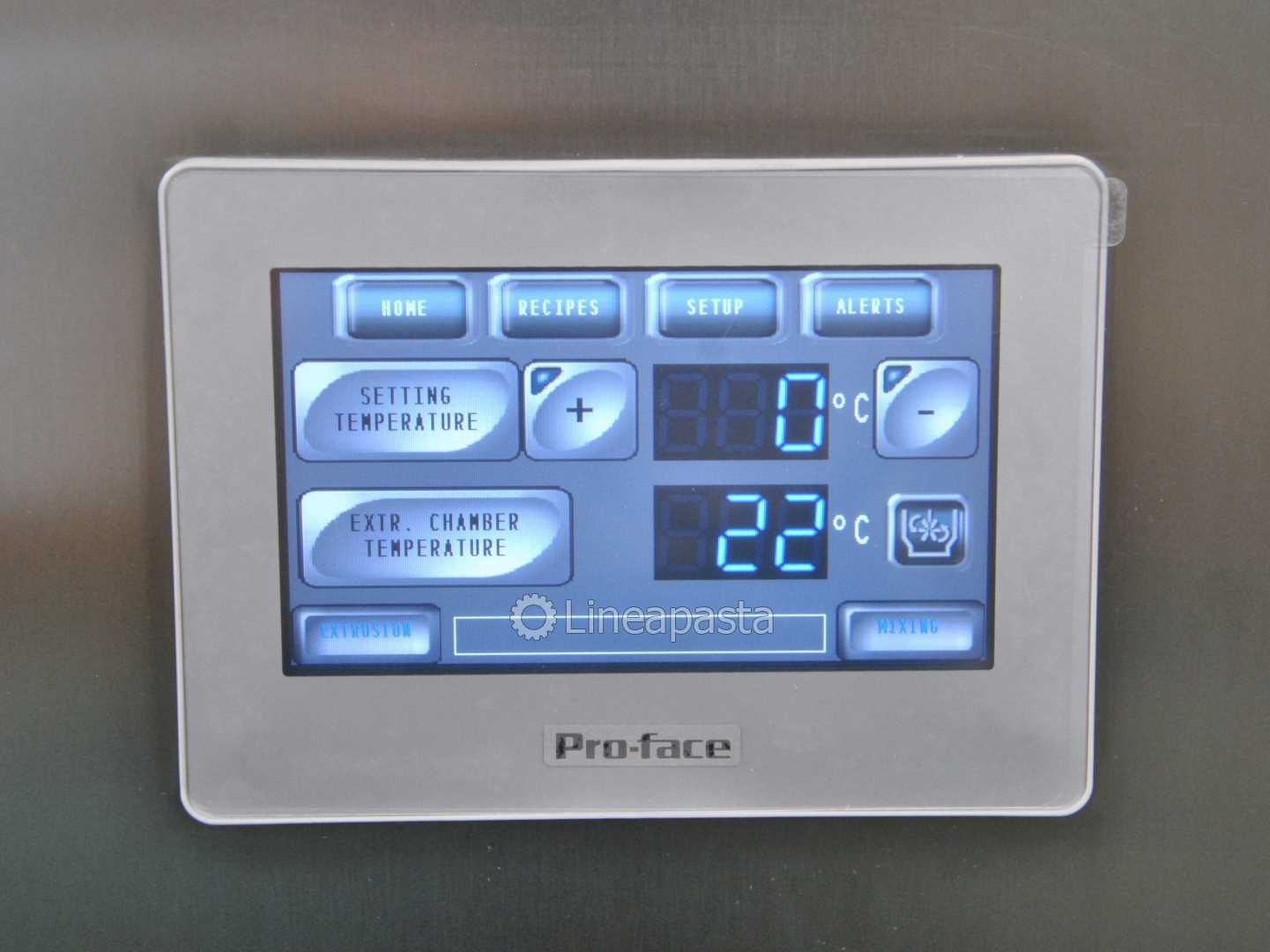

• Temperature adjustment of the extrusion cylinder
• Included recipe book

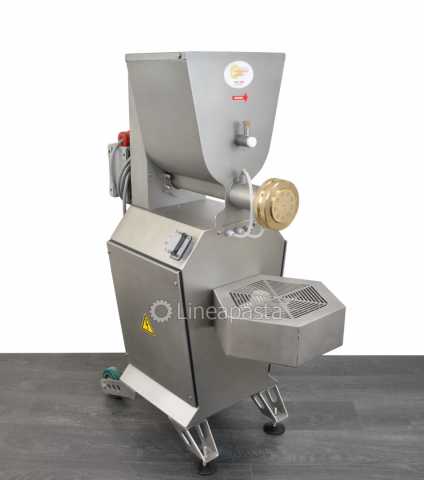

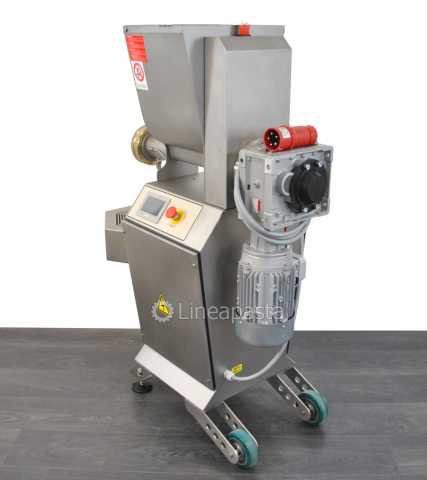

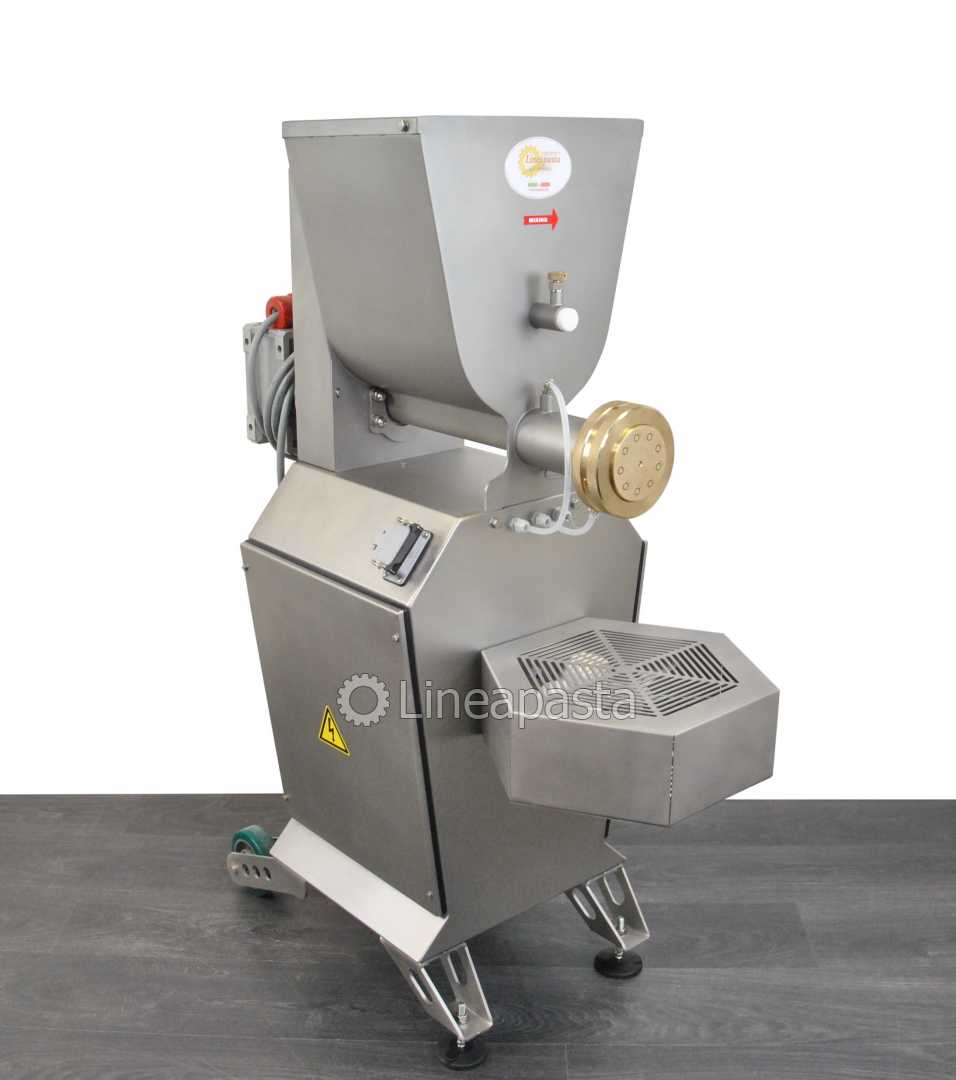

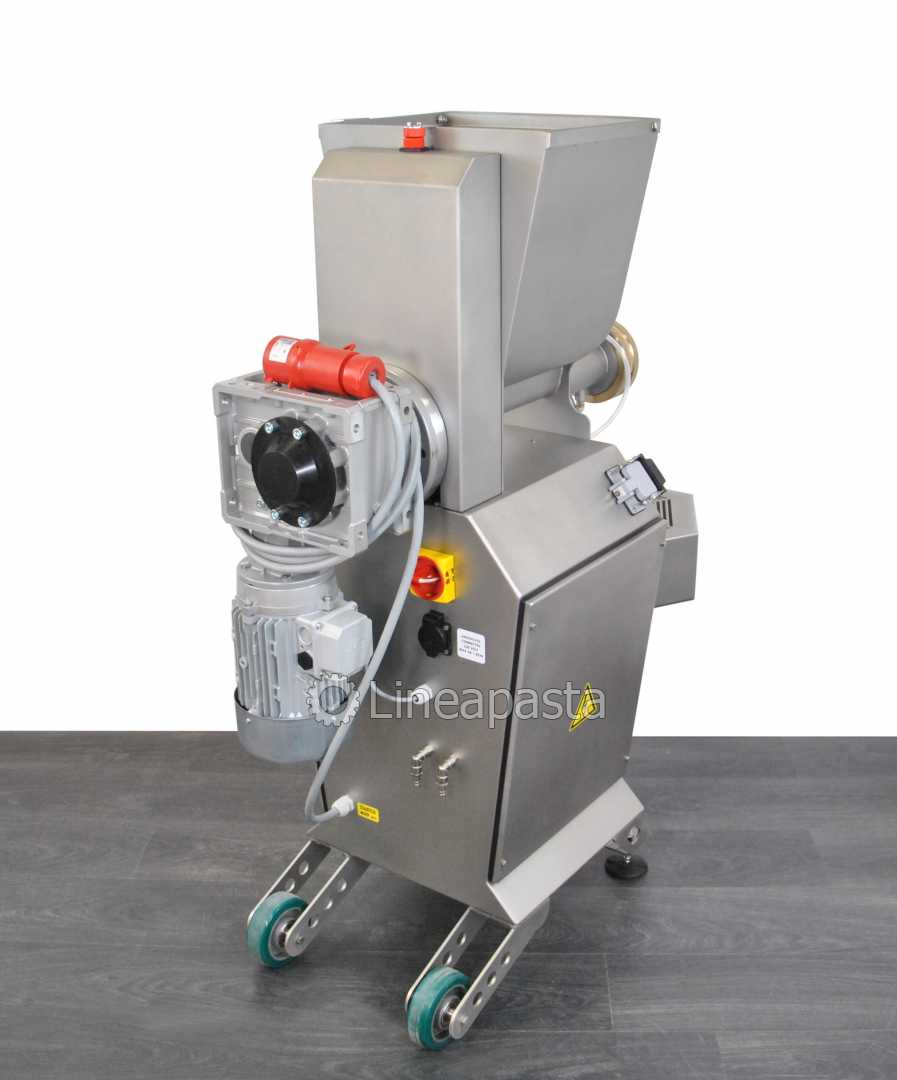

The PS 40 fresh pasta machine is a professional machine for semi-industrial production entirely made of Aisi 304 stainless steel and it is mounted on wheels and locking feet. It is complete with an electronic adjustable speed knife for the production of short pasta, and equipped with a fan for a first drying of the extruded pasta. The PS 40 pasta machine extrusion speed is 40 kg/h and thanks to the water cooling system it is possible to produce for many hours in a row without waiting for the extrusion cylinder to cool down, as it keeps the temperature low. The machine is equipped with a touch screen control system with the ability to load and customize recipes according to your production needs, customizing the extrusion speed, the knife speed and the temperature of the extrusion cylinder.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.


TECHNICAL FEATURES:

- Electronic adjustable speed knife for short pasta
- Double speed motor
- Water cooling system
- Fan for first drying
- Digital touch screen control panel
- Variable extrusion speed

OPTIONAL ACCESSORIES:

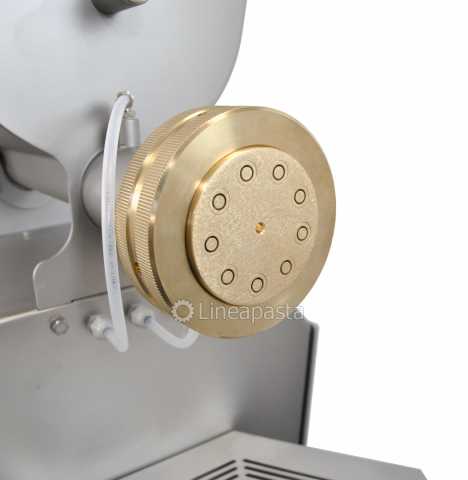

- Dies in brass/bronze alloy (with/without teflon inserts) for the production of different pasta shapes
- Adjustable metal die for pasta sheet
- Penne kit in metal (with/without Teflon inserts)
- Perforated pasta tray

TECHNICAL DATA:

- Productivity: 20 kg/h
- Vat capacity: 10 kg
- Machine size: cm 102x48x131h
- Machine weight: 148 kg
- Installed power: 2,5 kW
- Power: 220V/60Hz 3Ph - 380V/50Hz 3Ph
- Die size: Ø 109 mm
