Fresh pasta machine PS 60

•
•
•
•
• Fan

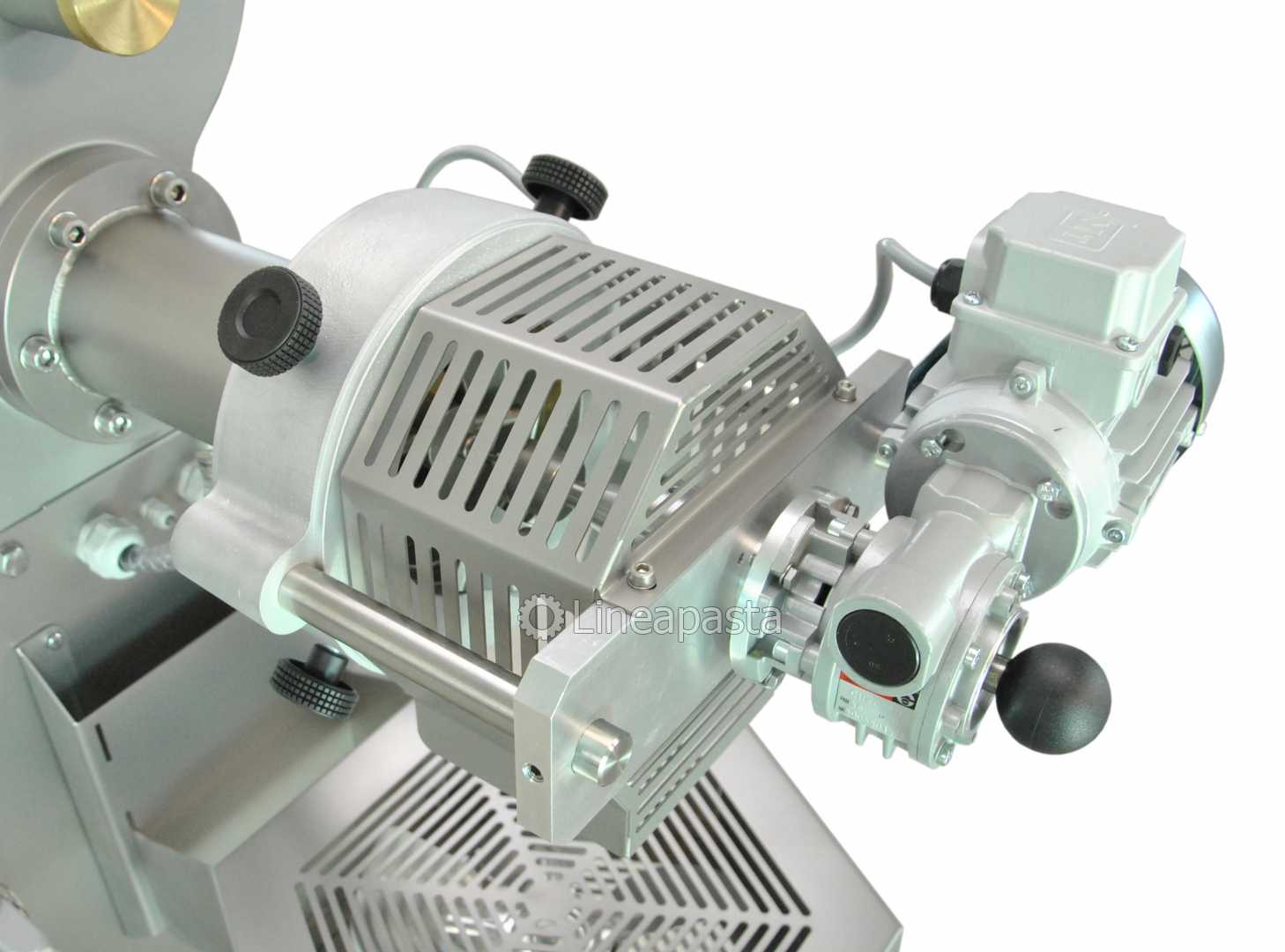

• Short cut pasta knife
•
•
•

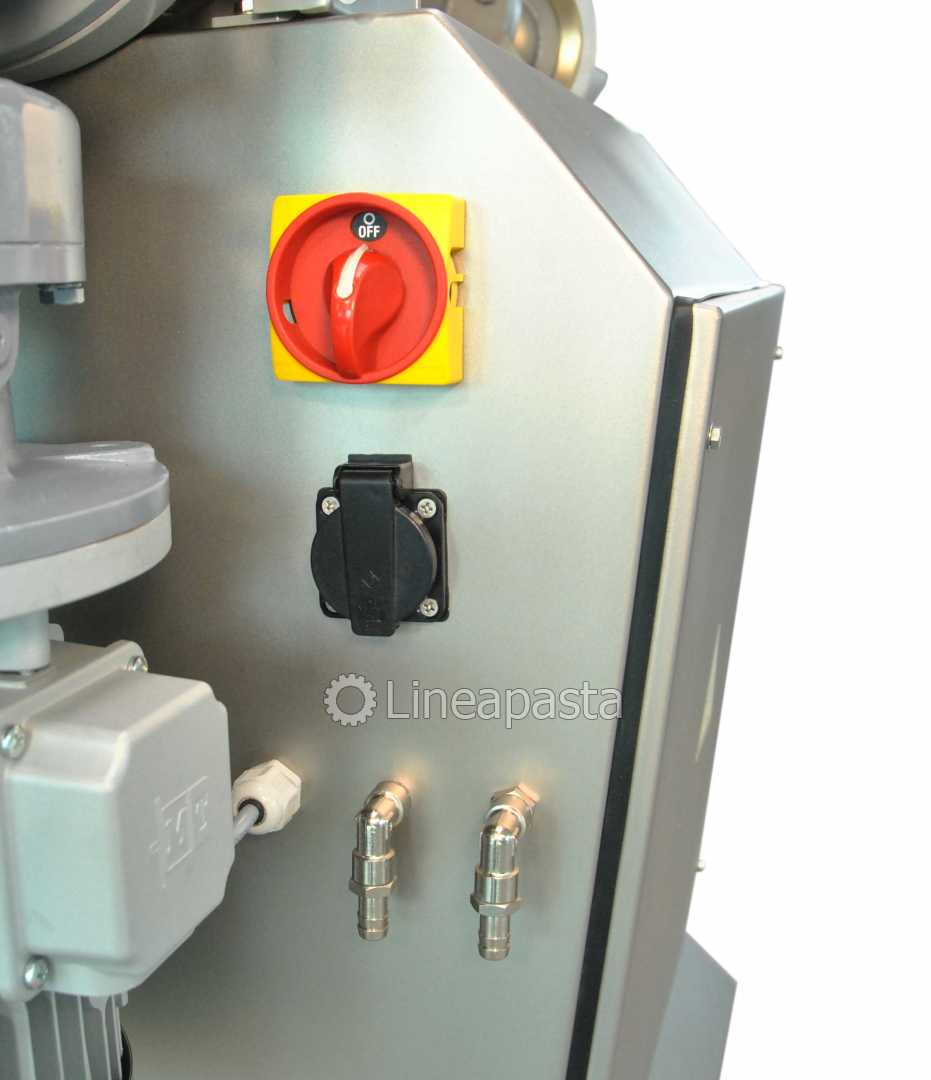

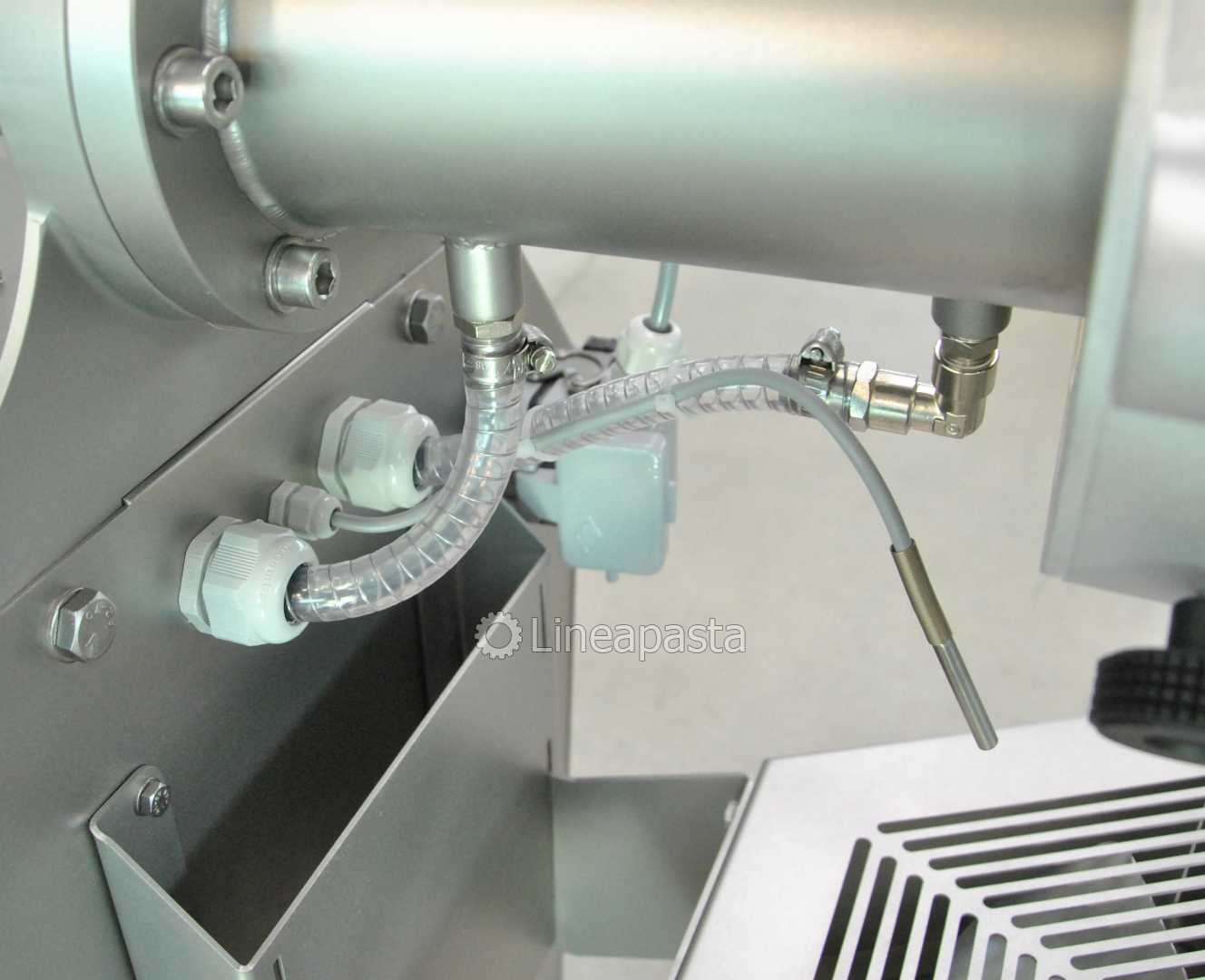

• Water cooling system

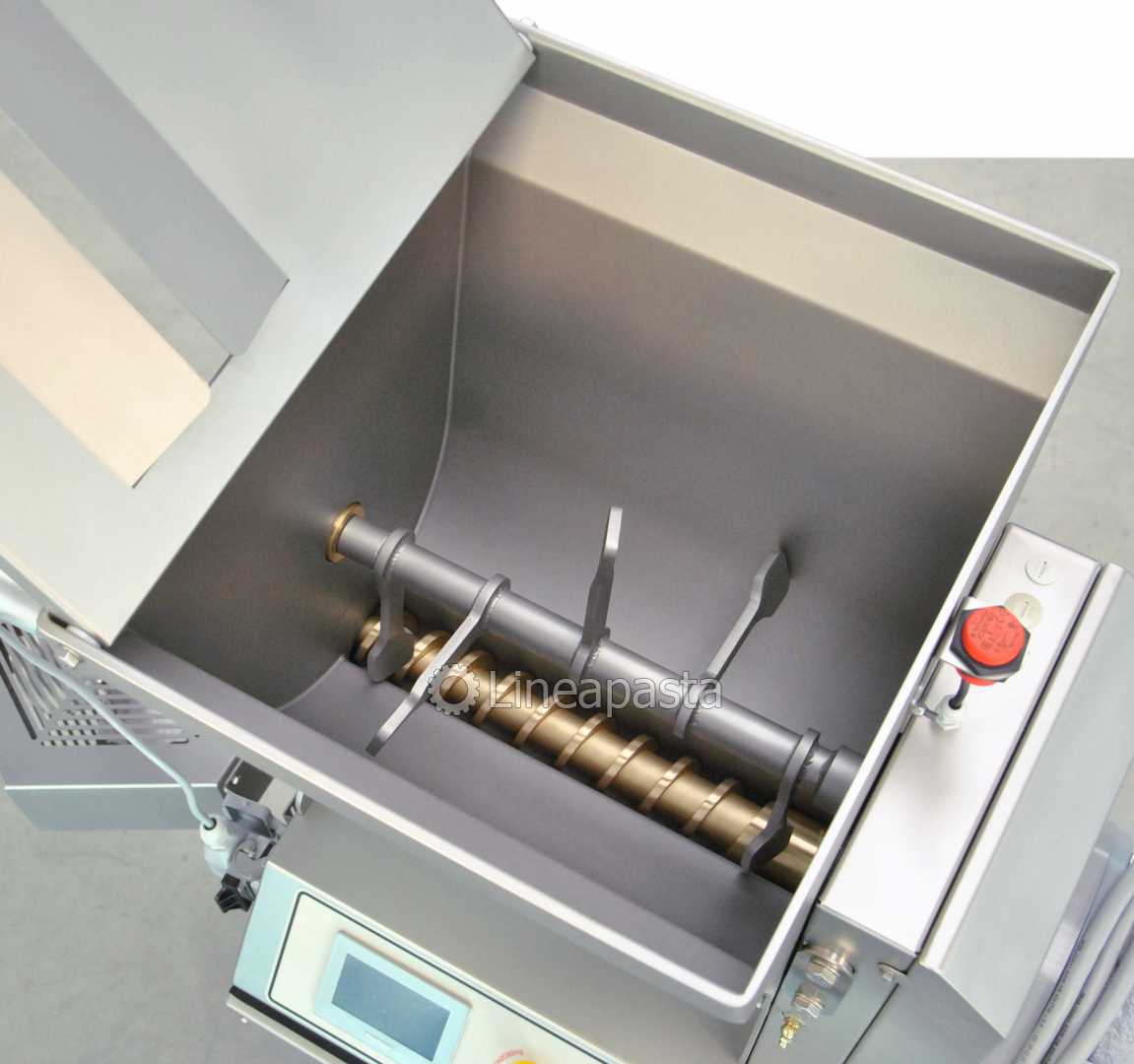

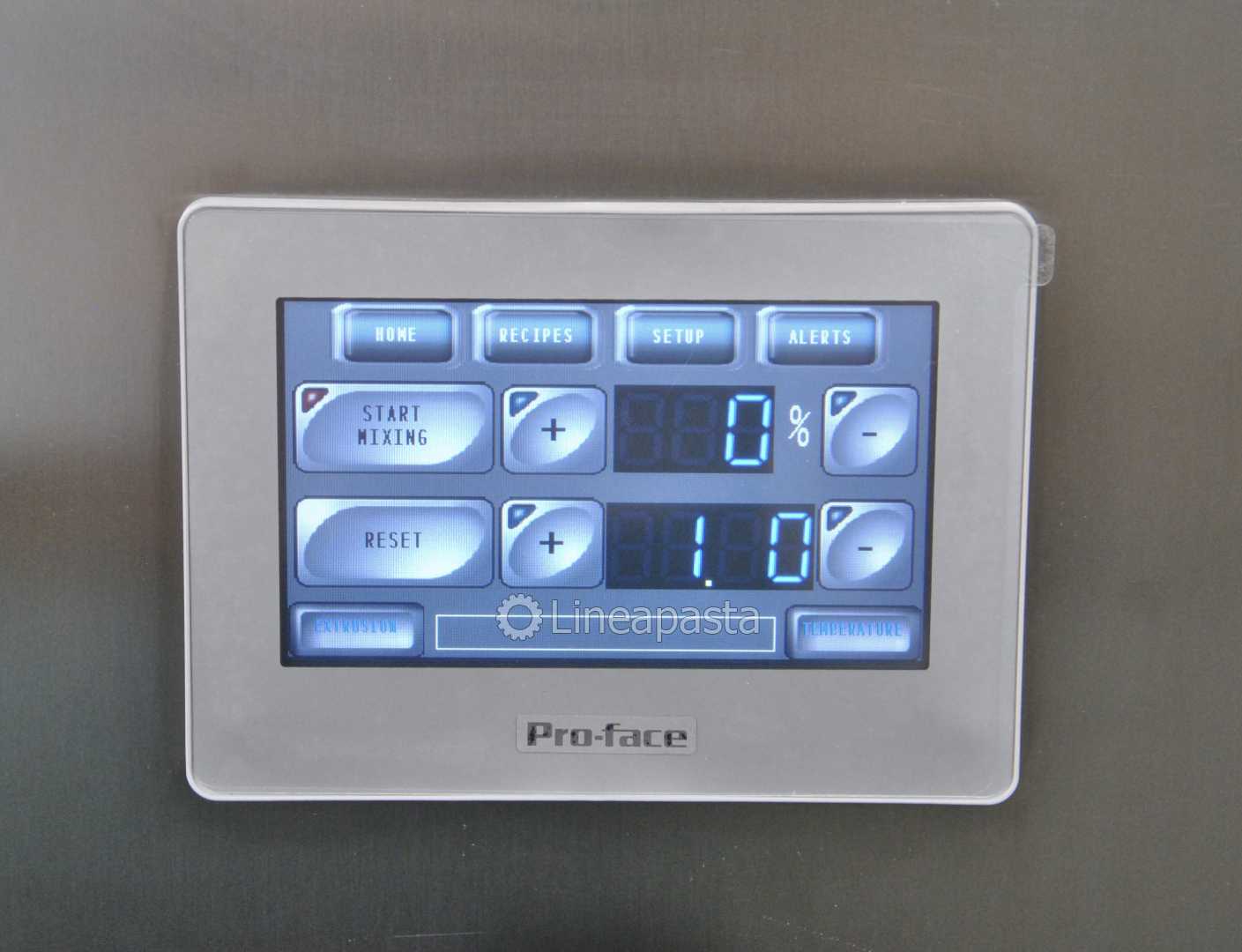

• Mixing adjustment

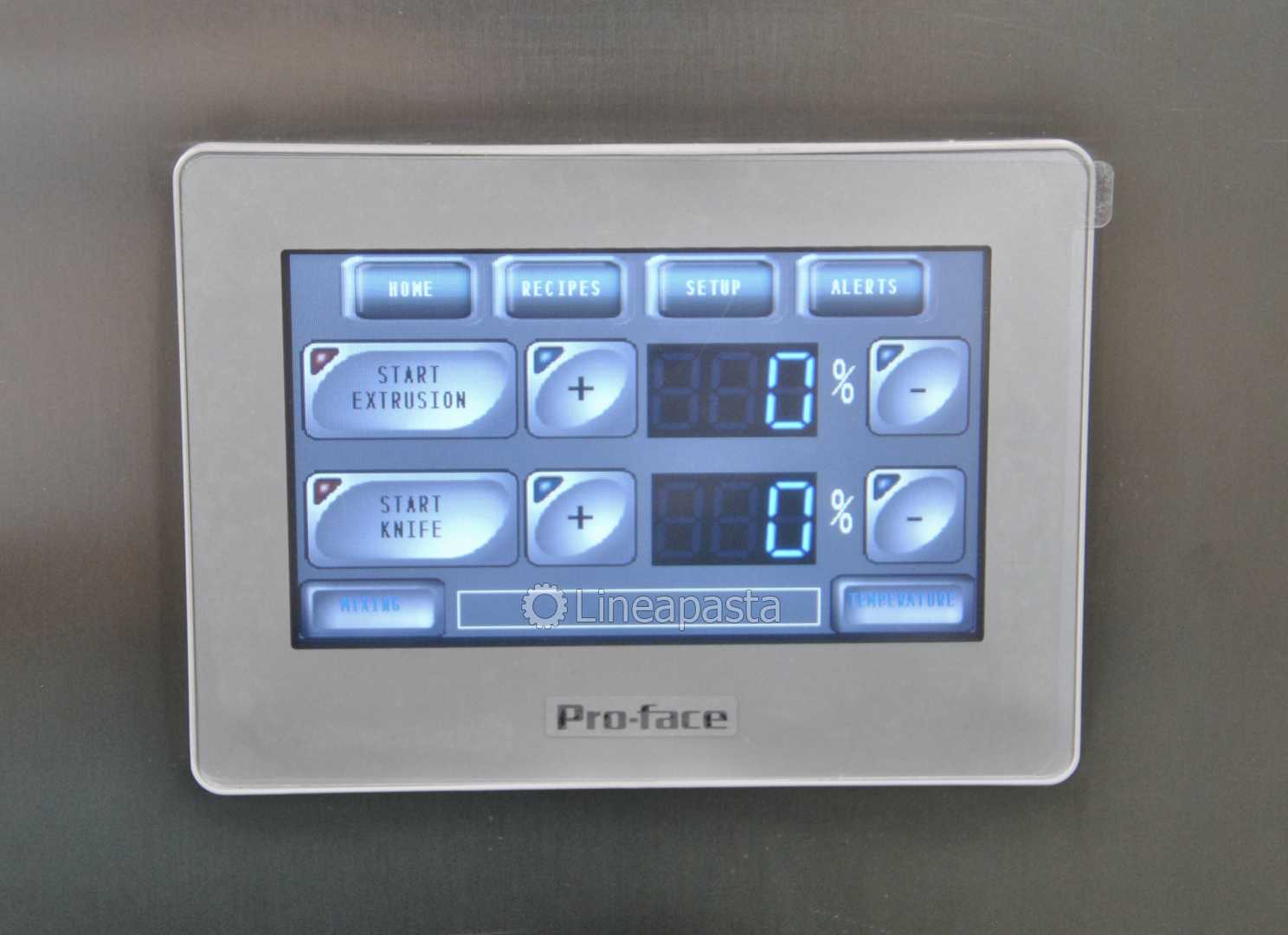

• Extrusion and knife speed adjustment

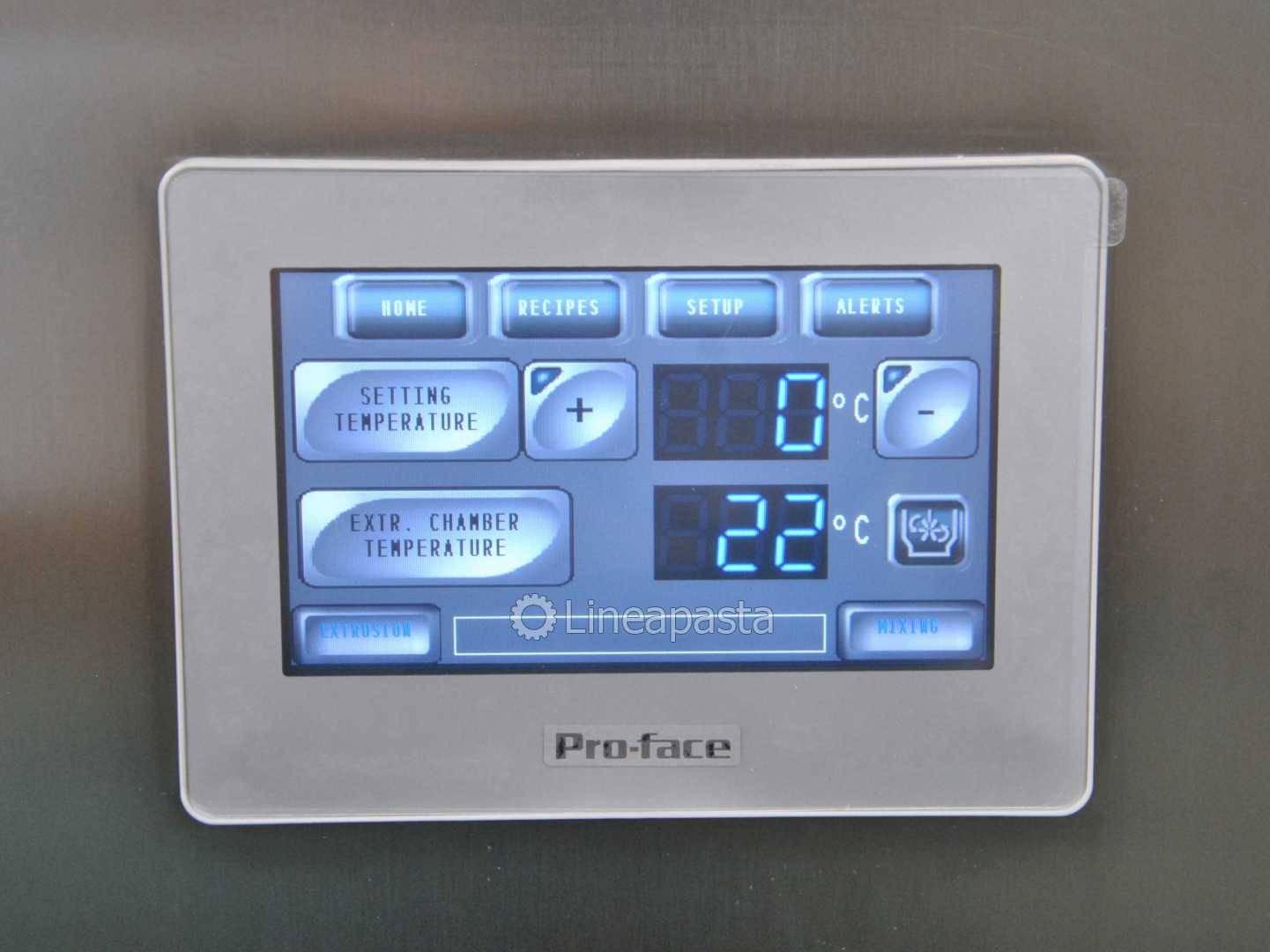

• Temperature adjustment of the extrusion cylinder
• Included recipe book

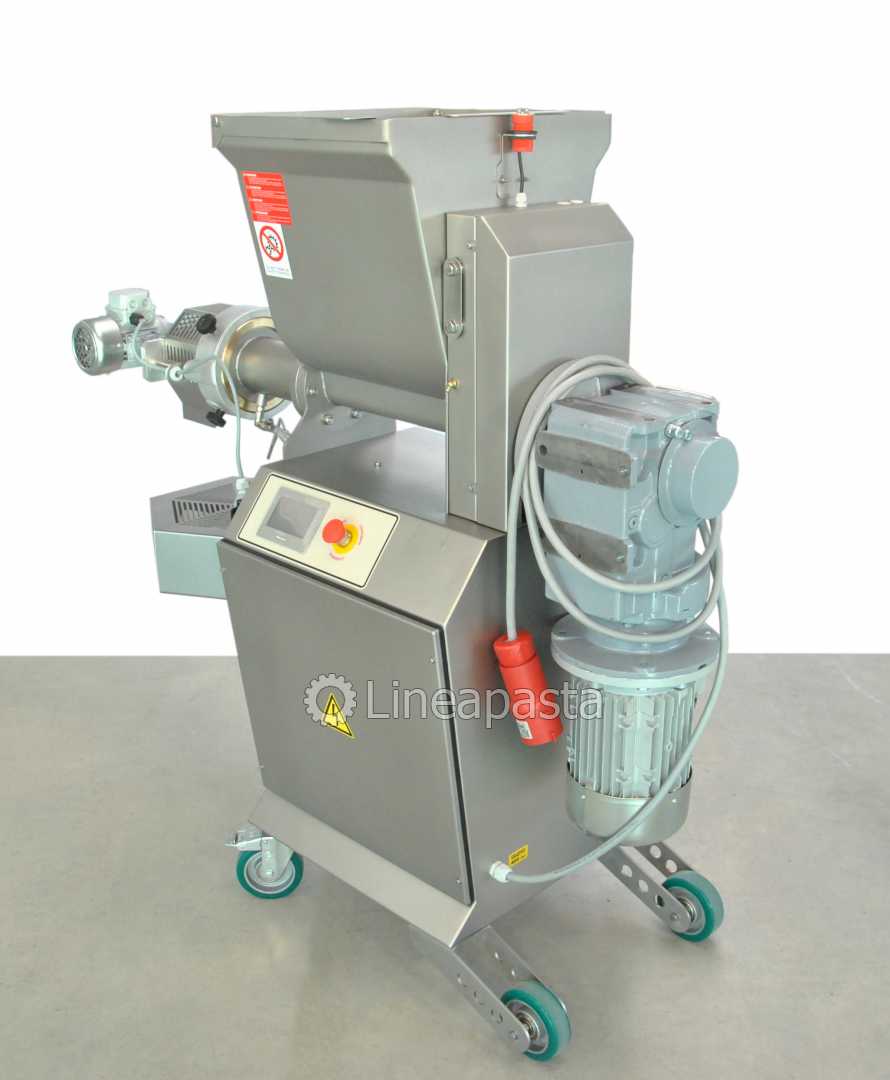

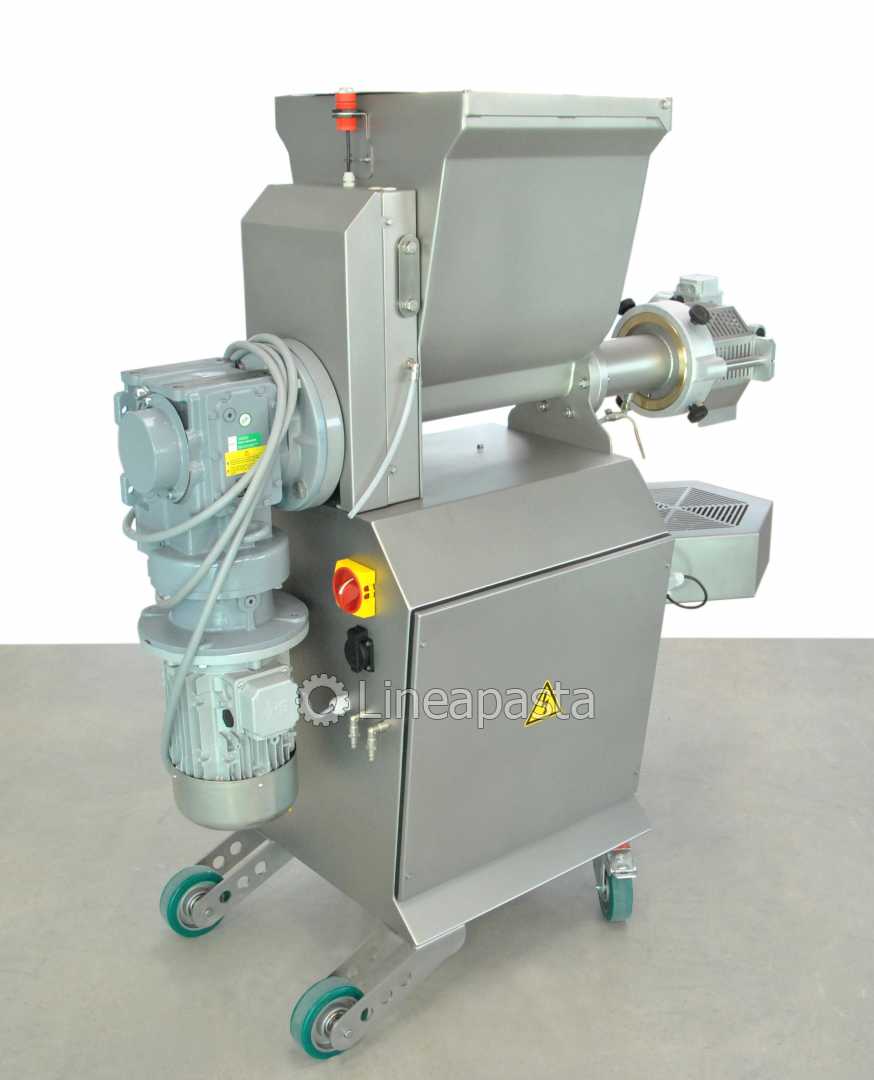

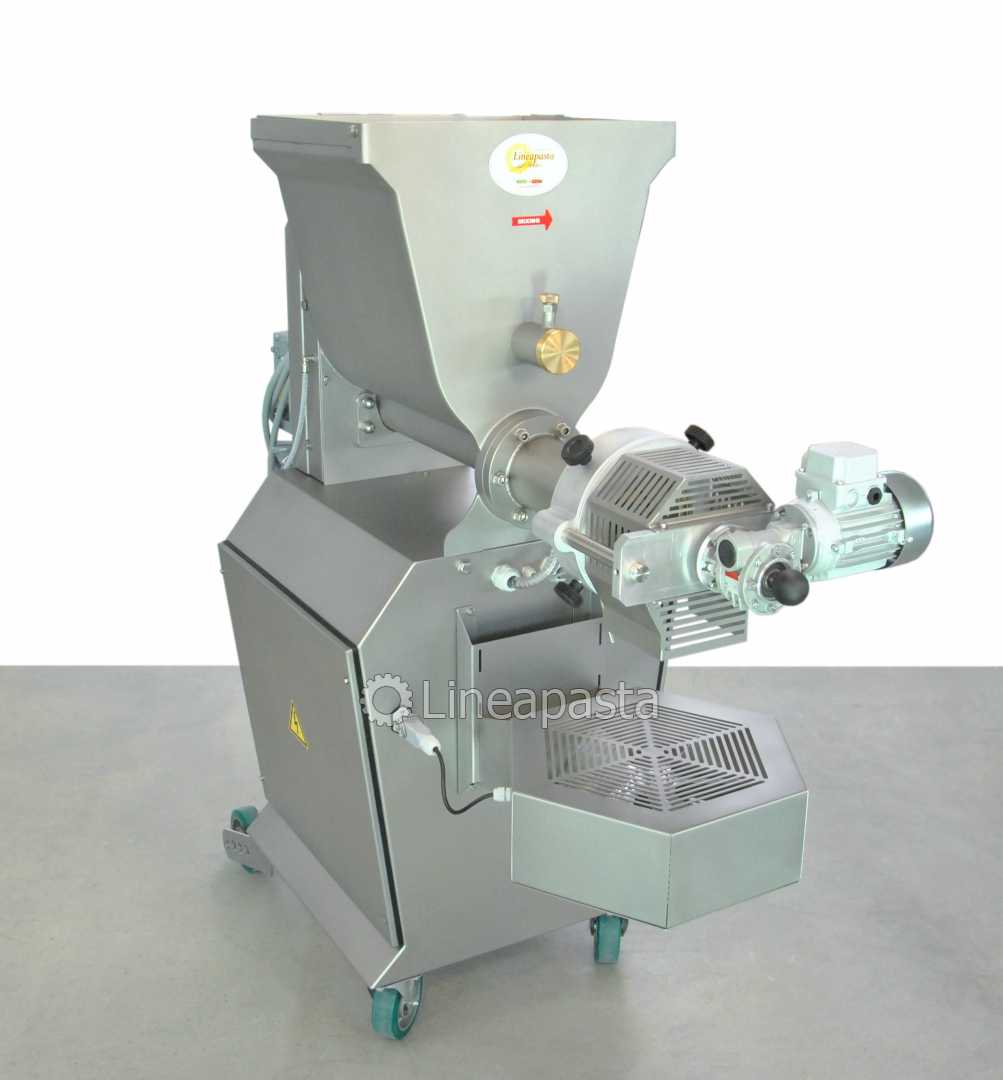

The PS 60 pasta machine is a fresh pasta machine ideal for industrial production built entirely in Aisi 304 stainless steel and mounted on swivel wheels, which allows easy repositionings. It is equipped with a kneading vat with a capacity of 12 kg, and produces 60 kg/h. The electronic timed rotary knife with variable speed allows easy production of short pasta. The PS 60 press is complete with a water cooling system that allows you to produce for many consecutive hours, without stopping the machine and wait for the extrusion cylinder to cool and it is also equipped with a fan for the first drying of the pasta. The machine is equipped with a touch screen control system with the ability to load and customize recipes according to your production needs, customizing the extrusion speed, the knife speed and the temperature of the extrusion cylinder.

Please note that the electronic pasta cutter for short pasta cannot be used on some dies: special shapes that require a clean cut with the scraper or shapes that have a central extrusion insert.

Lineapasta provides, together with the machines and only to its customers, a user guide together with a pasta recipe book in paper format, to be used with our professional machines, created by our pasta technician.


TECHNICAL FEATURES:

- Electronic rotary knife for short pasta
- Double speed motor

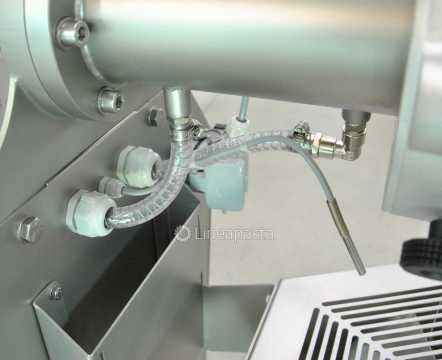

- Water cooling system

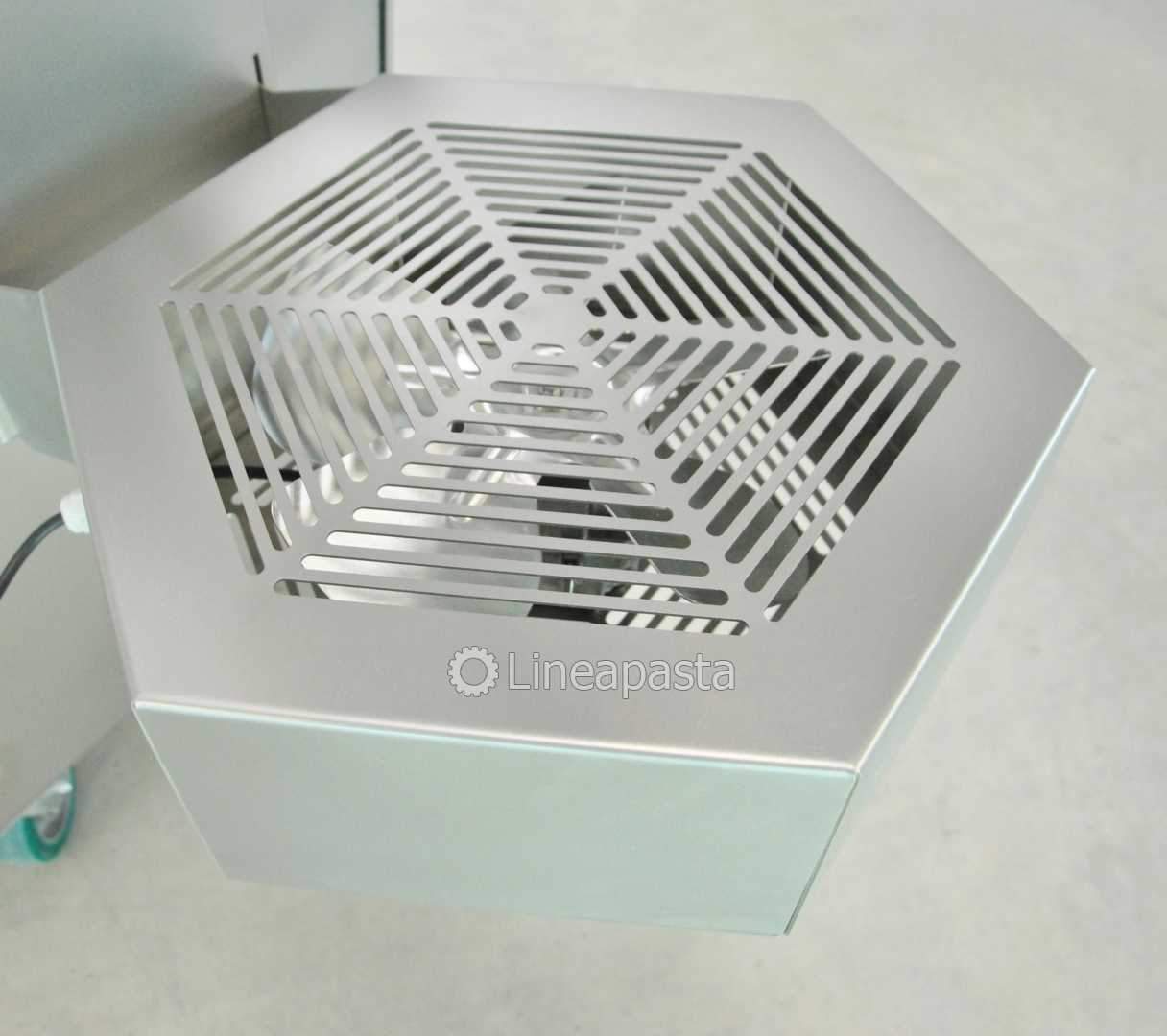

- Fan for first drying
- Perforated pasta tray
- Key for brass ring nut

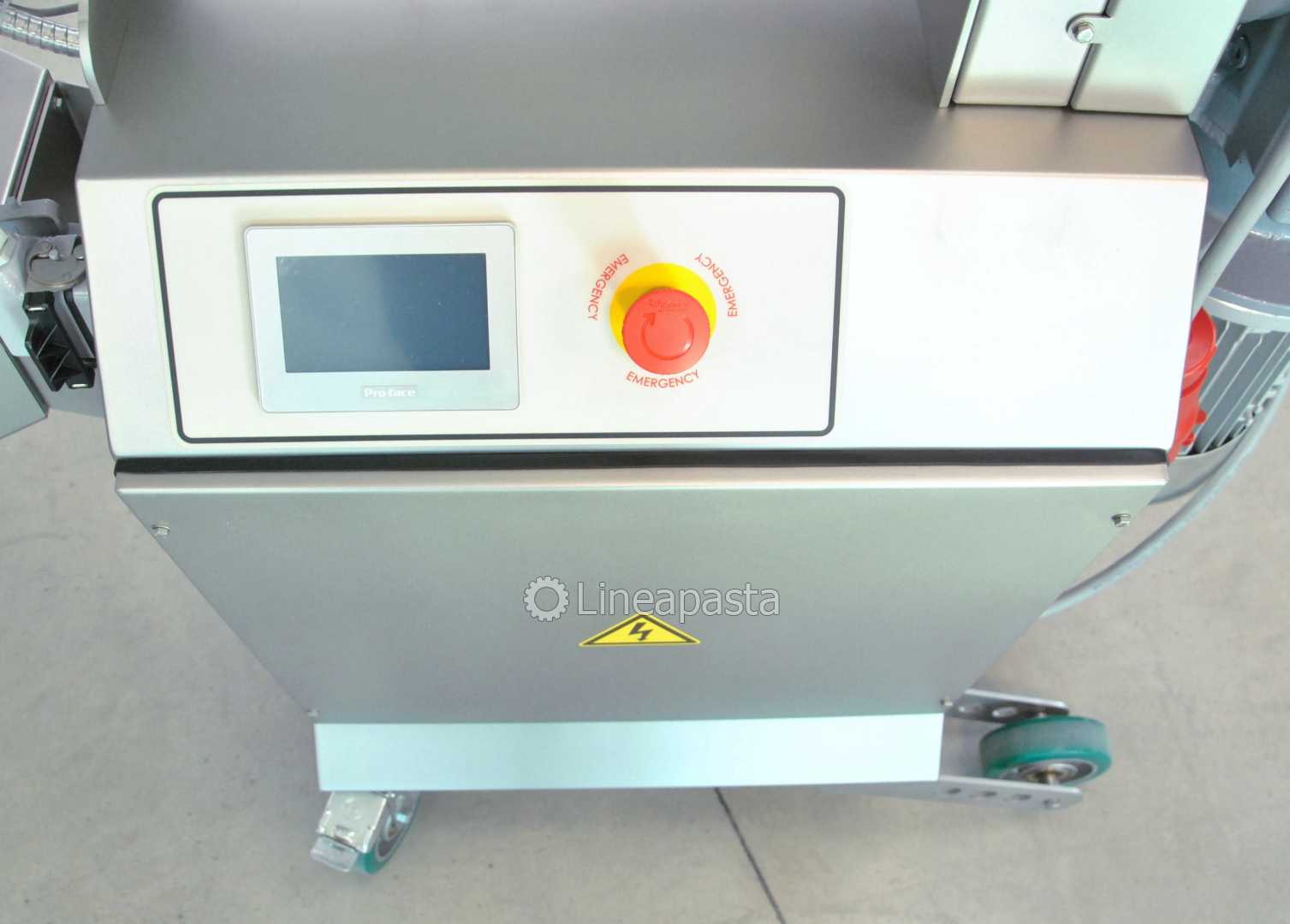

- Digital touch screen control panel
- Variable extrusion speed

OPTIONAL ACCESSORIES:

- Dies in brass/bronze alloy (with/without Teflon inserts) for the production of different pasta shapes
- Adjustable metal die for pasta sheet
- Penne kit in metal (with/without Teflon inserts)
- Perforated pasta tray

TECHNICAL DATA:

- Power: 220V/60Hz 3Ph - 380V/50Hz 3Ph
- Extrusion speed: 60 kg/h
- Productivity: 30 kg/h
- Vat capacity: 15 kg
- Machine size: cm 130x56x140h
- Machine weight: 240 kg
- Die size: Ø 139 mm
